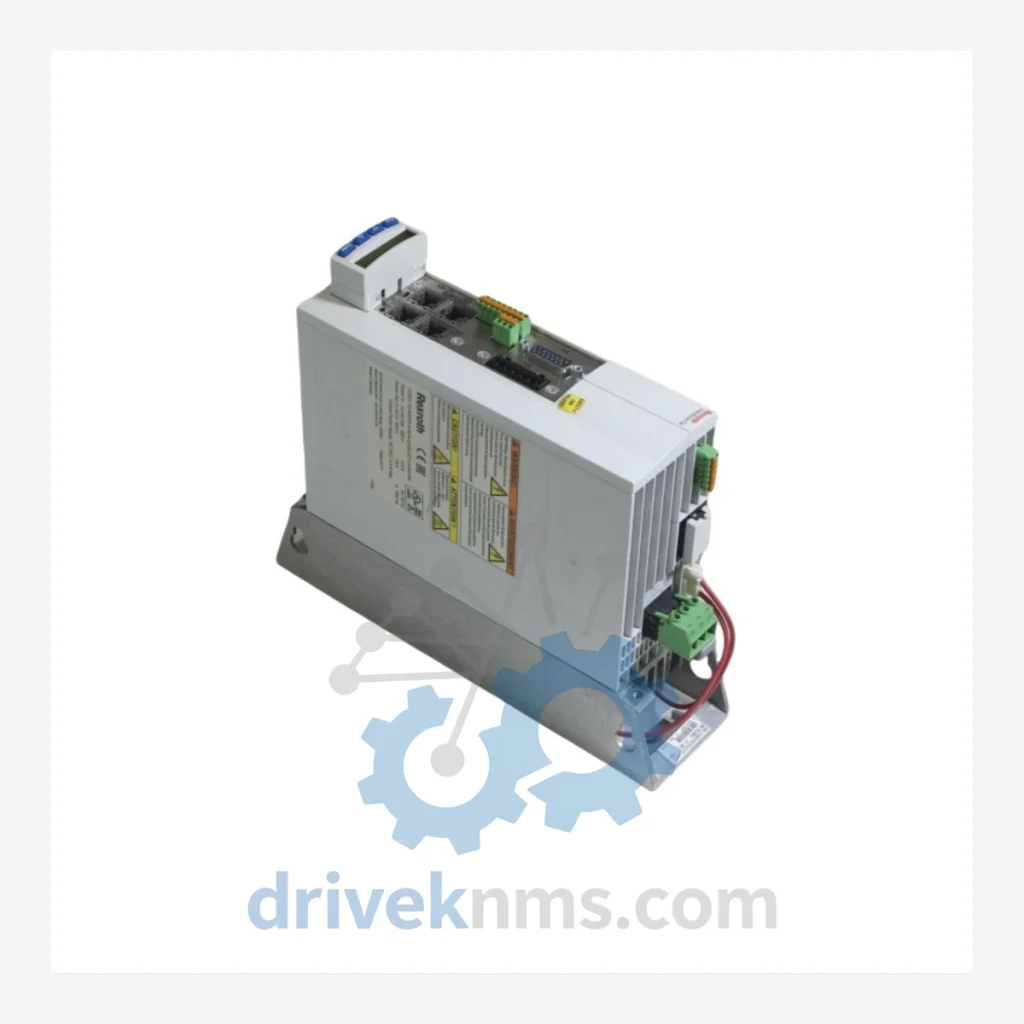

Bosch Rexroth HCS01.1E-W0018-A-03-E-S3-EC-NN-NN-NN-FW Servo Drive – Obsolete IndraDrive Cs Spare Part

Technical Dossier

Product Details And Specifications

Bosch Rexroth HCS01.1E-W0018-A-03-E-S3-EC-NN-NN-NN-FW Servo Drive – Obsolete IndraDrive Cs Spare Part

When a servo drive fails on a production line built around Bosch Rexroth IndraDrive Cs architecture, the decision tree narrows fast. A full system migration — new drives, new controllers, new wiring, new commissioning, revalidation, and lost production time — routinely costs manufacturers between $500,000 and several million USD. That calculation does not include the engineering hours, the retraining, or the regulatory re-approval that some industries require. The HCS01.1E-W0018-A-03-E-S3-EC-NN-NN-NN-FW is a compact, single-axis servo drive from the IndraDrive Cs family. Bosch Rexroth has discontinued this series. Replacement units are no longer available through authorized distribution channels. DriveKNMS maintains a limited physical inventory of this part, sourced through controlled industrial channels. If your line depends on it, the time to act is before the next failure, not after.

Technical Specifications

Note: Electrical parameters are provided based on published Bosch Rexroth IndraDrive Cs documentation. Any parameters not listed here have not been independently verified and are intentionally omitted to preserve data integrity.

Solving the Discontinued Hardware Crisis

The IndraDrive Cs platform was widely deployed in precision manufacturing, packaging machinery, semiconductor handling, and medical device production lines throughout the 2000s and 2010s. Its SERCOS III communication backbone made it a preferred choice for tight multi-axis synchronization. That same tight integration is now the core problem: the HCS01 drives are not interchangeable with current-generation IndraDrive Mi or IndraDrive C hardware without significant re-engineering of the control topology.

Factory managers facing a failed HCS01.1E-W0018-A-03-E-S3-EC-NN-NN-NN-FW have three realistic options. First, source a verified replacement unit — the only path that keeps the line running without capital expenditure. Second, undertake a partial retrofit of the affected axis, which requires new cabling, parameter migration, and motion program adjustment, typically 3–6 weeks of engineering time. Third, execute a full system modernization, which is the most disruptive and expensive path and is rarely justified by a single drive failure.

For plants running 10 or more IndraDrive Cs axes, maintaining a strategic spare inventory of two to three HCS01 units per critical axis is the lowest-cost risk mitigation available. The cost of a spare drive is a fraction of one hour of unplanned downtime on a high-throughput line. This is not a procurement preference — it is an asset protection decision.

How to extend your IndraDrive Cs system life by 5–10 years:

• Spare parts pre-positioning: Identify the three to five drive variants most frequently used across your installed base. Secure at least one verified spare per variant before market availability drops further. Obsolete part availability decreases non-linearly — units that exist today may not exist in 18 months.
• Firmware version control: Document the exact firmware version running on each active drive. When installing a replacement unit, firmware must match or be compatible with the existing IndraMotion controller project. Mismatched firmware versions are a leading cause of commissioning failures on legacy systems.
• Preventive capacitor management: DC bus electrolytic capacitors in servo drives have a finite service life, typically 7–10 years under normal thermal conditions. Drives that have been in storage or light-duty service may have capacitors that require a controlled re-forming procedure before full-load operation. This is a standard step in our QA process.
• Environmental monitoring: IndraDrive Cs drives are sensitive to humidity ingress and particulate contamination. Sealing control cabinet penetrations and maintaining positive-pressure filtered airflow extends drive service life measurably.
• Maintenance contracts over replacement contracts: For plants with 5+ years of remaining production horizon on existing equipment, a structured spare parts agreement with a specialized supplier is consistently more cost-effective than a system replacement project.

Condition & Reliability Assurance

Sourcing obsolete servo drives from unverified channels carries real risk. A drive that fails on arrival, or worse, fails after 90 days in service, costs more than the unit itself. DriveKNMS applies a 5-step inspection protocol to every HCS01 unit before it leaves our facility.

1. Visual and mechanical inspection: Full external examination for physical damage, connector pin condition, and housing integrity. Corroded or bent pins on the SERCOS III or motor feedback connectors are a disqualifying defect.
2. Electrolytic capacitor assessment: DC bus capacitors are tested for capacitance retention and equivalent series resistance (ESR). Units showing capacitor degradation beyond acceptable thresholds are either reconditioned through a controlled re-forming cycle or rejected.
3. Firmware version verification: The firmware version is read and documented. This information is provided to the buyer so that compatibility with the target control system can be confirmed before installation.
4. Power-on functional test: The drive is energized and basic drive functions are verified. Fault code history is cleared and documented.
5. Final documentation: Each unit ships with a condition report noting inspection findings, firmware version, and any observations relevant to installation.

Key Features for System Maintenance

• Drop-in replacement: The HCS01.1E-W0018-A-03-E-S3-EC-NN-NN-NN-FW is a direct mechanical and electrical replacement for the same part number in any existing IndraDrive Cs installation. No wiring changes, no hardware modifications.
• No reprogramming required: Motion programs and axis parameters reside in the IndraMotion controller, not in the drive. Replacing the drive does not require rewriting or re-commissioning the motion application, provided firmware compatibility is confirmed.
• Avoids engineering reconstruction costs: A retrofit to a different drive platform requires axis parameter migration, motor feedback cable changes, and motion program validation. For a single axis, this is typically 40–120 engineering hours. A verified replacement unit eliminates that cost entirely.
• Supports multi-axis synchronization integrity: In SERCOS III topologies, all drives on a ring must be compatible. Introducing a different drive generation into an existing ring is not straightforward. A same-part replacement preserves ring integrity without topology changes.

FAQ

What warranty applies to this unit?
DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Warranty claims require the unit to be returned in its original packaging with the condition report included.

How do I confirm this is a genuine or quality-refurbished unit, not a counterfeit?
All units are inspected against Bosch Rexroth hardware documentation. Firmware is read directly from the drive and documented. We do not source from markets known for counterfeit industrial electronics. The condition report provided with each unit includes inspection findings that can be reviewed before installation.

Should I buy more than one unit?
For any production line where this drive is a single point of failure, yes. The lead time to source a second unit after the first one is installed is unpredictable. Obsolete part availability is not stable. Purchasing a verified spare at the same time as the operational replacement is the standard practice for asset protection in legacy automation environments.

Can you source other HCS01 variants?
Yes. DriveKNMS specializes in hard-to-find Bosch Rexroth IndraDrive Cs variants. Contact us with your full part number and we will confirm availability.
