When an industrial controller stops communicating, the fastest-looking decision is often the least reliable one: replace the CPU and hope the machine returns. ABB AC500 installations show why a controller swap needs evidence. The fault may be in the Ethernet path, the application memory, the power supply, the fieldbus interface or a configuration that was never backed up outside the engineering laptop.
Modernization programs are encouraging plants to connect more assets and standardize data, but the production line still depends on the controller that has been running for years. A spare plan should therefore protect the live system first. It should make a replacement repeatable, preserve the application and verify the signals that matter before the maintenance window closes.
Record the AC500 baseline while the line is healthy

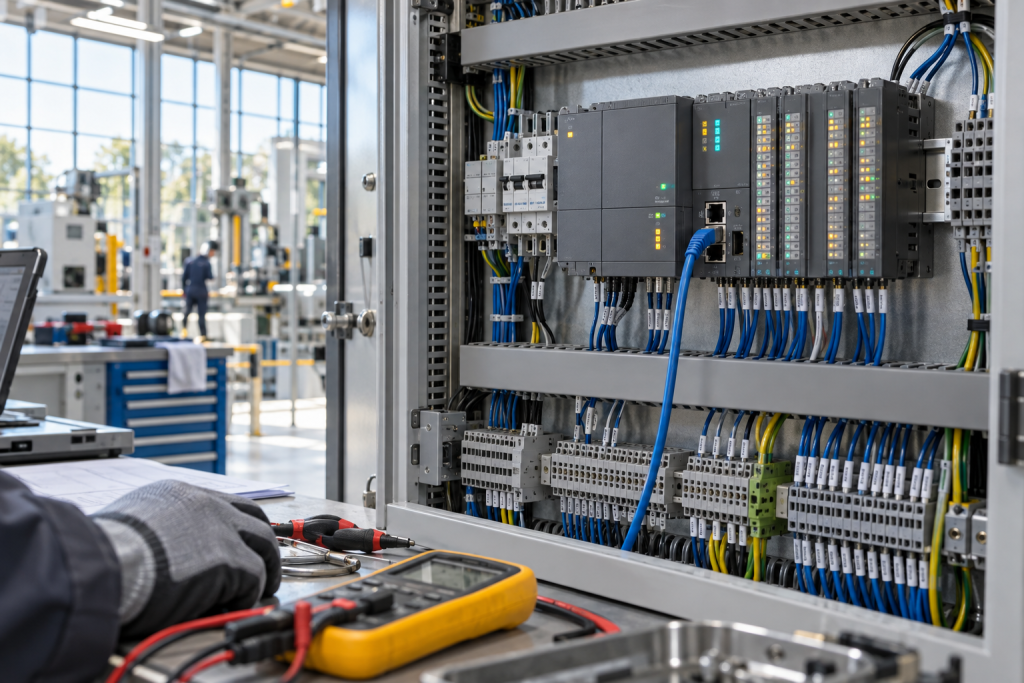

Start with a controller baseline. Record the exact CPU part number, hardware revision, firmware, Ethernet address, node name, attached expansion modules and the power supply arrangement. Export the project from the approved engineering environment and store it with a checksum and date. Capture diagnostic pages, communication settings and the normal startup time. A photograph of the cabinet should include the module order and the terminal strips, not just the front label.
This baseline is valuable because AC500 failures are not always complete. A machine may keep running while an Ethernet port drops packets, a memory component becomes unreliable or a fieldbus device reports intermittent timeouts. Those symptoms can be mistaken for a network problem until a replacement controller is installed with incomplete parameters.
Check the three layers of a controller fault
Layer one is power. Measure the 24 VDC supply at the controller terminals during a motor start or valve movement. Look for brief dips, loose conductors and heat at the fuse or distribution block. Layer two is communications. Check link status, switch logs, cable shielding, duplicate addresses and the time of the last clean connection. Layer three is application behavior. Confirm whether the controller retains the program, whether retentive variables are intact and whether the line requires a controlled restart.
The ABB AC500 PM564-TP-ETH CPU module should be matched against this baseline rather than ordered from a family name alone. The buyer should confirm the Ethernet variant, terminal arrangement, firmware expectations and the project restore process. A spare that is electrically compatible but cannot be commissioned with the existing application is not an outage-ready spare.
Do not overlook the control board around the CPU
Some failures that appear to be a controller fault are caused by the surrounding control or communication board. Inspect the cabinet for contamination, vibration, loose backplane contacts and cable strain. If the controller supervises drives or remote I/O, document the sequence in which those devices should return after a power cycle. A board-level replacement can change timing, diagnostics or the way an operator station sees the equipment.
For a recovery plan, the ABB NMFC03 multifunction controller is a reminder that the application boundary may include more than one processor or control board. Verify what the module actually does in the installation, what data it exchanges and which parameter file belongs to it. Mark every dependency in the cabinet record.
Use a controlled swap procedure
A good swap procedure is written before the outage. It identifies who has authority to stop the machine, how the existing configuration is protected, which terminals are isolated, how the replacement is inspected and how the first restart is verified. The procedure should include a rollback point. If the new module does not behave as expected, the team must know how to return to the original state without losing evidence.
For critical lines, test the spare before it reaches the cabinet. Confirm power-up, communications, diagnostics and the ability to load the approved application in a bench environment. Record the serial number and test date. When a spare is repaired or used, ask for the condition statement and the scope of the test. “Tested” should identify what was tested.
Questions maintenance teams usually ask
Can we replace an ABB AC500 CPU without a project backup?
It is technically possible to install hardware, but it is not a controlled recovery. Without the approved project, parameters and retentive-data expectations, the restart risk is high.
How do we separate a controller fault from a network fault?
Compare switch logs, link status, packet behavior and the controller diagnostics. Test the controller in a known-good network path before deciding that the CPU is defective.
What should be tested on a used AC500 spare?
At minimum, verify power-up, diagnostic state, communication ports, firmware or revision, connector condition and the ability to load the approved application or test configuration.
What makes an AC500 spare outage-ready?
A correct part number, documented test evidence, preserved configuration, clear installation procedure and a defined rollback path. Stocking the module alone does not provide those controls.
Make the purchase support the recovery
The purpose of a controller spare is to shorten uncertainty. A strong RFQ includes the exact module, application role, known symptoms, environmental condition, required quantity, acceptable condition and delivery destination. It also asks the supplier to identify any revision or configuration limitations before the part ships.
