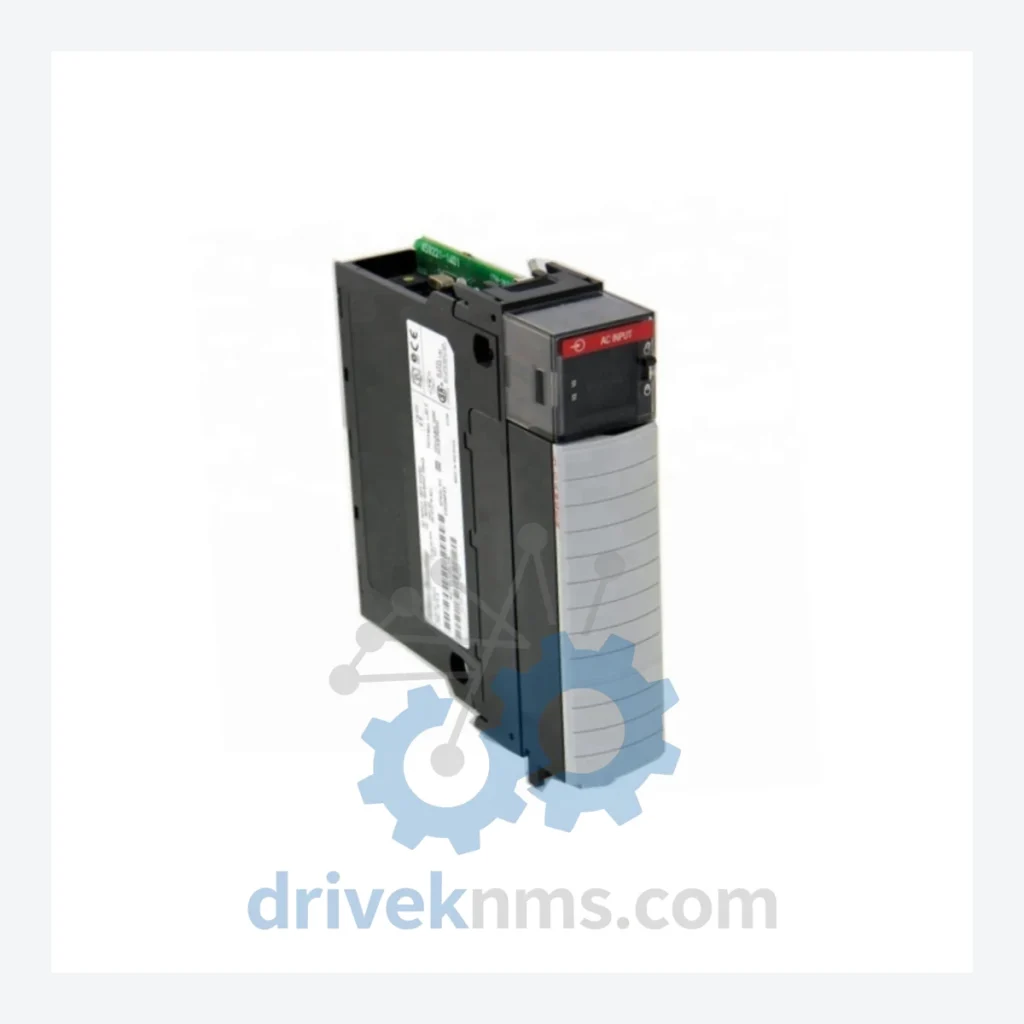

Allen-Bradley ControlLogix Modules: 1756-IF16

Technical Dossier

Product Details And Specifications

Allen-Bradley ControlLogix Series Technical Notes

The Allen-Bradley ControlLogix platform (1756 series) is the dominant distributed control architecture deployed across global heavy industry, including petrochemical refineries, nuclear power generation facilities, offshore oil & gas platforms, pulp and paper mills, and large-scale water treatment infrastructure. The 1756-IF16 is a 16-channel, single-ended analog input module within this platform, designed for high-density signal acquisition in process-critical environments. ControlLogix installations number in the hundreds of thousands of racks worldwide, making the 1756 backplane ecosystem one of the most widely maintained industrial automation platforms in service today. The longevity of this architecture — spanning from its introduction in the mid-1990s through current production — means that spare parts sourcing, lifecycle management, and obsolescence planning are active operational requirements for plant engineers and maintenance teams globally.

The Evolution of ControlLogix Architecture

The ControlLogix platform was introduced by Rockwell Automation in 1997 as a successor to the PLC-5 and SLC 500 families. Its defining architectural innovation was the producer/consumer communication model over the ControlNet and later EtherNet/IP backplane, enabling deterministic, peer-to-peer data exchange without a central polling master. The 1756 chassis accepts any mix of controller, I/O, communication, and motion modules, providing a modular, scalable topology that remains backward-compatible across multiple hardware generations.

Early ControlLogix I/O modules (Series A, B) used 12-bit analog resolution and supported HART pass-through on select models. Subsequent series revisions (C, D) introduced 16-bit resolution, improved common-mode rejection, and extended operating temperature ranges. The 1756-IF16 specifically provides 16 single-ended or 8 differential analog input channels at 16-bit resolution, with a ±10V, 0–10V, 0–20mA, or 4–20mA input range selectable per channel group. Compatibility across chassis generations (1756-A4, A7, A10, A13, A17) is maintained at the backplane level, though firmware alignment between the controller (Logix5000) and I/O module series must be verified during replacement.

Migration paths from legacy PLC-5 analog I/O (1771-IFE, 1771-IFMS) to ControlLogix are well-documented via Rockwell's migration tools, though tag remapping and ladder-to-structured-text conversion remain engineering tasks. For installations where ControlLogix itself is approaching end-of-life on specific module variants, Rockwell's PlantPAx DCS and the newer 5380/5480 CompactLogix families represent the forward migration targets, though direct 1756 backplane compatibility is not maintained.

ControlLogix Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed modules within the Allen-Bradley 1756 ControlLogix platform. Modules are classified by functional category.

Analog Input Modules

• 1756-IF16: 16-ch single-ended analog input, 16-bit, ±10V/0–20mA/4–20mA selectable
• 1756-IF8: 8-ch single-ended analog input, 16-bit, voltage/current configurable
• 1756-IF6I: 6-ch isolated analog input, 16-bit, per-channel isolation, HART-ready
• 1756-IF6CIS: 6-ch isolated current/voltage input with HART pass-through support
• 1756-IF8IH: 8-ch isolated analog input with integrated HART multiplexer

Analog Output Modules

• 1756-OF8: 8-ch analog output, 16-bit, voltage and current output modes
• 1756-OF4: 4-ch analog output, 16-bit, ±10V / 0–20mA / 4–20mA
• 1756-OF6CI: 6-ch isolated current output, 16-bit, per-channel isolation
• 1756-OF6VI: 6-ch isolated voltage output, 16-bit, per-channel isolation

Digital Input Modules

• 1756-IB16: 16-ch 24VDC digital input, sink/source compatible
• 1756-IB32: 32-ch 24VDC digital input, high-density, standard backplane
• 1756-IA16: 16-ch 120VAC digital input, isolated groups
• 1756-IA32: 32-ch 120VAC digital input, high-density

Digital Output Modules

• 1756-OB16E: 16-ch 24VDC electronic fused output, diagnostics per channel
• 1756-OB32: 32-ch 24VDC digital output, high-density sourcing
• 1756-OA16: 16-ch 120/240VAC triac output, zero-crossing switching

Controller Modules

• 1756-L71: ControlLogix 5570 controller, 2MB memory, standard EtherNet/IP
• 1756-L73: ControlLogix 5570 controller, 8MB memory, high-capacity applications
• 1756-L83E: ControlLogix 5580 controller, 20MB, dual EtherNet/IP ports, CIP Security

Communication Adapter Modules

• 1756-EN2T: EtherNet/IP communication module, single port, 100Mbps
• 1756-EN2TR: EtherNet/IP module with dual-port DLR (Device Level Ring) topology
• 1756-CN2: ControlNet communication module, coax, redundant media
• 1756-DNB: DeviceNet scanner module, master node for DeviceNet networks

Power Supply Modules

• 1756-PA72: 120/240VAC input power supply, 10A backplane output
• 1756-PB72: 18–32VDC input power supply, 10A backplane output
• 1756-PA75R: Redundant-capable 120/240VAC power supply for 1756-SXT chassis

Sourcing Hard-to-Find & Obsolete ControlLogix Parts

A significant portion of the installed ControlLogix base operates on module variants that Rockwell Automation has transitioned to end-of-life or RFQ availability review status. Series A and B analog modules, early-generation CN2 ControlNet adapters, and legacy 1756-L6x controllers are no longer manufactured but remain in active service at facilities with 15–25 year plant lifecycles.

DriveKNMS maintains a dedicated inventory of tested, pull-from-service, and new-surplus 1756 series modules to support these long-cycle maintenance requirements. For the 1756-IF16 specifically, DriveKNMS stocks multiple series revisions and can cross-reference firmware compatibility with the customer's existing controller revision prior to shipment. All modules are sourced through verified industrial surplus channels and subject to pre-shipment functional verification.

Quality Control for the ControlLogix Range

ControlLogix analog and communication modules present specific test challenges due to their multi-layer backplane bus architecture and firmware-dependent initialization sequences. DriveKNMS applies the following verification protocol to all 1756 series modules prior to dispatch:

• Backplane communication test: Module is seated in a live 1756 chassis and polled via RSLogix 5000 / Studio 5000 to confirm identity, series, revision, and fault-free status.
• Analog channel calibration check: For I/O modules including the 1756-IF16, all 16 input channels are stimulated with calibrated reference signals across the full input range (0–20mA, 4–20mA, ±10V) and output values are verified against NIST-traceable reference instruments.
• HART pass-through verification: On HART-capable modules (1756-IF6CIS, 1756-IF8IH), HART command 0 (device identification) is executed on each channel to confirm multiplexer integrity.
• Firmware revision logging: Module firmware revision is recorded and provided to the customer to confirm compatibility with the target controller revision prior to installation.
• Visual and mechanical inspection: Backplane connector pins, locking tabs, and module face are inspected for damage, corrosion, or evidence of prior field repair.
