ABB 3HAC11440-1 Axis Robot Manipulator Harness – Obsolete IRB7600 Spare Part

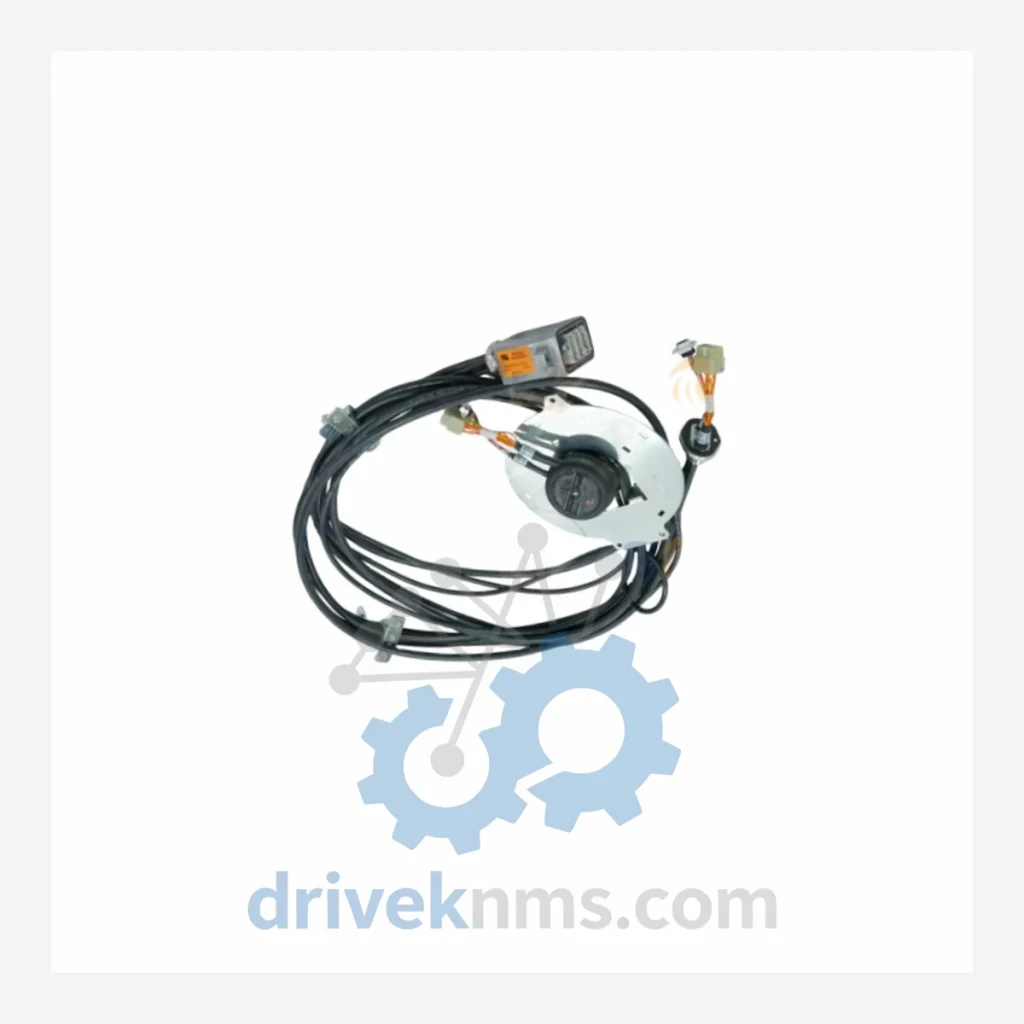

The ABB 3HAC11440-1 is the internal axis wiring harness assembly for the IRB7600 5/6 heavy-payload industrial robot manipulator. The IRB7600 series — rated for payloads up to 500 kg — has been deployed extensively in automotive body-in-white welding lines, foundry tending, press tending, and heavy material handling operations worldwide. When this harness fails or degrades, the entire robot arm is rendered inoperable. A forced migration to a current-generation robot platform — including mechanical integration, re-programming, safety re-certification, and production downtime — routinely costs plant operators USD $200,000–$800,000 per cell. Sourcing a verified replacement harness from DriveKNMS eliminates that cost entirely.

Technical Specifications

Solving the Discontinued Hardware Crisis

The ABB IRB7600 series entered production in the late 1990s and became a standard fixture in high-payload automation cells globally. Many of these installations remain mechanically sound and structurally integrated into production lines that were engineered around the IRB7600's specific reach envelope, payload rating, and floor-mounting footprint. Replacing the robot itself is not a mechanical decision — it is a capital project.

The 3HAC11440-1 harness routes power and signal cables through the manipulator's internal axis structure. Harness degradation is a predictable failure mode in high-cycle environments: insulation fatigue from repeated flexion, connector oxidation from foundry particulate, and heat-induced brittleness in high-ambient-temperature cells. ABB no longer manufactures this part under standard supply channels. Procurement teams that delay sourcing face a binary outcome: locate a verified spare or commit to a full cell replacement project.

DriveKNMS maintains sourced inventory of the 3HAC11440-1 specifically to support plants operating IRB7600 fleets beyond their original design lifecycle. This is not a workaround — it is a structured asset-protection strategy.

Condition & Reliability Assurance

All 3HAC11440-1 units processed by DriveKNMS undergo a structured 5-step inspection protocol before dispatch:

• Step 1 – Visual Inspection: Full harness routing examined for jacket cracking, abrasion wear, and connector housing integrity.
• Step 2 – Connector Pin Audit: Each connector terminal inspected for oxidation, corrosion, and mechanical deformation. Corroded pins are replaced or the unit is rejected.
• Step 3 – Continuity & Insulation Resistance Test: Point-to-point continuity verified across all conductors. Insulation resistance tested to confirm no inter-conductor leakage.
• Step 4 – Firmware / Label Verification: Part number label, revision marking, and any embedded identification verified against ABB documentation references.
• Step 5 – Packaging Integrity: Harness coiled and secured per OEM storage specification to prevent transit-induced stress on connectors and jacket.

Key Features for System Maintenance

• Drop-in replacement: The 3HAC11440-1 installs directly into the IRB7600 5/6 manipulator without mechanical modification.
• No re-programming required: Harness replacement does not affect robot controller parameters, program memory, or calibration data. Post-installation calibration follows standard ABB axis calibration procedure only.
• Avoids engineering re-scoping: Retaining the existing IRB7600 eliminates the need for cell re-layout, new safety fencing geometry, updated risk assessments, and PLC I/O re-mapping that a platform migration would require.
• Lifecycle extension of 5–10 years: Plants that maintain a stock of critical wear components — harnesses, SMB boards, axis computer units — routinely extend IRB7600 operational life well beyond the manufacturer's stated support window. The per-year cost of a spare harness is a fraction of one day of unplanned downtime.
• Supports multi-robot fleet management: Facilities operating multiple IRB7600 units benefit from holding one or two 3HAC11440-1 units as insurance stock, eliminating lead-time risk entirely.

FAQ

Q: What warranty applies to an obsolete part like the 3HAC11440-1?
A: DriveKNMS provides a 90-day functional warranty on all inspected and tested units. Warranty covers verified defects identified during installation under normal operating conditions.

Q: Is this a new or refurbished unit?
A: Stock condition varies. Each unit is individually assessed and classified as New Old Stock (NOS), Tested Serviceable, or Refurbished. Condition classification is confirmed at time of quotation. No unit is dispatched without passing the 5-step inspection protocol above.

Q: How should we manage long-term spare parts for an IRB7600 fleet?
A: For fleets of 3 or more IRB7600 units, the recommended minimum stock position is: 1× 3HAC11440-1 harness, 1× SMB board (3HAC14550-2 or equivalent), and 1× axis computer unit. This covers the three most common failure modes that cause extended downtime. DriveKNMS can assist with a structured spare parts audit on request.

Q: Can you source other IRB7600 spare parts?
A: Yes. DriveKNMS sources a range of IRB7600 components including SMB boards, drive units, axis computers, and mechanical sub-assemblies. Submit your full parts list for a consolidated quotation.
