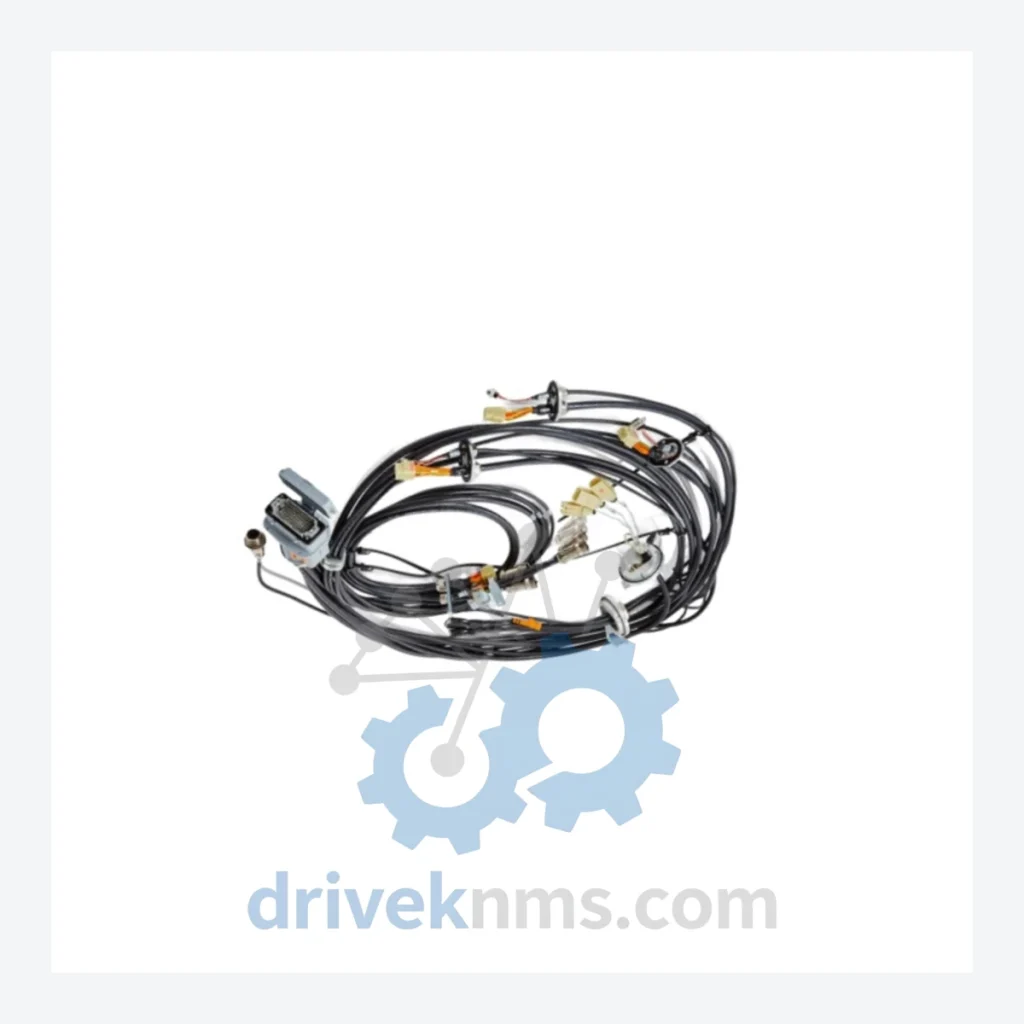

ABB HAC11440-1 Robotics Cable – Obsolete IRB 7600 Spare Part

Technical Dossier

Product Details And Specifications

ABB HAC11440-1 Robotics Cable – Obsolete IRB 7600 Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters (voltage rating, conductor gauge, shielding specification) are not published here to prevent misapplication. Confirm compatibility with your robot serial number before ordering.

Solving the Discontinued Hardware Crisis

The ABB IRB 7600 entered production in the early 2000s and remains in active service across thousands of facilities globally. ABB's standard product lifecycle policy means that mechanical and electrical sub-components — including internal cable harnesses — reach end-of-availability years before the robots themselves are worn out. The HAC11440-1 cable assembly routes motor power and encoder signals through the robot's lower arm structure. Without it, axis motion control fails entirely; the robot cannot be operated safely or legally under most machinery directives.

Facilities running IRB 7600 cells on ABB's IRC5 or S4C+ controller platforms face a compounding problem: the controller firmware, the robot mechanical unit, and the cable harness are all generation-locked. Substituting a newer cable assembly from a different IRB generation is not a drop-in option — it requires harness re-routing, connector adaptation, and in many cases a full axis calibration cycle. The only operationally safe path is sourcing the original HAC11440-1.

For plant engineering teams managing asset lifecycles under pressure from finance departments, the calculus is straightforward: a verified spare cable at a fraction of a percent of the robot's replacement cost preserves years of remaining productive life. Facilities that have implemented a structured critical-spare inventory for their IRB 7600 fleet consistently report 5–10 additional years of reliable operation beyond the point at which peers were forced into capital replacement cycles.

Recommended strategy for extending IRB 7600 service life:

Condition & Reliability Assurance

Sourcing obsolete cable assemblies from unverified channels introduces risk that is disproportionate to the component cost. DriveKNMS applies a 5-step inspection protocol to every HAC11440-1 unit before it leaves our facility:

1. Visual and mechanical inspection: Full outer jacket examination for cracking, abrasion, or heat damage. Connector housing integrity check at both termination ends.
2. Pin and contact inspection: Each connector pin is examined under magnification for corrosion, fretting wear, and deformation. Corroded contacts are cause for rejection — not remediation.
3. Continuity and insulation resistance testing: Every conductor is tested for continuity. Insulation resistance is measured to confirm no breakdown between conductors or to shield.
4. Shielding integrity verification: Encoder signal cables are particularly sensitive to shield discontinuity. Shield resistance is measured end-to-end.
5. Packaging and storage audit: Units are repackaged in anti-static, moisture-barrier packaging with desiccant. Storage history is reviewed where documentation is available.

Units that do not pass all five stages are not sold. There is no tiered grading system that allows a marginal unit to ship at a discount.

Key Features for System Maintenance

• Drop-in replacement: HAC11440-1 installs into the IRB 7600 mechanical unit using the original routing path and connector interfaces. No harness modification is required.
• No reprogramming required: Cable replacement does not alter controller parameters. Axis calibration may be required after installation, but no software re-engineering is involved.
• Avoids engineering reconstruction costs: Using the correct OEM part number eliminates the need for custom harness fabrication, which typically costs USD 5,000–20,000 in engineering time alone, excluding validation.
• Preserves safety certification: Substituting non-OEM cable assemblies in a safety-rated robot cell can void CE/machinery directive compliance. The HAC11440-1 maintains the original design intent.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

How do I confirm the unit is genuine and not a counterfeit?
ABB cable assemblies carry part number markings on the cable jacket and connector housings. We verify these markings during intake inspection. We do not source from channels that cannot provide traceability documentation.

Can this cable be used on IRB 7600 variants other than the one I operate?
HAC11440-1 is specific to the IRB 7600 series. Confirm your robot's article number and serial number with our technical team before ordering to ensure variant compatibility.
