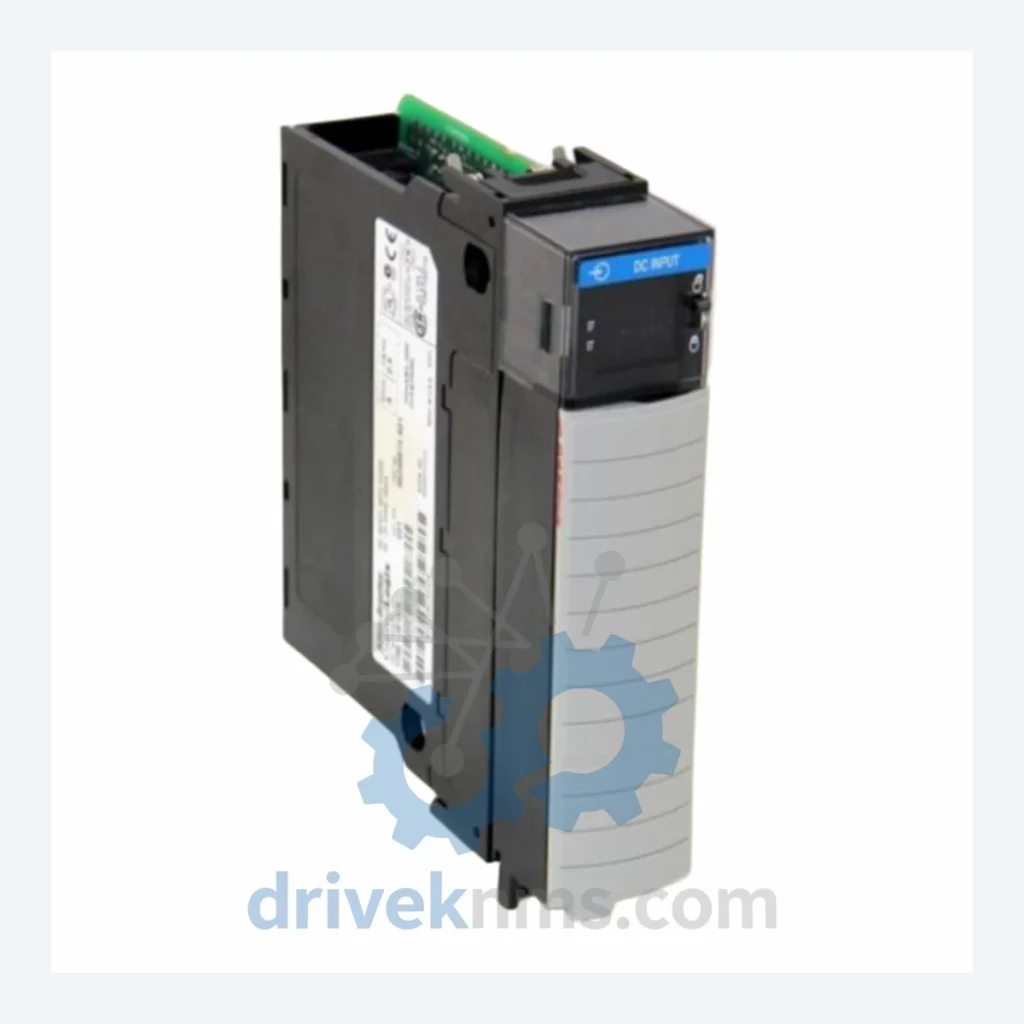

Allen-Bradley 1756-IB16 Digital Input Module – Obsolete ControlLogix Spare Part

When a 1756-IB16 input module fails in a running ControlLogix system, the decision facing plant management is rarely simple. Replacing a single I/O module with a verified spare costs a fraction of what a forced platform migration demands. A full ControlLogix-to-modern-platform cutover — including engineering hours, new hardware, software re-licensing, loop re-commissioning, and production downtime — routinely runs into the hundreds of thousands of dollars, and in complex process environments, well beyond that. The 1756-IB16 is no longer in active production. Verified inventory is finite and diminishing. DriveKNMS maintains a controlled stock of this module specifically to serve facilities that cannot afford unplanned system retirement.

Technical Specifications

Solving the Discontinued Hardware Crisis

The Allen-Bradley 1756-IB16 has been a foundational I/O module in ControlLogix-based control systems deployed across automotive assembly, oil & gas processing, water treatment, and discrete manufacturing since the late 1990s. Rockwell Automation has formally discontinued this module, meaning no new units enter the supply chain from the OEM.

For facilities still operating on ControlLogix platforms built around this module, the hardware discontinuation creates a specific operational risk: a single module failure with no verified replacement on hand can halt production and force an emergency engineering decision under pressure. The cost of that pressure — expedited engineering, unplanned downtime, and the risk of making a poor platform decision reactively — is avoidable.

Maintaining a documented spare parts inventory for the 1756-IB16 is not a legacy habit. It is a deliberate asset protection strategy. A ControlLogix system with a verified spare module on the shelf can absorb a hardware failure and resume production within hours. The same system without a spare faces days or weeks of disruption while sourcing from the secondary market under time pressure — at significantly higher cost and with less certainty about part condition.

For plant managers and reliability engineers operating facilities with 5–15 year capital replacement cycles, the arithmetic is straightforward: the cost of holding one or two verified spare 1756-IB16 modules is negligible against the cost of a single unplanned outage. Extending the operational life of a ControlLogix system by 5 to 10 years through disciplined spare parts management — rather than forcing a premature platform migration — preserves capital budget for planned upgrades on the facility's own schedule.

Condition & Reliability Assurance

Every 1756-IB16 unit processed through DriveKNMS undergoes a structured 5-step quality verification protocol before it is offered for sale:

• Step 1 – Visual and Physical Inspection: Full examination of the module housing, backplane connector pins, and field wiring terminals. Pin corrosion, physical damage, and connector deformation are disqualifying conditions.
• Step 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are a primary failure mode in modules of this generation. Each unit is assessed for capacitor condition; units showing signs of electrolyte leakage or bulging are removed from inventory.
• Step 3 – Firmware Version Verification: The module firmware revision is documented and disclosed. Compatibility with the target processor firmware is the customer's responsibility to confirm; DriveKNMS provides the firmware revision data to support that assessment.
• Step 4 – Functional Input Channel Test: All 16 input channels are exercised under controlled DC input conditions to verify correct signal detection and status reporting.
• Step 5 – Packaging and ESD Protection: Verified units are packaged in anti-static bags with physical protection appropriate for international shipping.

Key Features for System Maintenance

• Drop-in replacement: The 1756-IB16 installs directly into any open 1756 ControlLogix chassis slot. No chassis modification is required.
• No reprogramming required: The module is recognized automatically by the ControlLogix processor using the existing I/O configuration. In most cases, no changes to the RSLogix 5000 or Studio 5000 project are necessary.
• Avoids engineering reconstruction costs: A direct module replacement eliminates the need for I/O remapping, loop re-commissioning, or HMI tag reconfiguration — all of which add significant engineering cost to any forced migration scenario.
• Preserves validated system state: Facilities operating under process validation or functional safety requirements benefit from maintaining the existing hardware configuration rather than introducing new hardware types that require re-validation.

FAQ

What warranty applies to a discontinued module like the 1756-IB16?
DriveKNMS provides a 90-day functional warranty on all verified units. This covers failure under normal operating conditions within the specified electrical parameters. Warranty terms are confirmed in writing at the time of sale.

How do I know the unit is genuine and not counterfeit?
All units are sourced through documented industrial channels. Physical markings, catalog label format, and backplane connector characteristics are cross-referenced against known-genuine reference units. Units that do not pass this verification are not offered for sale.

Should I buy more than one unit?
For any facility with multiple ControlLogix systems using the 1756-IB16, holding a minimum of two verified spares per system is a defensible maintenance strategy. Secondary market availability of this module will continue to tighten as installed base units age out. Procurement now, at a known cost, is preferable to emergency sourcing later at an unknown cost.

Can you source additional units if I need more than you have in stock?
DriveKNMS maintains active sourcing relationships for ControlLogix-era hardware. Contact us with your quantity requirement and we will advise on availability and lead time.
