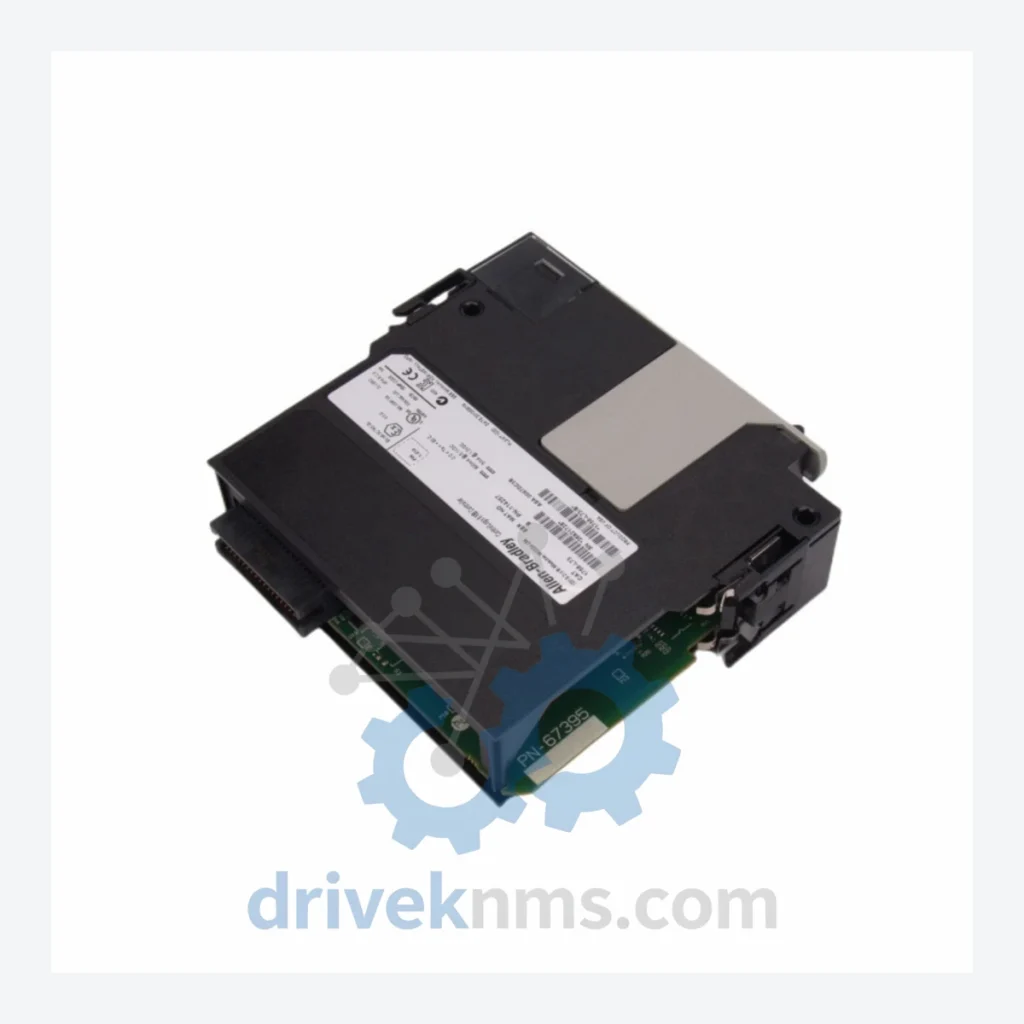

Allen-Bradley 1756 ControlLogix Modules – 1756-L7SP

Technical Dossier

Product Details And Specifications

Allen-Bradley 1756 ControlLogix Series Technical Notes

The Allen-Bradley 1756 ControlLogix platform, developed by Rockwell Automation, is one of the most widely deployed programmable automation controller (PAC) architectures in global heavy industry. Installed across petrochemical refineries, nuclear power generation facilities, offshore oil & gas platforms, pulp and paper mills, and large-scale water treatment infrastructure, the 1756 series represents the backbone of process-critical and safety-critical automation worldwide. Its modular, rack-based architecture supports scalable I/O expansion, redundant controller configurations, and deterministic real-time control — making it the reference standard for SIL 2 and SIL 3 functional safety applications under IEC 61511 and IEC 61508.

The 1756-L7SP Safety Partner module, the subject of this listing, is a dedicated SIL 3 / PLe-rated safety co-processor designed to operate in conjunction with a primary 1756-L7x GuardLogix controller. It enables the execution of safety-rated ladder logic and function block programs within the same ControlLogix chassis, eliminating the need for a separate safety PLC rack in many installations.

The Evolution of 1756 ControlLogix Architecture

The ControlLogix platform was introduced in 1997 as a successor to the PLC-5 and SLC 500 families, addressing the growing demand for multi-discipline control (discrete, process, motion, and safety) within a single backplane. The architecture has evolved through several distinct generations:

Generation 1 (1997–2004) — 1756-Lx / 1756-L1/L2/L3/L4/L5x: Original Logix5550/5555/5560/5561/5562/5563 processors. 1MB–8MB user memory. ControlNet and DeviceNet as primary network options. No integrated safety capability.

Generation 2 (2004–2012) — 1756-L6x Series: Logix5561/5562/5563/5564/5565/5571/5572/5573/5575 processors. Expanded memory up to 32MB. EtherNet/IP integration. Introduction of GuardLogix (1756-L61S, 1756-L62S, 1756-L63S) for SIL 2 safety applications.

Generation 3 (2012–2020) — 1756-L7x Series (Current Production): Logix5571/5572/5573/5574/5575/5577 processors. Up to 40MB user memory. Integrated USB and SD card. GuardLogix L7x (1756-L71S, 1756-L72S, 1756-L73S, 1756-L73XT, 1756-L7SP) for SIL 3 / PLe. Energy Storage Module (ESM) replaces battery backup.

Generation 4 (2020–Present) — 1756-L8x Series: Logix5580 family. Up to 40MB user memory with faster scan times. Dual-port EtherNet/IP. CIP Security support. GuardLogix 5580 (1756-L81ES, 1756-L82ES, 1756-L83ES, 1756-L84ES) for SIL 2/3.

1756 ControlLogix Full Catalog & Functionalities (SKU List)

Controllers & Safety Partners

1756-L71: Logix5571 controller, 2MB user memory, standard ControlLogix PAC.
1756-L72: Logix5572 controller, 4MB user memory, mid-range processing capacity.
1756-L73: Logix5573 controller, 8MB user memory, high-capacity process control.
1756-L74: Logix5574 controller, 16MB user memory, large-scale application support.
1756-L75: Logix5575 controller, 32MB user memory, maximum L7x series capacity.
1756-L71S: GuardLogix 5571S, SIL 2 safety controller, 1MB safety memory.
1756-L72S: GuardLogix 5572S, SIL 2 safety controller, 2MB safety memory.
1756-L73S: GuardLogix 5573S, SIL 2 safety controller, 4MB safety memory.
1756-L7SP: GuardLogix Safety Partner, SIL 3 / PLe co-processor, pairs with L7x primary controller.

Digital I/O Modules (DI / DO)

1756-IB16: 16-point 24VDC sinking digital input module, standard density.
1756-IB32: 32-point 24VDC sinking digital input, high-density rack configuration.
1756-OB16E: 16-point 24VDC sourcing digital output, electronically fused.
1756-OB32: 32-point 24VDC sourcing digital output, high-density.

Analog I/O Modules (AI / AO)

1756-IF16: 16-channel analog input, 4–20mA / 0–10V, single-ended.
1756-OF8: 8-channel analog output, 4–20mA / voltage, process control standard.
1756-IF8: 8-channel differential analog input, high-resolution 16-bit.

Communication & Network Adapters

1756-EN2T: EtherNet/IP communication module, single-port, 100Mbps.
1756-EN2TR: EtherNet/IP module with dual-port DLR (Device Level Ring) topology.
1756-CN2: ControlNet communication module, coax, redundant media support.
1756-DNB: DeviceNet scanner module, master node for DeviceNet networks.

Power Supplies

1756-PA75: 120/240VAC input power supply, 75W output for 1756 chassis.
1756-PB75: 18–32VDC input power supply, 75W, for DC-powered installations.

Sourcing Hard-to-Find & Obsolete 1756 ControlLogix Parts

As the 1756-L7x series transitions toward end-of-active-production status, procurement of replacement modules — particularly safety-rated components such as the 1756-L7SP — becomes increasingly dependent on specialist distributors with access to certified surplus and refurbished inventory.

For end-users operating 1756-L7x-based safety systems under IEC 61511 lifecycle management obligations, DriveKNMS provides documentation packages including test records and configuration snapshots to support site validation activities. Inquiries for bulk procurement, emergency replacement, or long-term supply agreements are handled directly by the technical sales team.

Quality Control for the 1756 ControlLogix Range

The 1756 ControlLogix backplane operates at a proprietary high-speed serial bus. Modules with degraded backplane connectors or corrupted firmware can cause chassis-wide faults, making pre-shipment verification essential for safety-critical applications.

DriveKNMS applies the following test protocol to all 1756 series modules:

Physical Inspection: Backplane connector pin-count verification, PCB visual inspection for corrosion, capacitor condition assessment, and label/firmware revision confirmation.

Functional Power-On Test: Each module is seated in a live 1756 chassis. Controller modules are loaded with a diagnostic ladder program. I/O modules are verified for channel-level response. Communication modules are tested for network enumeration and data transfer integrity.

Safety Module Protocol: GuardLogix controllers and 1756-L7SP Safety Partner units undergo an extended functional test including safety task execution verification, SIL lock confirmation, and cross-check communication validation between primary controller and safety partner.

Firmware Standardization: Modules are shipped at the firmware revision specified by the customer, or at the latest available revision if unspecified, with revision documentation included.
