Allen-Bradley ControlLogix 1756 Series: Comprehensive Module Range and Technical Overview

The Allen-Bradley ControlLogix 1756 platform is Rockwell Automation's flagship programmable automation controller (PAC) architecture, deployed across the full spectrum of heavy industrial applications including petrochemical refineries, nuclear power generation facilities, offshore oil & gas platforms, pulp and paper mills, and large-scale water treatment infrastructure. Since its commercial introduction in 1997, the 1756 backplane has become the de facto standard for high-availability process control in facilities requiring deterministic scan times, redundant controller configurations, and integrated motion control on a single chassis. The platform's installed base spans over 100 countries, with an estimated active deployment exceeding 500,000 chassis globally. Its modular architecture — separating the CPU, I/O, communication, and power supply functions into discrete, field-replaceable modules — has made it the preferred choice for facilities with 20+ year operational lifecycles where individual module replacement is operationally and economically superior to full system replacement.

The Evolution of ControlLogix 1756 Architecture

The ControlLogix platform has undergone four distinct architectural generations since 1997. Generation 1 (1997–2004) introduced the 1756 chassis and backplane with the original Logix5550 processor (1756-L1), establishing the ControlNet and DeviceNet communication model. Processors in this generation are fully obsolete and unsupported by Rockwell Automation, though functional units remain in service at legacy sites. Generation 2 (2004–2010) introduced the L6x processor family (1756-L61, L62, L63, L64, L65), expanding memory capacity to 8 MB and adding EtherNet/IP as a primary network. The L6x series entered the Rockwell End of Life phase in 2018 and is now classified as discontinued, though spare modules remain available through authorized distributors and secondary market suppliers. Generation 3 (2010–2018) delivered the L7x series (1756-L71, L72, L73, L74, L75), which introduced the Logix Designer environment, USB programming port, 1 GB user memory on the L75, and native support for Integrated Motion on EtherNet/IP (IME). The L7x series remains in active production as of 2026 and is the most widely stocked generation in the secondary market. Generation 4 (2018–present) introduced the L8x series (1756-L81E, L82E, L83E, L84E, L85E, L86E, L88E), featuring dual EtherNet/IP ports with Device Level Ring (DLR) support, expanded memory up to 40 MB (L88E), SD card slot for firmware and program backup, and enhanced cybersecurity features including role-based access control. The L8x series is the current recommended platform for new installations. Compatibility note: L8x processors require Series B or later 1756 chassis and are not backward-compatible with Gen 1 backplanes. All generations share the same I/O module form factor, enabling I/O infrastructure reuse across processor upgrades.

ControlLogix 1756 Full Catalog & Functionalities (SKU List)

Controllers (CPU Modules)

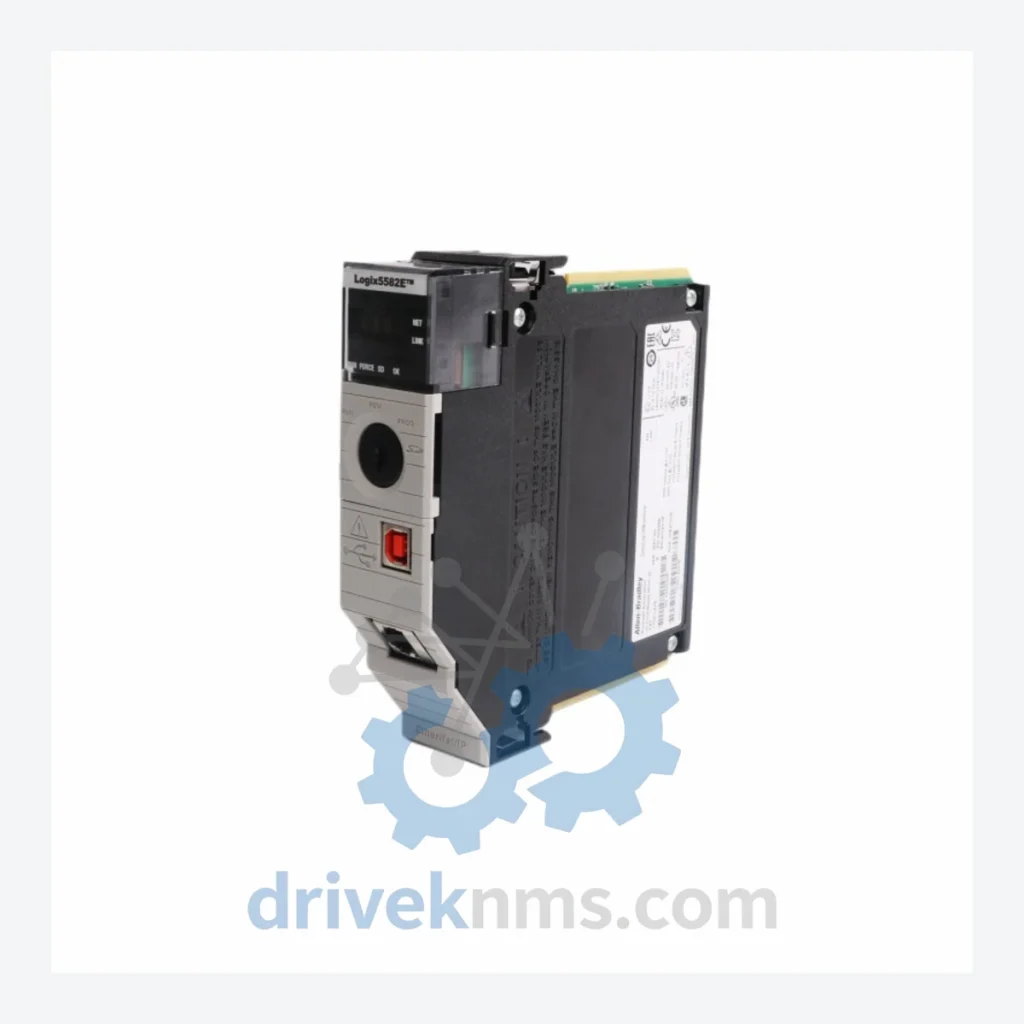

1756-L81E: ControlLogix 5580 controller, 3 MB memory, dual EtherNet/IP ports, DLR support.
1756-L82E: ControlLogix 5580 controller, 5 MB memory, dual EtherNet/IP, SD card slot.
1756-L83E: ControlLogix 5580 controller, 10 MB memory, enhanced cybersecurity, USB port.
1756-L84E: ControlLogix 5580 controller, 20 MB memory, high-capacity process applications.
1756-L85E: ControlLogix 5580 controller, 40 MB memory, large-scale motion and process control.
1756-L71: ControlLogix 5570 controller, 2 MB memory, single EtherNet/IP port, Gen 3.
1756-L73: ControlLogix 5570 controller, 4 MB memory, standard process control applications.
1756-L75: ControlLogix 5570 controller, 8 MB memory, maximum Gen 3 capacity.

Analog I/O Modules

1756-IF16: 16-channel analog input, 4–20 mA / 0–10 V, 16-bit resolution, single-ended.
1756-IF8: 8-channel analog input, differential, 16-bit, high-accuracy process measurement.
1756-OF8: 8-channel analog output, 4–20 mA / 0–10 V, 16-bit, isolated outputs.
1756-OF4: 4-channel analog output, 4–20 mA, suitable for valve positioner control.

Digital I/O Modules

1756-IB16: 16-channel digital input, 24 VDC, sinking, standard discrete input module.
1756-OB16E: 16-channel digital output, 24 VDC, electronically fused, sourcing.
1756-IA16: 16-channel digital input, 120 VAC, for legacy AC field device integration.
1756-OA16: 16-channel digital output, 120/240 VAC, triac output, AC load switching.

Communication & Network Modules

1756-EN2T: EtherNet/IP communication module, single port, 100 Mbps, CIP routing.
1756-EN2TR: EtherNet/IP module with dual ports, Device Level Ring (DLR) media redundancy.
1756-CN2: ControlNet communication module, dual coax ports, scheduled and unscheduled messaging.
1756-DNB: DeviceNet scanner module, supports up to 64 DeviceNet nodes per module.

Power Supply Modules

1756-PA72: AC power supply, 120/240 VAC input, 10 A backplane output, standard chassis.
1756-PB72: DC power supply, 18–32 VDC input, 10 A backplane output, battery-backed.

Sourcing Hard-to-Find & Obsolete ControlLogix 1756 Parts

DriveKNMS maintains a dedicated inventory program for ControlLogix 1756 modules across all generations, with particular depth in the discontinued L6x and early L7x processor families. For facilities operating Gen 1 or Gen 2 hardware where Rockwell Automation no longer provides direct replacement stock, DriveKNMS sources tested surplus and refurbished units through a verified supply chain covering North America, Europe, and Asia-Pacific. All obsolete modules are supplied with full firmware version documentation, enabling compatibility verification against the customer's existing RSLogix 5000 or Studio 5000 project files. For sites requiring long-term maintenance agreements on discontinued 1756 hardware, DriveKNMS offers multi-year supply contracts with reserved inventory allocation. Customers managing planned shutdowns or turnarounds can submit a Bill of Materials (BOM) for pre-staged kitting of 1756 spare parts, reducing procurement lead time during critical maintenance windows.

Quality Control for the ControlLogix 1756 Range

Each 1756 module processed by DriveKNMS undergoes a structured test protocol designed around the specific electrical and communication characteristics of the ControlLogix backplane architecture. Processor modules (L7x, L8x) are bench-tested using a dedicated 1756-A7 chassis with known-good power supply and communication modules, with firmware flashed to the customer-specified version and a full program download/upload cycle executed to verify memory integrity. Analog I/O modules (IF16, IF8, OF8, OF4) are calibrated against NIST-traceable reference instruments, with all 16 channels verified at 0%, 50%, and 100% of rated input/output range. Digital I/O modules are tested under load using resistive test fixtures at rated voltage and current. Communication modules (EN2T, EN2TR, CN2) are validated for CIP connection establishment, scheduled data transfer, and port-level fault isolation. Power supply modules are load-tested at 100% rated backplane current for a minimum 2-hour burn-in period. All test results are documented and supplied with each shipment.
