Allen-Bradley 1769-AENTR Compact I/O EtherNet/IP Adapter – Obsolete CompactLogix Spare Part

Technical Dossier

Product Details And Specifications

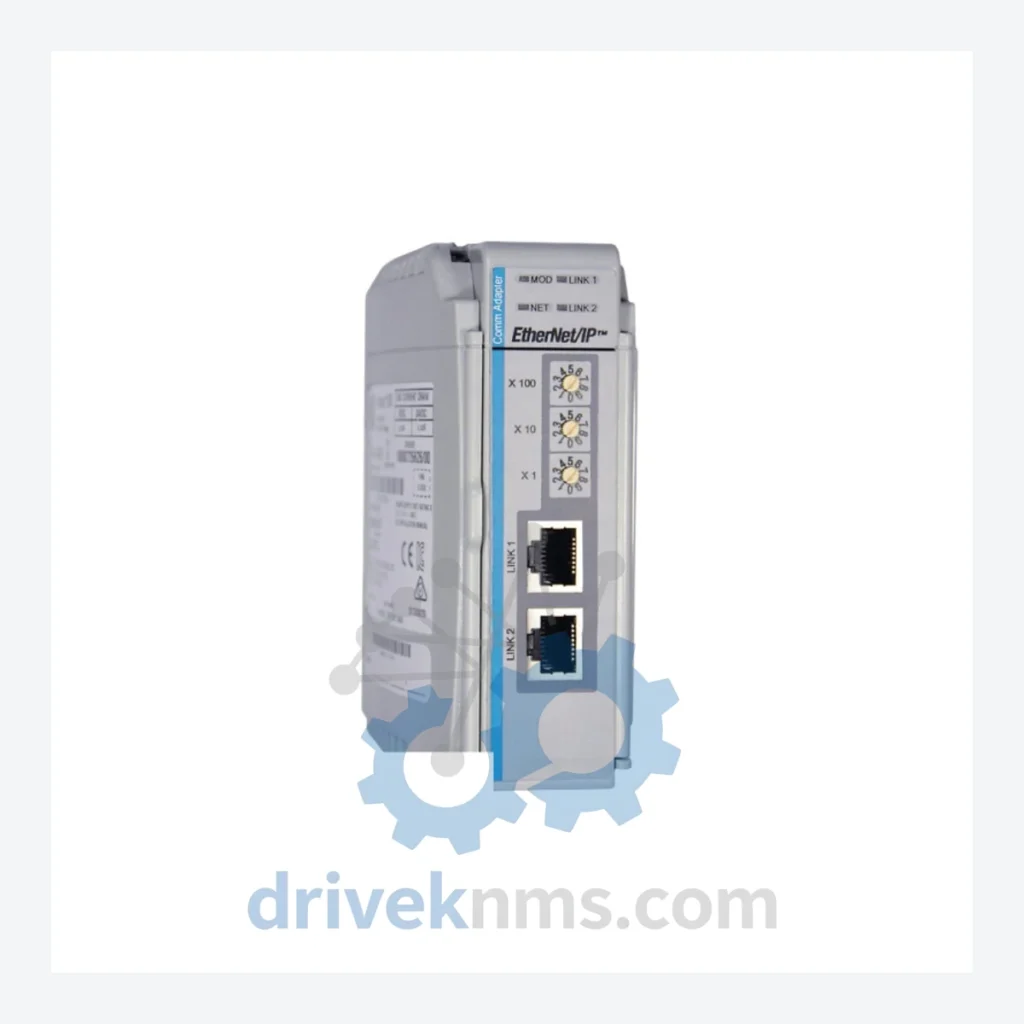

Allen-Bradley 1769-AENTR Compact I/O EtherNet/IP Adapter – Obsolete CompactLogix Spare Part

DriveKNMS reviews sourcing options for this model through RFQ handling before quotation.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The 1769-AENTR was the standard right-end EtherNet/IP adapter for Compact I/O banks deployed throughout the 2000s and 2010s. Rockwell Automation has moved its current portfolio toward the 5069 Compact GuardLogix and newer I/O architectures, leaving a large installed base of 1769-series systems without a direct manufacturer support path.

The problem is structural: the 1769 I/O bus is not electrically or mechanically compatible with newer Rockwell I/O platforms. Replacing a failed 1769-AENTR is not a matter of ordering a newer equivalent — there is no drop-in successor that preserves the existing I/O bank. The only alternatives are a full I/O system replacement or sourcing the original part from the secondary market.

Facilities running CompactLogix 5370 controllers with legacy 1769 I/O banks — common in automotive stamping, plastics extrusion, and municipal water infrastructure — face this constraint directly. The 1769-AENTR is the single point of failure that determines whether the entire I/O bank communicates with the controller. Holding a verified spare eliminates that single point of failure at a fraction of the cost of any migration project.

How to extend your automation asset life by 5–10 years without a platform migration:

Condition & Reliability Assurance

Every 1769-AENTR unit supplied by DriveKNMS passes a structured 5-step quality process before dispatch review. For discontinued hardware, standard incoming inspection is insufficient — the failure modes of aged industrial electronics require targeted evaluation.

1. Electrolytic Capacitor Assessment: Capacitor aging is the primary failure mechanism in power supply and communication circuitry of modules manufactured in the 2000s–2010s. Each unit is inspected for capacitor bulging, electrolyte leakage, and ESR deviation from specification.
2. Firmware Version Verification: The installed firmware revision is identified and documented. Units are supplied with firmware version information so the receiving engineer can confirm compatibility with the target controller before installation.
3. Connector and Pin Integrity Check: Bus connector pins and RJ-45 ports are inspected under magnification for corrosion, mechanical deformation, and contact resistance. Corroded pins are the second most common cause of intermittent communication faults in legacy I/O adapters.
4. Functional Communication Test: Where test infrastructure permits, units are powered and verified to establish an EtherNet/IP connection. Communication status LEDs and port activity are confirmed.
5. Packaging for Long-Term Storage: Units intended for spare inventory are packaged in anti-static bags with desiccant and sealed against humidity ingress, consistent with IPC/JEDEC J-STD-033 handling guidelines for moisture-sensitive devices.

Key Features for System Maintenance

• Drop-in replacement: The 1769-AENTR installs directly into the existing 1769 I/O bank without mechanical modification. No new mounting hardware, no bus wiring changes.
• No reprogramming required: The adapter is transparent to the controller program. I/O tag addresses, produced/consumed tags, and controller logic remain unchanged after replacement. Commissioning time is limited to IP address configuration and connection verification.
• Avoids engineering reconstruction costs: A platform migration requires control system redesign, new I/O mapping, HMI updates, and full revalidation. A spare 1769-AENTR eliminates that cost path entirely for the remaining service life of the system.
• DLR topology support: The dual-port design supports Device Level Ring configurations, preserving network redundancy in facilities that have implemented ring topologies for fault tolerance.

Q: How is condition confirmed before quotation?
A: Available condition, photos, test records and documentation are checked according to the requested model and sourcing channel before a formal RFQ response.

How do I confirm the unit is new or quality-refurbished?
Each unit is supplied with a condition report documenting its inspection results. New-in-box units are identified as such. Refurbished units are documented with the specific reconditioning steps performed. We do not supply units without documented condition status.

Can this unit be used with ControlLogix?
The 1769-AENTR is a right-end adapter for the 1769 Compact I/O bus. It communicates upstream via EtherNet/IP and is compatible with any EtherNet/IP scanner, including ControlLogix controllers with 1756-EN2T or equivalent Ethernet modules, provided the I/O configuration is correctly defined in the controller project.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.
