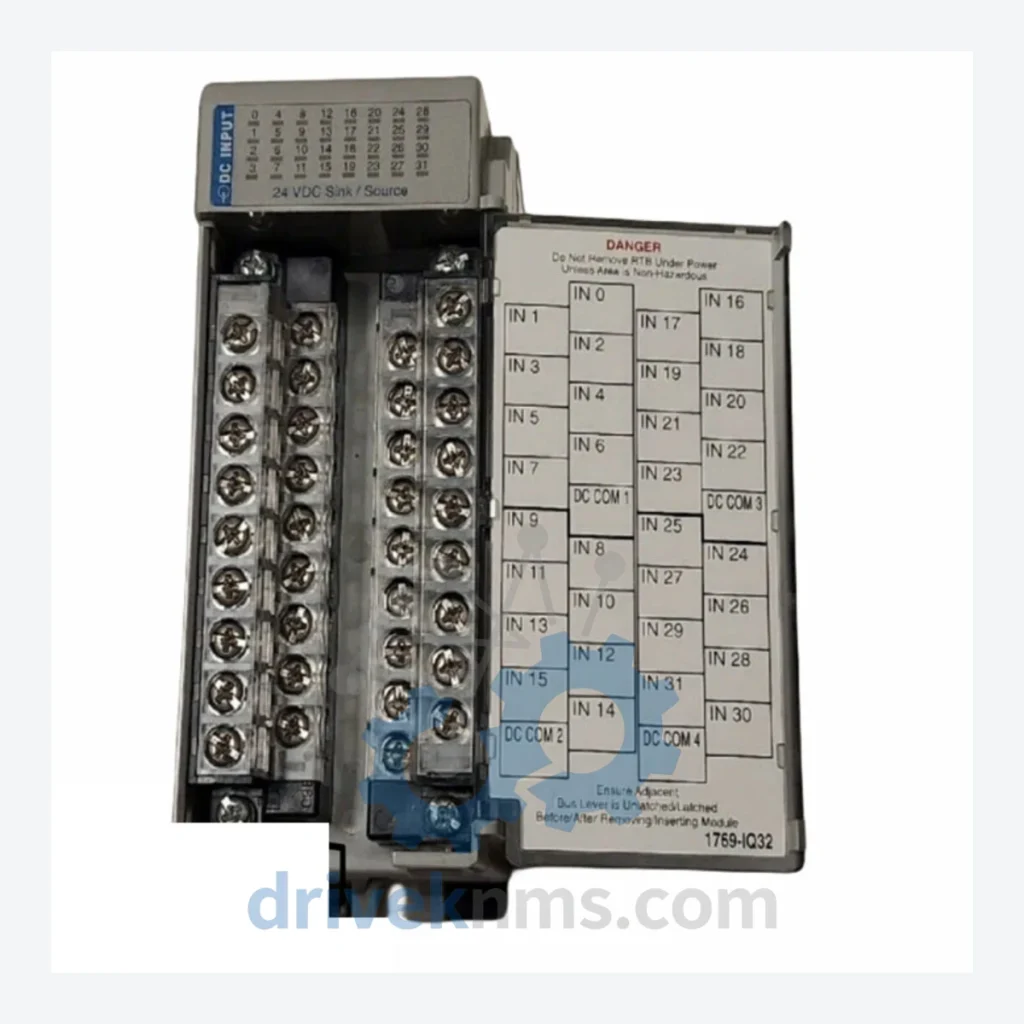

Allen-Bradley 1769-IQ32 Digital Input Module – Obsolete CompactLogix Spare Part

DriveKNMS maintains a carefully managed inventory of hard-to-find industrial automation components. The 1769-IQ32 units we hold have been sourced, inspected, and documented specifically for facilities that cannot afford to gamble on unverified surplus channels.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

For plant managers and maintenance engineers, this creates a specific and serious problem: the 1769 Compact I/O bus is not backward-compatible with newer 5069 CompactLogix 5380 hardware. Replacing a failed 1769-IQ32 is not a matter of ordering a newer equivalent — it requires either sourcing the original part number or committing to a full platform migration.

Facilities that invested in CompactLogix infrastructure in the 2000s built systems designed for 20–30 year operational lifespans. The control logic, HMI configurations, SCADA integrations, and field wiring are all calibrated to the 1769 platform. Abandoning that infrastructure prematurely — because a single I/O module failed — represents a destruction of capital that no maintenance budget should absorb unnecessarily.

Condition & Reliability Assurance

Sourcing discontinued industrial components from unverified channels carries real operational risk. Counterfeit modules, units with degraded internal components, and incorrectly stored hardware have all been documented in the surplus market. DriveKNMS applies a structured 5-step inspection protocol to every 1769-IQ32 unit before it is offered for sale:

Step 1 — Visual and Physical Inspection: Full examination of housing integrity, connector pins, and label authenticity. Units with physical damage, pin corrosion, or evidence of field repair are rejected.

Step 2 — Electrolytic Capacitor Assessment: Internal capacitors are a primary failure point in aged electronics. Units are assessed for capacitor bulging, leakage, or ESR degradation that would indicate end-of-life condition.

Step 3 — Firmware Version Verification: Where accessible, firmware revision is documented and cross-referenced against known compatible versions for the target controller platform.

Step 4 — Pin and Connector Integrity Check: All I/O terminal blocks and backplane connectors are inspected for oxidation, mechanical wear, and contact resistance issues.

Step 5 — Functional Bench Test: Units are powered and tested against input signal simulation to verify correct ON/OFF state detection and backplane communication.

Key Features for System Maintenance

The 1769-IQ32 is a direct drop-in replacement for any existing 1769-IQ32 slot in a CompactLogix or MicroLogix 1500 Compact I/O rack. No controller re-programming is required. No I/O mapping changes are needed. No field wiring modifications are necessary. The module slots into the existing backplane, and the controller recognizes it using the existing project configuration.

Q: How do I know the unit is genuine and not counterfeit?
A: Each unit is inspected against known authentic Allen-Bradley labeling, housing construction, and PCB characteristics. We do not source from anonymous bulk lots. Provenance documentation is available for units where chain-of-custody records exist. If authenticity verification is a requirement for your facility's procurement process, contact us before purchase to discuss documentation options.

Q: Can you support multi-unit or repeat RFQ requests?
A: Yes. Send the model list, target quantity and destination so DRIVEKNMS can review sourcing options and quote the requirement as a project RFQ.

Q: Can this module be used with a 5069 CompactLogix 5380 controller?
A: No. The 1769 Compact I/O bus is not compatible with the 5069 I/O bus used by CompactLogix 5380 controllers. The 1769-IQ32 is specific to 1769-series CompactLogix controllers and the MicroLogix 1500 Compact I/O expansion bus.
