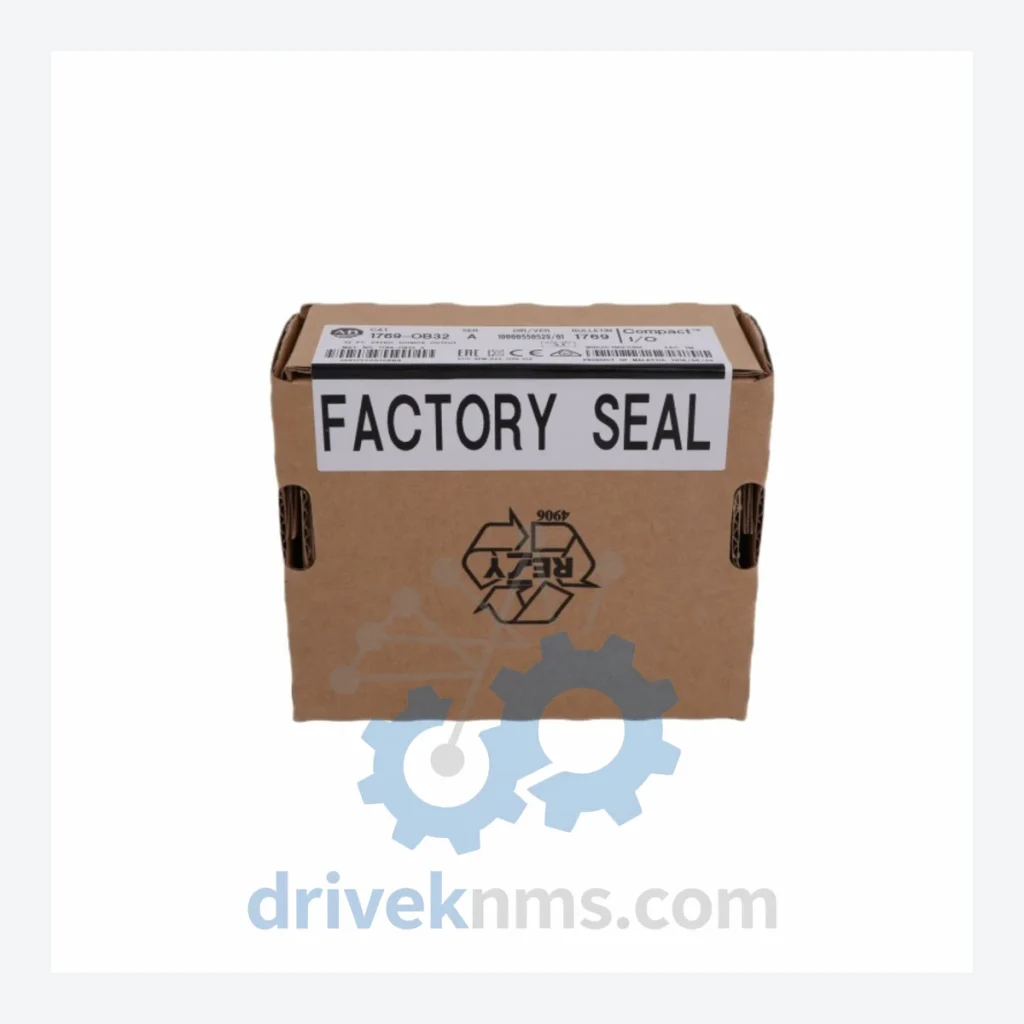

Allen-Bradley 1769-OB32 Digital Output Module – Obsolete CompactLogix Spare Part

Technical Dossier

Product Details And Specifications

Allen-Bradley 1769-OB32 Digital Output Module – Obsolete CompactLogix Spare Part

When a 1769-OB32 module fails on an active production line, the consequences are not limited to a single machine going offline. In a CompactLogix-based control architecture, this 32-point digital output module is the direct interface between the controller and field devices — conveyors, solenoids, actuators, and safety interlocks. Its failure can halt an entire production cell. Replacing the control system outright — migrating from CompactLogix to a current-generation platform — carries engineering costs that routinely exceed $200,000 USD when factoring in panel redesign, I/O remapping, software migration, operator retraining, and production downtime during commissioning. DriveKNMS maintains verified stock of the 1769-OB32 specifically to prevent that scenario. One module. One day of lead time. Years of continued operation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The 1769-OB32 was a core building block of CompactLogix systems deployed throughout the 2000s and 2010s across automotive assembly, food processing, water treatment, and discrete manufacturing. Rockwell Automation has since discontinued this module, and authorized distributors no longer carry new stock. The installed base, however, remains enormous.

Factory managers operating these systems face a structural problem: the control architecture is deeply embedded. Field wiring, HMI configurations, SCADA integrations, and safety validations are all built around the existing I/O map. Migrating to a current-generation platform is not a weekend project — it is a capital expenditure that competes with production targets, headcount budgets, and maintenance schedules.

The practical alternative is asset life extension through strategic spare parts procurement. A single 1769-OB32 module, sourced and held in reserve, eliminates the risk of an unplanned multi-week shutdown while a replacement system is engineered and commissioned. For facilities running three shifts, the cost of that downtime — measured in lost throughput, expedited freight, and emergency contractor fees — dwarfs the cost of maintaining a spare parts inventory. DriveKNMS operates specifically within this gap: sourcing verified obsolete modules from decommissioned equipment, tested stock, and global surplus channels, and making them available to facilities that cannot afford to wait.

Condition & Reliability Assurance

Obsolete modules sourced from the secondary market carry inherent risk. Age-related degradation is real, and a module that passes a basic power-on test may still fail under load within weeks. DriveKNMS applies a 5-step QA protocol to every 1769-OB32 unit before shipment:

• Step 1 – Visual and Mechanical Inspection: Full examination of the housing, terminal blocks, and backplane connector for physical damage, corrosion, or evidence of prior repair.
• Step 2 – Electrolytic Capacitor Assessment: Capacitor aging is the primary failure mode in modules of this vintage. Each unit is evaluated for capacitor condition; units showing signs of electrolyte leakage or bulging are rejected.
• Step 3 – Firmware Version Verification: The module firmware is confirmed against known compatible versions for the target CompactLogix controller families. Mismatched firmware can cause silent I/O faults that are difficult to diagnose in the field.
• Step 4 – Pin and Connector Integrity Check: Backplane connector pins are inspected under magnification for oxidation, bending, or contamination. Pin corrosion is a common failure point in modules stored in humid environments.
• Step 5 – Functional Load Test: Each output point is exercised under representative load conditions. Pass/fail results are logged per unit.

Units that complete all five steps are classified as Tested Surplus. Units in original, unopened manufacturer packaging are classified as New Old Stock (NOS) and are not subjected to destructive testing.

Key Features for System Maintenance

• Drop-in replacement: The 1769-OB32 installs directly into any open 1769 I/O slot. No wiring changes, no controller configuration changes, no software modifications required.
• No re-engineering required: The module is recognized automatically by the CompactLogix controller upon insertion. There is no firmware flashing, no I/O tree rebuild, and no PLC program modification needed in standard replacement scenarios.
• Avoids system-wide upgrade costs: Replacing a failed output module with a like-for-like spare eliminates the need to engage a system integrator, remap I/O addresses, or revalidate safety functions — costs that can reach tens of thousands of dollars per incident.
• Long-term spares strategy: Facilities with multiple CompactLogix systems should consider holding two to three units in reserve. As secondary market availability continues to decline, procurement lead times will increase and unit costs will rise. Purchasing now locks in current pricing and eliminates future sourcing risk.

FAQ

What warranty applies to an obsolete module?
DriveKNMS provides a 90-day functional warranty on all tested surplus units. If a module fails under normal operating conditions within 90 days of shipment, we will replace it or issue a full refund. New Old Stock units carry the same 90-day coverage.

How do I know the unit is genuine Allen-Bradley and not a counterfeit?
All units are inspected for manufacturer markings, catalog label authenticity, and backplane connector construction consistent with genuine Rockwell Automation production. We do not source from regions or channels known for counterfeit industrial components. Certificates of conformance are available upon request for volume orders.

Should I buy more than one unit?
For any facility running CompactLogix systems in continuous production, holding at least one spare 1769-OB32 per system is a minimum prudent standard. Given the declining availability of this module on the secondary market, procurement of two to three units is a defensible maintenance budget decision. The cost of a single unplanned shutdown will exceed the cost of a multi-unit spare inventory by a significant margin.

Can this module be used with MicroLogix systems?
The 1769-OB32 is a Compact I/O module and is compatible with MicroLogix controllers that support the 1769 I/O bus, including the MicroLogix 1500. Verify your specific controller's I/O compatibility list before ordering.
