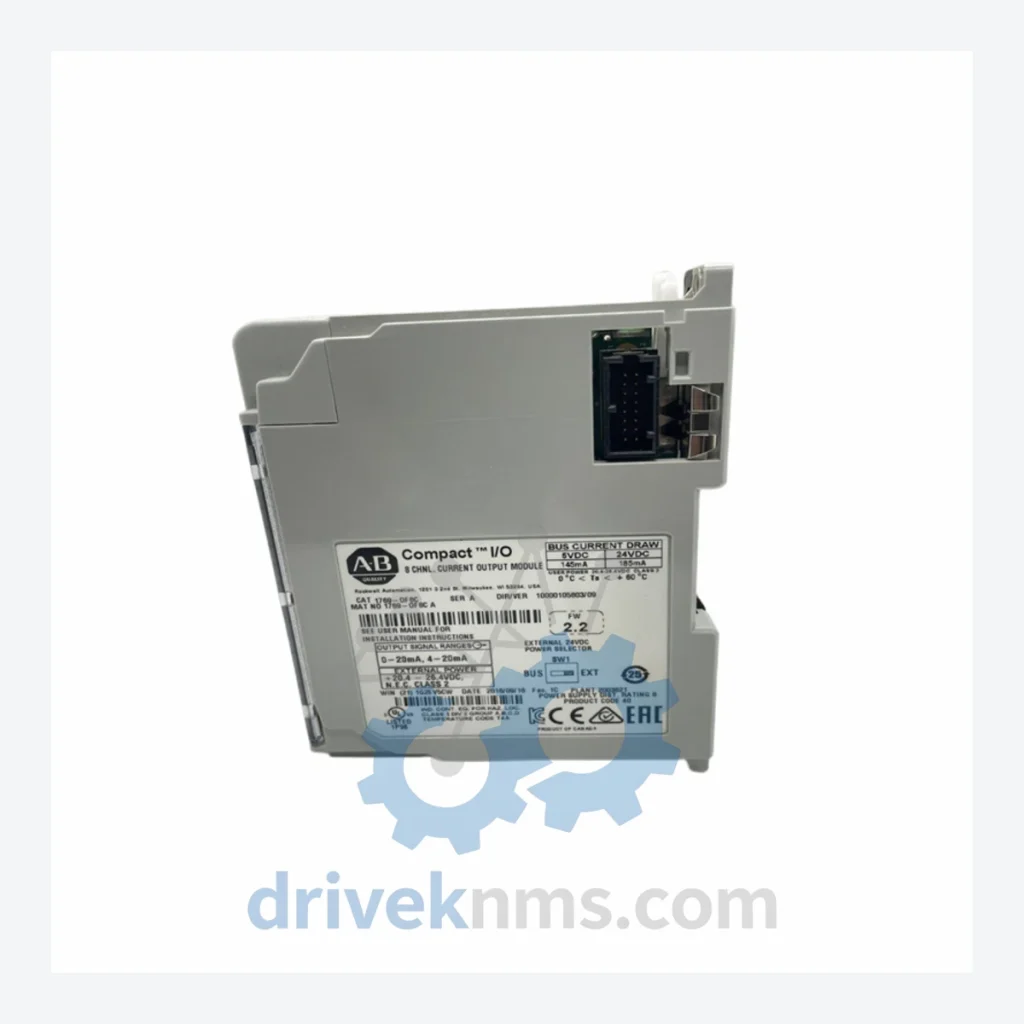

Allen-Bradley 1769 CompactLogix Modules – 1769-OF8V

Technical Dossier

Product Details And Specifications

Allen-Bradley 1769 CompactLogix Series Technical Notes

The Allen-Bradley 1769 CompactLogix series is a modular I/O platform developed by Rockwell Automation, deployed across heavy industrial sectors including petrochemical refining, nuclear power auxiliary systems, offshore oil & gas platforms, pulp and paper mills, and automotive assembly lines. The 1769 bus architecture supports both local and distributed I/O expansion, making it the backbone of mid-range control systems globally. Installed base estimates place the 1769 series among the top three most widely deployed PLC I/O families in North America and Western Europe, with significant penetration in Asia-Pacific process industries.

The Evolution of 1769 CompactLogix Architecture

The 1769 series was introduced by Rockwell Automation as a compact, cost-optimized complement to the larger 1756 ControlLogix platform. Early revisions (Series A) established the CompactBus backplane standard, supporting up to 8 local I/O modules per bank. Series B revisions introduced improved noise immunity and extended operating temperature ranges, addressing field reliability issues in high-vibration environments. Series C modules added firmware-level diagnostics and enhanced EDS (Electronic Data Sheet) compatibility for seamless integration with Studio 5000 Logix Designer.

The 1769 platform operates on the CompactLogix controller family (1769-L16ER, 1769-L18ER, 1769-L24ER, 1769-L27ERM, 1769-L30ER, 1769-L33ER, 1769-L36ERM), all sharing the same 1769 I/O bus. Backward compatibility between Series A and Series C modules is maintained at the hardware level, though firmware mismatches require careful revision management during system upgrades. As of 2024, Rockwell Automation has transitioned active development focus to the 5069 Compact 5000 platform; however, the 1769 series remains in active production for legacy system support and is expected to remain available through the extended product lifecycle program until at least 2030.

1769 CompactLogix Full Catalog & Functionalities (SKU List)

Analog Output Modules

• 1769-OF8V: 8-channel analog voltage output module, ±10V DC, 16-bit resolution, CompactBus compatible
• 1769-OF8C: 8-channel analog current output module, 4–20 mA, 16-bit resolution, single-ended outputs
• 1769-OF4: 4-channel analog output, configurable voltage/current, 13-bit resolution
• 1769-OF2: 2-channel analog output, voltage/current selectable, compact footprint

Analog Input Modules

• 1769-IF4: 4-channel analog input, voltage/current configurable, 13-bit resolution
• 1769-IF8: 8-channel analog input, single-ended, 16-bit resolution, high-density
• 1769-IF4I: 4-channel isolated analog input, 4–20 mA / 0–10V, per-channel isolation
• 1769-IF4XOF2: 4-channel analog input + 2-channel analog output combination module
• 1769-IT6I: 6-channel isolated thermocouple/mV input, supports J, K, T, E, R, S, B types
• 1769-IR6I: 6-channel isolated RTD/resistance input, supports Pt100, Pt1000, Ni120

Digital Input Modules

• 1769-IQ16: 16-channel 24V DC digital input, sink/source configurable, standard density
• 1769-IQ32: 32-channel 24V DC digital input, high-density, dual-slot form factor
• 1769-IA8I: 8-channel 120V AC isolated digital input, per-channel isolation
• 1769-IQ6XOW4: 6-channel DC input + 4-channel relay output combination module

Digital Output Modules

• 1769-OB16: 16-channel 24V DC digital output, source type, 0.5A per channel
• 1769-OW16: 16-channel relay output, Form A contacts, 2A per channel at 240V AC
• 1769-OB32: 32-channel 24V DC digital output, high-density, source type

Communication & Specialty Modules

• 1769-SDN: DeviceNet scanner module, supports up to 63 nodes, explicit and I/O messaging
• 1769-ASCII: ASCII serial interface module, RS-232/RS-485, for barcode readers and HMI serial devices

Quality Control for the 1769 CompactLogix Range

The 1769 series presents specific quality verification challenges due to the CompactBus backplane communication protocol and the precision requirements of analog I/O modules. DriveKNMS applies the following test procedures to all 1769 modules prior to shipment:

• Backplane Communication Test: Each module is seated in a live 1769 CompactLogix test rack and polled via RSLogix 5000 / Studio 5000 to confirm identity, firmware revision, and fault-free status reporting.
• Analog Channel Calibration Verification: For analog output modules including the 1769-OF8V, all 8 channels are driven across the full ±10V range and measured against a calibrated reference meter. Channel-to-channel deviation and linearity are logged.
• Analog Input Accuracy Check: Input modules are tested with precision signal sources across the full input range. Offset and gain errors are compared against Rockwell Automation published specifications.
• Thermal Cycling: Modules flagged for long-term storage or extended service life applications undergo thermal cycling between 0°C and 60°C to screen for latent solder joint or capacitor failures.
• Visual and Physical Inspection: Connector pins, backplane edge connectors, and housing integrity are inspected under magnification. Modules with evidence of rework, pin damage, or counterfeit labeling are rejected.
