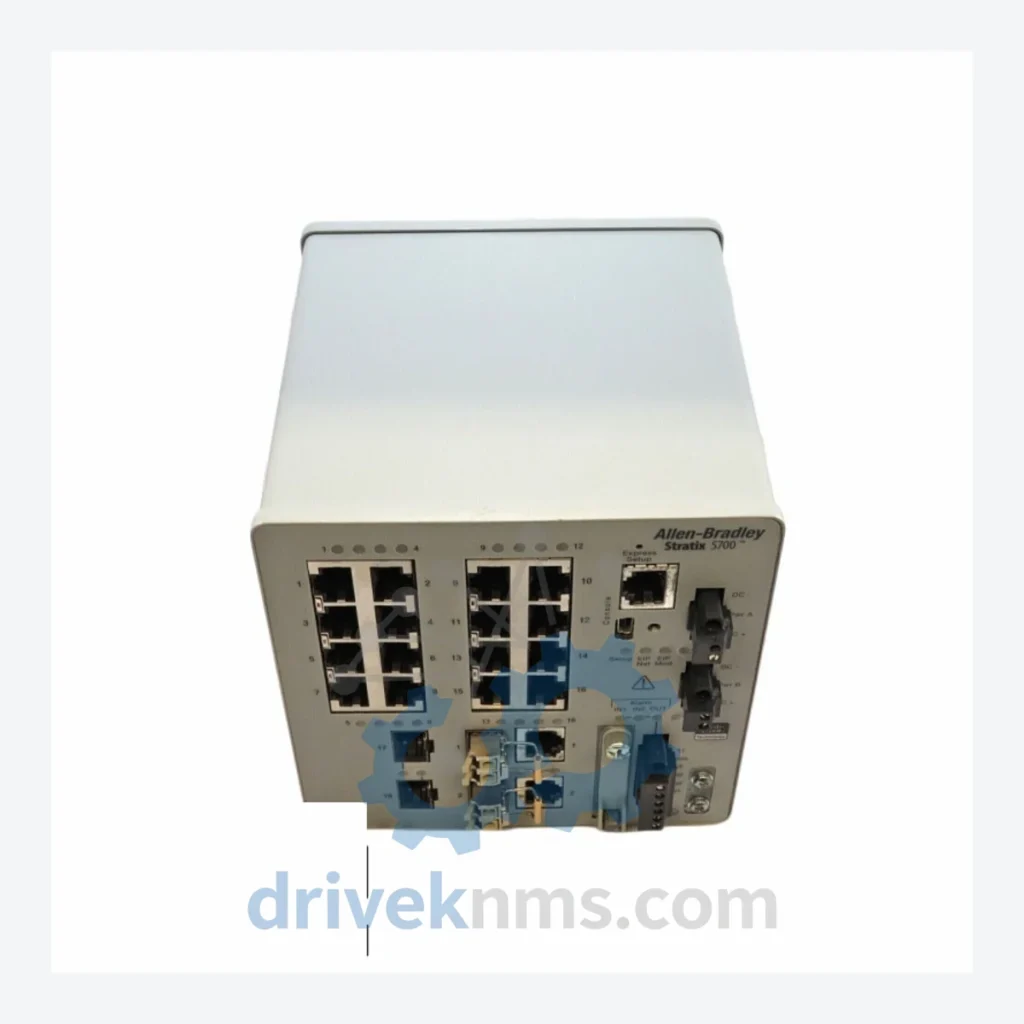

Allen-Bradley 1783-BMS20CGL Managed Switch – Obsolete Stratix 5700 Spare Part

Technical Dossier

Product Details And Specifications

Allen-Bradley 1783-BMS20CGL Managed Switch – Obsolete Stratix 5700 Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The Stratix 5700 platform was engineered specifically for Rockwell Automation's Integrated Architecture — it is not a generic commercial switch dropped into an industrial rack. The 1783-BMS20CGL integrates directly with Studio 5000 and RSLinx, supports Device Level Ring (DLR) topology, and carries the firmware versioning that legacy PlantPAx and ControlLogix systems expect. Replacing it with a non-Allen-Bradley switch is not a plug-and-play exercise. It requires network re-engineering, potential PLC firmware updates, and revalidation of safety-critical communication paths — a project that routinely runs into six figures before the first line of new code is written.

For facilities operating on 10–20 year asset depreciation cycles, the calculus is straightforward: sourcing a verified replacement 1783-BMS20CGL extends the operational life of the surrounding automation architecture without triggering a capital expenditure review. The switch is the keystone. Lose it, and the entire network segment it anchors becomes a liability.

Procurement teams and plant managers facing end-of-life pressure from OEM support teams should treat this unit as a strategic reserve asset, not a consumable spare. One unit on the shelf eliminates the single point of failure that forces an unplanned system retirement.

How Extending One Component Protects Years of Capital Investment

Automation systems built on EtherNet/IP infrastructure represent capital investments that rarely depreciate on paper as fast as they age in practice. A PlantPAx or ControlLogix system commissioned in 2008–2015 may still be running at full production capacity — but its network layer, particularly managed switches like the 1783-BMS20CGL, is now the weakest link in the chain.

The maintenance strategy that consistently delivers the best return is targeted component-level replacement rather than system-wide migration. Specifically:

This is not a theoretical risk management framework. It is the operational reality for every facility that has attempted to source a discontinued Rockwell networking component on an emergency timeline.

Condition & Reliability Assurance

Every 1783-BMS20CGL unit that leaves DriveKNMS goes through a structured 5-step inspection protocol before it is offered for sale. For a discontinued component where no new production run is possible, the condition of the unit is the only variable that matters.

1. Visual and mechanical inspection: Enclosure integrity, port condition, mounting hardware, and label legibility are checked against OEM specifications. Units with physical damage to the chassis or port housings are rejected at this stage.
2. Electrolytic capacitor assessment: Aged capacitors are the primary failure mode in electronics that have been in storage or light service for extended periods. We inspect for visible bulging, electrolyte leakage, and measure capacitance on critical power supply filter capacitors where accessible.
3. Firmware version verification: The installed firmware version is documented and cross-referenced against Rockwell Automation's compatibility matrix for ControlLogix and CompactLogix platforms. Firmware version is disclosed to the buyer prior to shipment.
4. Pin and connector corrosion check: RJ-45 ports, fiber SFP slots, and power terminal blocks are inspected under magnification for oxidation, pin deformation, and contamination. Affected connectors are cleaned or the unit is downgraded.
5. Functional power-on test: Where test infrastructure permits, units are powered and basic port link activity is verified. Test results are documented and available on request.

Key Features for System Maintenance

• Drop-in replacement: The 1783-BMS20CGL installs directly into existing Stratix 5700 rack positions and cable runs. No physical infrastructure changes are required.
• No reprogramming required: Configuration can be restored from an existing backup via Cisco IOS-based CLI or Rockwell's Device Manager interface. A replacement unit does not require a network engineer to rebuild the configuration from scratch if a backup exists.
• Avoids engineering rework costs: Substituting a non-OEM switch into a validated EtherNet/IP architecture requires network re-engineering and revalidation. A like-for-like 1783-BMS20CGL replacement avoids this entirely.
• Preserves DLR topology: Device Level Ring redundancy is a function of the switch firmware and hardware. Only a compatible Stratix unit maintains the ring without reconfiguration.
• Maintains system validation status: In regulated industries (pharmaceutical, food & beverage, oil & gas), a like-for-like hardware replacement carries significantly lower revalidation burden than a platform change.

How do I know the unit is genuine and not counterfeit?
All units are sourced through established industrial surplus and decommissioning channels. Serial numbers are intact and traceable. We do not source from unverified brokers. Buyers may request serial number documentation prior to purchase.

Should I buy more than one unit?
For any facility where this switch is installed in a production-critical network segment, yes. The secondary market supply for the 1783-BMS20CGL is finite and declining. A second unit held as a cold spare eliminates the sourcing risk entirely for the duration of your system's planned operational life.

What condition are the units in?
Units are offered as new-surplus (unused, original packaging where available) or inspected refurbished (tested, cleaned, firmware-verified). Condition is specified per unit at the time of inquiry.
