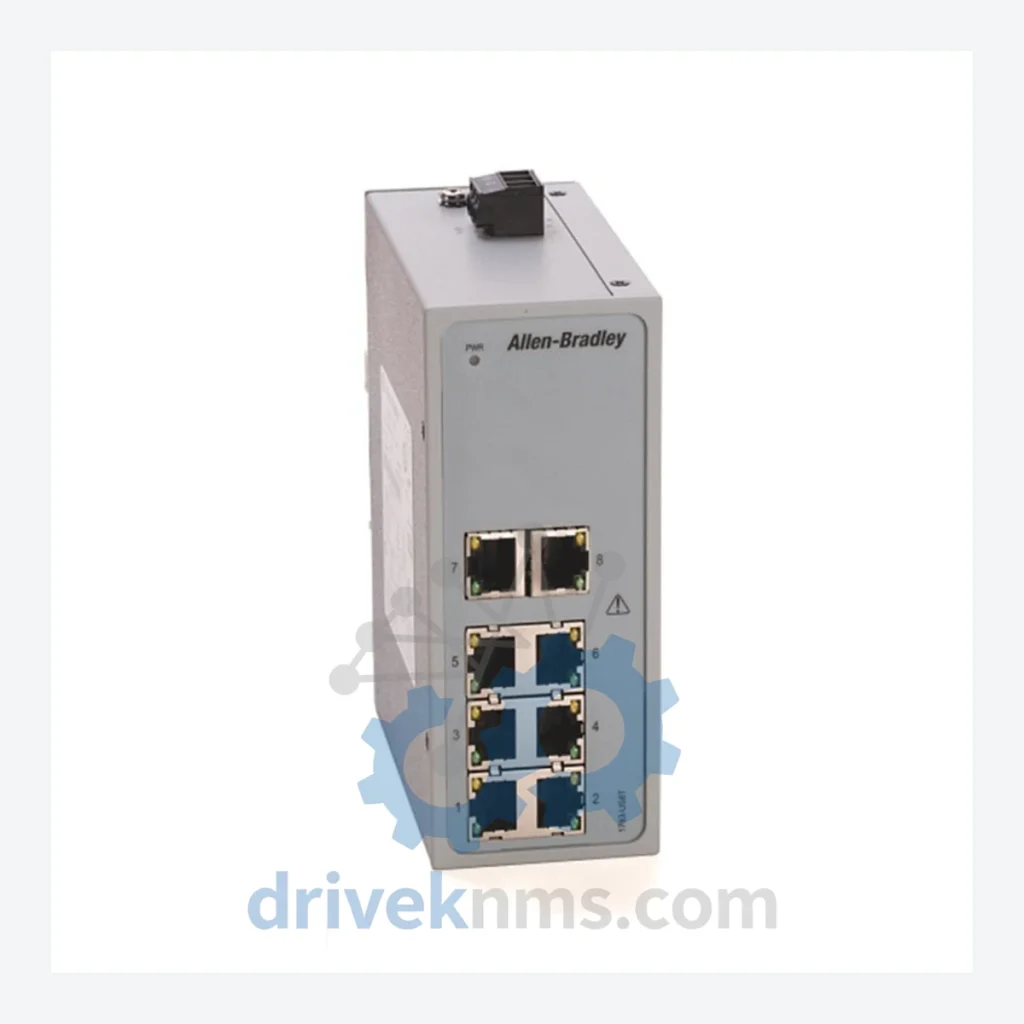

Allen-Bradley 1783-US08T Ethernet Switch – Stratix 2000 Critical Spare Part

Technical Dossier

Product Details And Specifications

Allen-Bradley 1783-US08T Ethernet Switch – Stratix 2000 Critical Spare Part

Technical Specifications

Solving the Critical Spare Hardware Challenge

The Stratix 2000 series was designed to integrate seamlessly into Rockwell Automation EtherNet/IP environments without requiring managed switch configuration expertise on the plant floor. That simplicity is precisely why it remains embedded in so many facilities that have no near-term plans for network modernization. The 1783-US08T requires zero configuration — it connects, it works, and it keeps the PLC talking to the HMI and the drives. Sourcing a direct replacement from standard distribution channels has become increasingly unreliable as production volumes shift toward the managed Stratix 5700 and 9300 families. Plant engineers who have attempted to substitute a generic unmanaged switch have encountered EtherNet/IP multicast flooding issues that degrade controller communication response times. The 1783-US08T is not interchangeable with a commodity switch from a general IT supplier. It is a purpose-built industrial component, and its absence from your spare parts inventory is a measurable operational risk.

Condition & Reliability Assurance

• Step 1 – Visual Inspection: Full external examination for physical damage, port integrity, label legibility, and DIN-rail clip condition.
• Step 2 – Power-On Functional Test: Unit is powered at rated 24V DC and all 8 ports are verified for link activity and auto-negotiation.
• Step 3 – Capacitor & Component Assessment: Internal inspection for electrolytic capacitor aging, swelling, or leakage — the primary failure mode in aging industrial electronics.
• Step 4 – Firmware Version Documentation: Firmware revision is recorded and disclosed in the shipment documentation so your engineering team can validate compatibility before installation.
• Step 5 – Pin and Connector Corrosion Check: All RJ45 ports and power terminals are inspected for oxidation or corrosion that could cause intermittent connectivity faults in service.

Units that do not pass all five steps are not offered for sale. Condition grade is disclosed on every order confirmation.

Key Features for System Maintenance

• Drop-in Replacement: The 1783-US08T installs directly into an existing Stratix 2000 network segment with no configuration required. No IP addressing, no VLAN setup, no EDS file changes.
• No Reprogramming Required: Because the switch is unmanaged, there is no firmware to configure and no controller program modifications needed after swap-out.
• Avoids Engineering Rework Costs: Substituting a managed switch requires network redesign, software licensing, and validation time. A like-for-like replacement eliminates that cost entirely.
• EtherNet/IP Compatible: Designed for Rockwell EtherNet/IP topologies, avoiding the multicast flooding issues that affect generic IT switches in PLC environments.
• DIN-Rail Form Factor: Mounts directly in the existing panel position without mechanical modification.

Q: How do I know the unit is genuine and not counterfeit?
A: All units are sourced through verified industrial channels. We provide documentation of origin and condition grade with every shipment. If you require additional traceability documentation, request it at the time of order.
