Allen-Bradley 1785-L20C15 PLC-5 Processor – Obsolete PLC-5 Spare Part

Technical Dossier

Product Details And Specifications

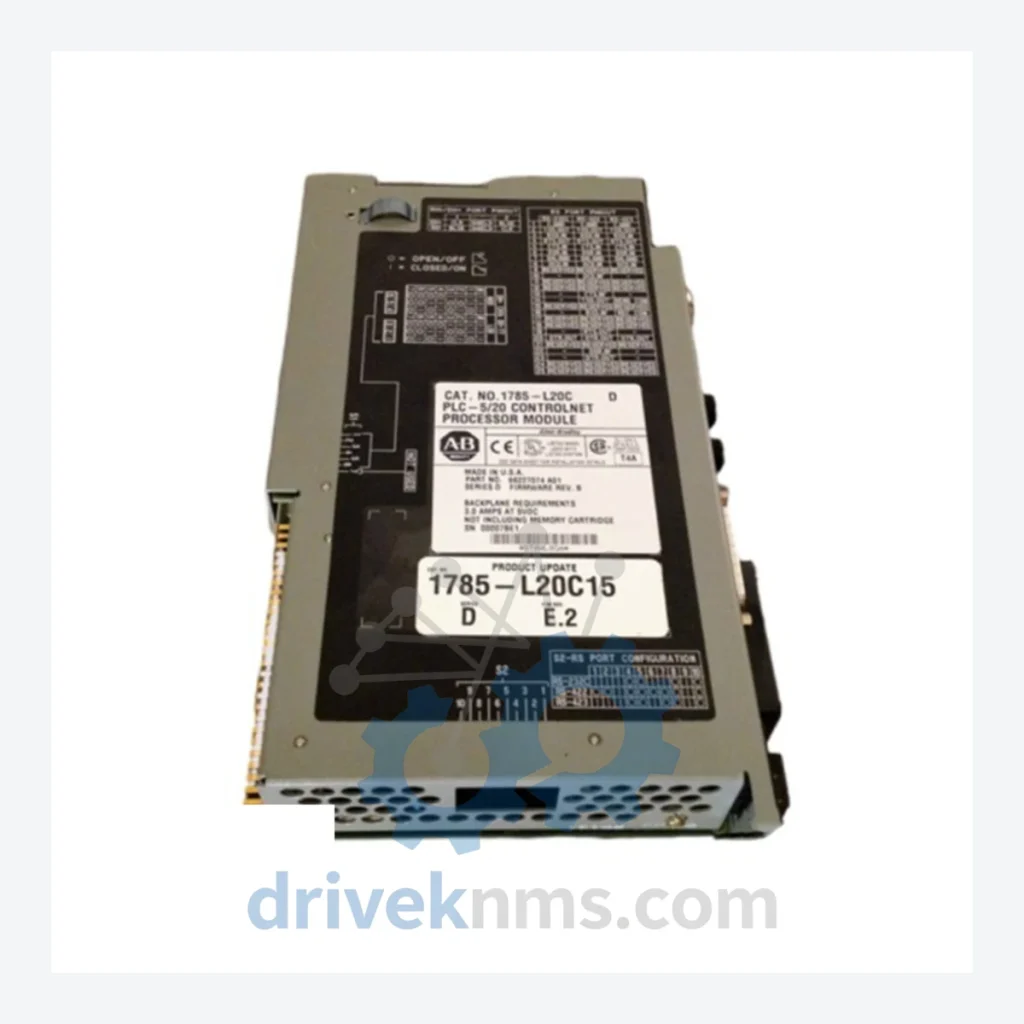

Allen-Bradley 1785-L20C15 PLC-5 Processor – Obsolete PLC-5 Spare Part

The 1785-L20C15 is a discontinued Allen-Bradley PLC-5 processor. DriveKNMS maintains RFQ-reviewed sourcing status of this module. Securing a spare now is not a purchasing decision — it is an asset protection decision.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters not independently verified for this specific revision. Specifications above are based on published Allen-Bradley PLC-5 ControlNet processor family documentation. Buyers requiring revision-specific data sheets should contact us directly.

Solving the Discontinued Hardware Crisis

The Allen-Bradley PLC-5 platform was formally discontinued by Rockwell Automation. Replacement parts are no longer manufactured. For the thousands of facilities worldwide that built their automation infrastructure on PLC-5 architecture through the 1980s, 1990s, and 2000s, this creates a structural maintenance problem that does not resolve itself.

The 1785-L20C15 processor is the computational core of any PLC-5 rack it occupies. It executes the ladder logic program, manages I/O communication across the 1771 backplane, and handles ControlNet network traffic. There is no field-repairable substitute. When this module fails, the controlled process stops.

The rational response is pre-positioning. A single verified spare processor, held in climate-controlled storage, converts a potential production catastrophe into a scheduled maintenance event. The cost differential between a planned spare and an emergency procurement or forced migration is not marginal — it is structural.

How a Single Spare Extends Asset Life by 5–10 Years

Plant managers facing pressure to retire legacy PLC-5 systems often cite parts availability as the primary driver of migration timelines, not system performance. The control logic works. The I/O infrastructure works. The operators know the system. The only constraint is hardware continuity.

A verified spare processor directly addresses that constraint. With a confirmed backup unit on the shelf, the migration decision reverts to a business-driven timeline rather than a failure-driven emergency. Engineering resources can be allocated to a planned, phased migration. Production schedules are protected. Capital expenditure is deferred to a period when it can be properly budgeted and executed.

For facilities with multiple PLC-5 racks, a single spare processor can serve as a rotating backup across the entire installation, further improving the return on the spare parts investment. Combined with periodic preventive maintenance — capacitor inspection, firmware verification, connector cleaning — a well-maintained PLC-5 system with confirmed spare coverage can sustain reliable operation for an additional 5 to 10 years beyond what an unprotected installation could achieve.

This is not a strategy of indefinite deferral. It is a strategy of controlled transition, executed on the facility's terms rather than the failure's terms.

Condition & Reliability Assurance

DriveKNMS applies a structured 5-step quality process to all obsolete processor modules before they are offered for sale:

• Step 1 – Visual and Physical Inspection: Full external inspection for physical damage, corrosion, bent pins, and connector integrity. Modules with compromised housings are rejected at intake.
• Step 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are a primary failure mode in legacy processor boards. Each unit is inspected for capacitor bulging, leakage, and ESR degradation. Units with suspect capacitors are flagged and not offered as operational spares without disclosure.
• Step 3 – Firmware and Revision Verification: The firmware revision and hardware revision markings are documented and disclosed. Buyers receive the actual revision of the unit they are purchasing, not a generic specification.
• Step 4 – Connector and Pin Integrity Check: Backplane connector pins are inspected for oxidation, corrosion, and mechanical deformation. Contact surfaces are cleaned where appropriate.
• Step 5 – Functional Verification (where applicable): Where test equipment is available, modules undergo power-on verification. Functional status is disclosed accurately in the product listing.

Key Features for System Maintenance

• Drop-in replacement: The 1785-L20C15 installs directly into an existing 1771 chassis slot. No chassis modification is required.
• No reprogramming required: The existing ladder logic program is stored in the processor's memory or on a memory module. A replacement processor loaded with the existing program restores system operation without software re-engineering.
• No I/O reconfiguration: The 1771 I/O modules and field wiring remain undisturbed. The replacement processor communicates with the existing I/O infrastructure immediately upon installation.
• Avoids engineering reconstruction costs: A forced migration to a modern platform requires control system re-engineering, new hardware, new software licenses, factory acceptance testing, and site acceptance testing. A verified spare processor eliminates that cost entirely for the duration of the spare's service life.
• ControlNet network continuity: The C-series designation confirms ControlNet communication capability, maintaining existing network topology without reconfiguration.

How do I know the unit is genuine and not counterfeit?
All units sourced by DriveKNMS are inspected for authenticity markers including label integrity, board markings, and component consistency. We do not knowingly sell counterfeit or remarked parts. Buyers with specific authentication requirements should contact us to discuss available documentation.

Should I buy more than one spare?
For facilities with multiple PLC-5 racks or where the controlled process is critical, holding two spare processors is a defensible strategy. The secondary market for discontinued Allen-Bradley PLC-5 processors tightens over time as installed base units age and fail. Prices on the secondary market for verified units trend upward as supply contracts. Procurement now, at known pricing, is preferable to procurement under emergency conditions at unknown pricing.

Can you source other PLC-5 or 1771 series components?
Yes. DriveKNMS specializes in obsolete and hard-to-find industrial automation components across multiple platforms. Contact us with your full bill of materials for a consolidated sourcing response.
