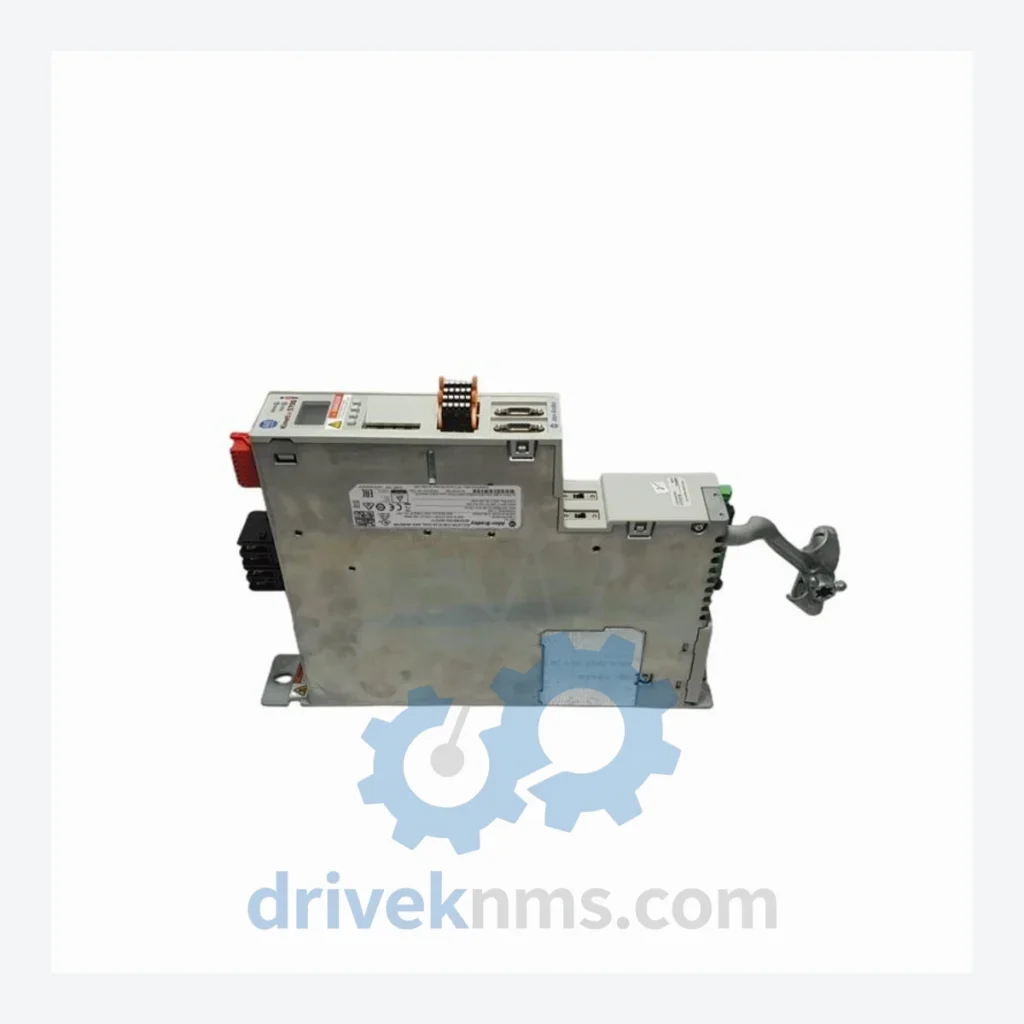

Allen-Bradley 2198-D020-ERS3 Dual Axis Inverter – Kinetix 5700 Critical Spare Part

Technical Dossier

Product Details And Specifications

Allen-Bradley 2198-D020-ERS3 Dual Axis Inverter – Kinetix 5700 Critical Spare Part

Technical Specifications

Solving the Critical Hardware Supply Crisis

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Extending Your Automation Asset Life by 5–10 Years: A Practical Strategy

For plant engineering and maintenance managers operating Kinetix 5700-based systems, the following approach has been validated across multiple industrial sectors as a cost-effective alternative to premature system retirement:

1. Conduct a single-point-of-failure audit. Map every 2198-series inverter in your facility by axis count and power rating. Identify which lines have zero spare coverage. Prioritize by production criticality, not by age.

5. Maintain firmware version discipline. ERS3 firmware revisions are not always backward-compatible with older ControlLogix project files. Before replacing an inverter, confirm the firmware version of the failed unit and match it on the replacement. DriveKNMS can advise on firmware version matching for units in our inventory.

Executed consistently, this five-point program extends the productive service life of a Kinetix 5700 installation by 5 to 10 years beyond the point at which ad-hoc maintenance becomes unsustainable — without requiring a platform migration.

Condition & Reliability Assurance

Every 2198-D020-ERS3 unit shipped by DriveKNMS passes a structured 5-step inspection protocol before dispatch:

Step 1 – Visual and Mechanical Inspection: Full enclosure inspection for physical damage, connector pin integrity check, and heatsink condition assessment. Units with bent pins, cracked housings, or corroded terminals are rejected at this stage.

Step 2 – Electrolytic Capacitor Assessment: DC bus capacitors and gate drive supply capacitors are the primary aging components in any servo drive inverter. Units are assessed for capacitor bulge, electrolyte leakage, and ESR deviation. Capacitors showing measurable degradation are flagged and the unit is either reconditioned or rejected.

Step 4 – Functional Power-On Test: Where test infrastructure permits, units are powered on and communication with a ControlLogix controller is verified. Fault code history is cleared and the unit is confirmed to initialize without active faults.

Step 5 – Packaging and ESD Protection: Units are packaged in anti-static bags with foam cushioning. Shipping cartons are rated for the unit weight with appropriate void fill. Each unit ships with a condition report.

Key Features for System Maintenance

The 2198-D020-ERS3 is a direct drop-in replacement for any failed unit of the same part number within a Kinetix 5700 system. No hardware modifications are required. The replacement procedure does not require re-engineering the motion control architecture or modifying the Studio 5000 project file, provided the firmware version is matched. This means:

For facilities managing multiple Kinetix 5700 systems across shifts or sites, the 2198-D020-ERS3 spare strategy is the lowest-cost, lowest-risk approach to maintaining servo system availability.

Frequently Asked Questions

Q: How is condition confirmed before quotation?
A: Available condition, photos, test records and documentation are checked according to the requested model and sourcing channel before a formal RFQ response.
