Allen-Bradley 2711-K10C15L1

Name: Allen-Bradley 2711-K10C15L1
Brand: Allen-Bradley

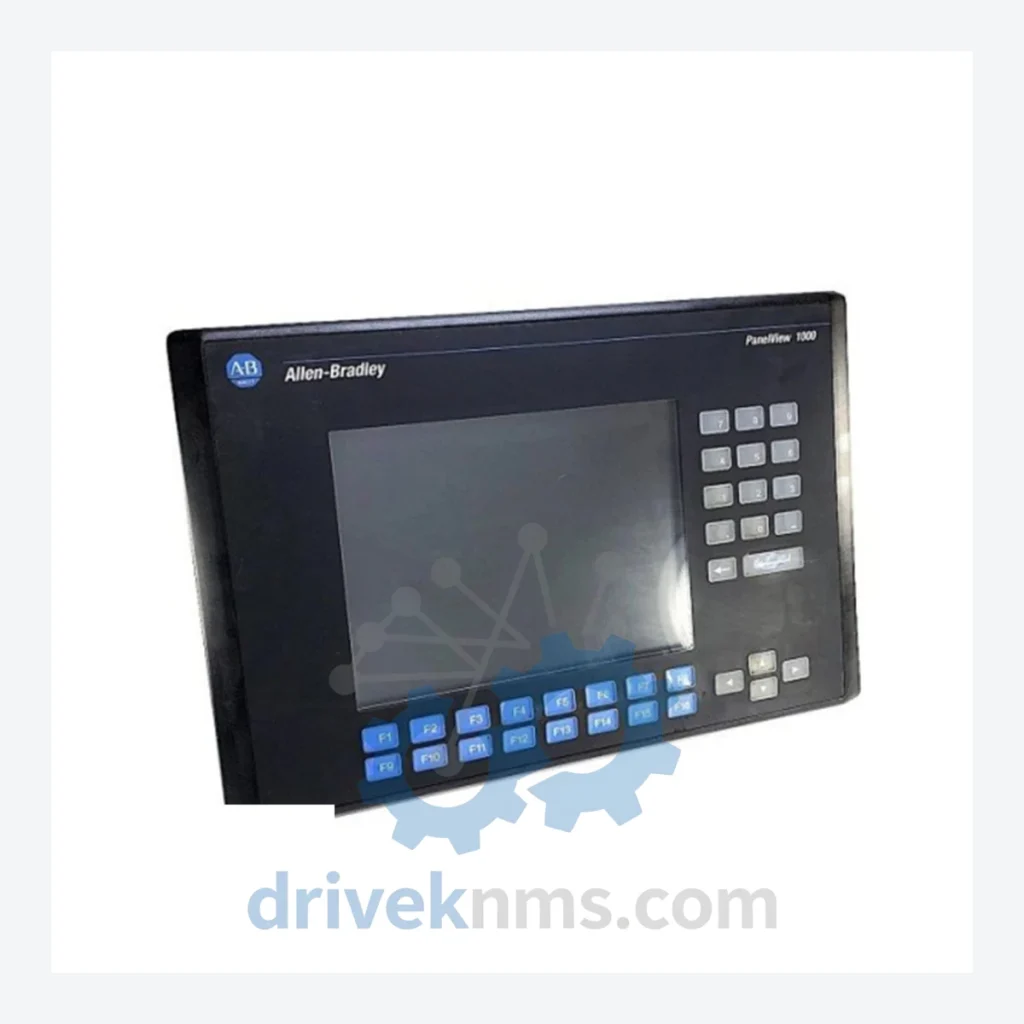

Model: PanelView 1000 Color Keypad

Brand Allen-Bradley

Series PanelView

Model PanelView 1000 Color Keypad

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

Allen-Bradley PanelView 1000 Series Technical Notes

The Allen-Bradley PanelView 1000 series (Rockwell Automation catalog prefix: 2711) is a 10.4-inch operator interface terminal platform deployed extensively across global heavy industry verticals including petrochemical refineries, nuclear power generation facilities, offshore oil & gas platforms, and continuous-process chemical plants. With a screen diagonal of 10.4 inches and support for both keypad and touch input configurations, the PanelView 1000 established itself as a standard HMI node within Allen-Bradley PLC-5, SLC 500, and early ControlLogix architectures. Installed base counts in the hundreds of thousands of units globally, making long-term spare parts availability a critical operational concern for plant maintenance engineers.

The Evolution of PanelView 1000 Architecture

The PanelView 1000 platform was introduced in the early 1990s as part of Rockwell Automation's broader 2711 HMI family, which spanned screen sizes from 550 to 1400. The original 2711-Kxx and 2711-Txx variants communicated via DH+, DH-485, and RS-232 DF1 protocols, tightly coupled to PLC-5 and SLC 500 backplane architectures. A subsequent hardware revision introduced enhanced EL (electroluminescent) and color STN LCD display technologies, reflected in the C-suffix model designations (e.g., 2711-K10C15L1 for color keypad). Communication options expanded to include DeviceNet and Remote I/O in later catalog variants. The series entered end-of-life (EOL) status under Rockwell's product lifecycle policy, with the recommended migration path being the PanelView Plus 1000 (2711P-T10Cxx) and PanelView Plus 7 Standard platforms. Despite EOL status, the 2711 series remains in active service at facilities with long capital replacement cycles, creating sustained demand for certified replacement units and tested spare modules.

PanelView 1000 Full Catalog & Functionalities (SKU List)

The following catalog numbers represent verified Allen-Bradley PanelView 1000 (2711) series part numbers, organized by input type and communication interface:

Color Keypad Terminals

2711-K10C15L1: 10.4-in color STN keypad, DH+/RS-232 DF1, 24VDC
2711-K10C15L2: 10.4-in color STN keypad, DH+/RS-232 DF1, 120VAC
2711-K10C15L3: 10.4-in color STN keypad, DH+/RS-232 DF1, 240VAC
2711-K10C8L1: 10.4-in color STN keypad, DH-485/RS-232, 24VDC
2711-K10C8L2: 10.4-in color STN keypad, DH-485/RS-232, 120VAC

Color Touch Screen Terminals

2711-T10C15L1: 10.4-in color STN touch, DH+/RS-232 DF1, 24VDC
2711-T10C15L2: 10.4-in color STN touch, DH+/RS-232 DF1, 120VAC
2711-T10C15L3: 10.4-in color STN touch, DH+/RS-232 DF1, 240VAC
2711-T10C8L1: 10.4-in color STN touch, DH-485/RS-232, 24VDC
2711-T10C8L2: 10.4-in color STN touch, DH-485/RS-232, 120VAC

Monochrome Keypad Terminals

2711-K10G15L1: 10.4-in monochrome EL keypad, DH+/RS-232 DF1, 24VDC
2711-K10G15L2: 10.4-in monochrome EL keypad, DH+/RS-232 DF1, 120VAC
2711-K10G8L1: 10.4-in monochrome EL keypad, DH-485/RS-232, 24VDC

Monochrome Touch Screen Terminals

2711-T10G15L1: 10.4-in monochrome EL touch, DH+/RS-232 DF1, 24VDC
2711-T10G15L2: 10.4-in monochrome EL touch, DH+/RS-232 DF1, 120VAC
2711-T10G8L1: 10.4-in monochrome EL touch, DH-485/RS-232, 24VDC

Quality Control for the PanelView 1000 Range

Each 2711 series unit processed by DriveKNMS undergoes a structured test protocol specific to the HMI platform's hardware architecture. Display verification covers full-screen pixel mapping for STN color panels (checking for dead pixel clusters exceeding OEM tolerance thresholds) and EL panel luminance uniformity. Communication port testing validates DH+ token-passing behavior, DH-485 multi-drop addressing, and RS-232 DF1 full-duplex framing using protocol analyzers configured to Allen-Bradley specification. Keypad membrane continuity is verified across all function keys, numeric keys, and navigation keys using automated matrix scanning. Power supply regulation is tested at rated input voltage (24VDC ±10%, 120VAC ±10%, 240VAC ±10%) under simulated load. Units are burned in for a minimum of 24 hours prior to final inspection and packaging.
