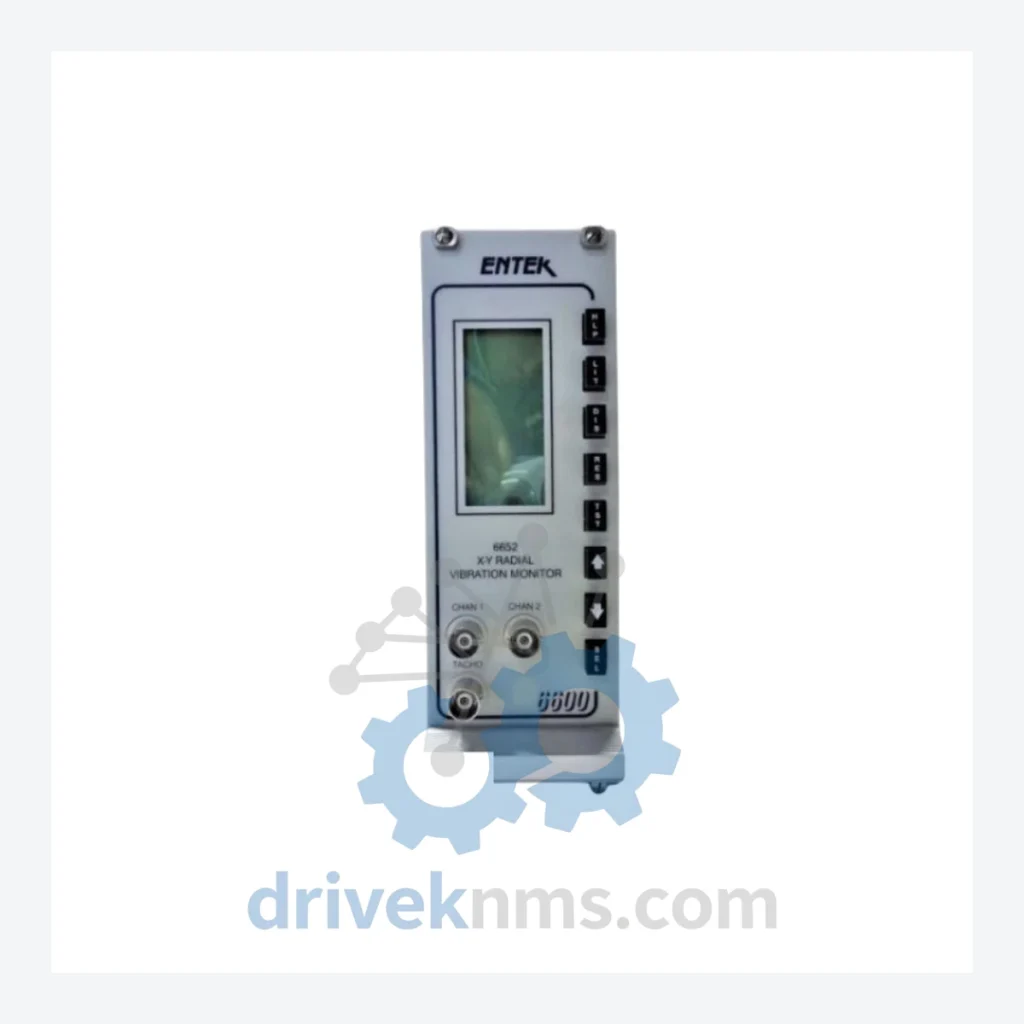

Allen-Bradley EC6652 Modules – Radial Vibration Monitor EC6652

Technical Dossier

Product Details And Specifications

Allen-Bradley EC6652 Series Technical Notes

The EC6652 is part of Rockwell Automation's Dynamix / machinery protection ecosystem, designed to interface with proximity probes (eddy-current type, typically Bently Nevada-compatible) and deliver conditioned vibration signals to DCS or safety systems. Its deployment spans turbine trains, compressor strings, pump sets, and gearboxes where API 670 compliance is mandated.

The Evolution of EC6652 Architecture

The EC6652 belongs to the Allen-Bradley Dynamix machinery monitoring platform, which evolved from standalone rack-based vibration monitors of the 1990s toward integrated, network-aware condition monitoring systems. Early-generation monitors in this lineage operated as isolated 4–20 mA output devices with hardwired relay trip outputs. The EC6652 generation introduced digital communication capability, allowing integration with ControlLogix and CompactLogix backplanes via EtherNet/IP or dedicated monitoring buses.

Key architectural milestones in this series include: transition from analog-only signal conditioning to dual-channel digital processing; introduction of configurable alert/danger setpoints via software (replacing physical DIP switches); support for dynamic data capture (waveform buffering) for post-event analysis; and compatibility with Rockwell's FactoryTalk Asset Centre for centralized asset health management.

As the EC6652 series has entered a mature-to-legacy lifecycle phase in many installations, long-term maintenance support — including access to tested surplus and refurbished units — becomes the primary procurement strategy for end users committed to existing infrastructure without full system migration.

EC6652 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified Allen-Bradley / Rockwell Automation EC-series and Dynamix machinery protection module range. Each unit is classified by primary function:

Radial Vibration Monitors

• EC6652: Dual-channel radial vibration monitor, proximity probe input, relay trip output, 4–20 mA analog output, API 670 compliant
• EC6651: Single-channel radial vibration monitor, eddy-current probe interface, configurable danger/alert setpoints
• EC6653: Radial vibration monitor with expanded dynamic data buffering, EtherNet/IP communication port
• EC6654: High-speed radial vibration monitor for gearbox and high-frequency applications, dual-channel

Axial Position / Thrust Monitors

• EC6661: Single-channel axial position monitor, thrust bearing protection, 4–20 mA output, relay trip
• EC6662: Dual-channel axial thrust monitor, differential expansion measurement, API 670 compliant
• EC6663: Axial position monitor with digital communication, FactoryTalk integration support

Keyphasor / Speed Monitors

• EC6671: Keyphasor module, once-per-revolution reference signal conditioning, tachometer output
• EC6672: Dual-input speed monitor, overspeed detection relay, configurable trip speed setpoint
• EC6673: Speed and phase reference module, compatible with EC66xx radial and axial monitors for vector analysis

Temperature / Process Monitors

• EC6681: Thermocouple input monitor, bearing temperature protection, 4–20 mA output
• EC6682: RTD (Pt100) input temperature monitor, dual-channel, relay trip output
• EC6683: Multi-input process variable monitor, configurable for temperature or pressure, EtherNet/IP

Power Supply & Rack Infrastructure

• EC6601: Rack power supply module for EC66xx series, 24 VDC input, redundant power bus support
• EC6602: Redundant power supply module, hot-swap capable, status relay output
• EC6610: 4-slot monitoring rack chassis, DIN-rail or panel mount, backplane bus for EC66xx modules
• EC6620: 8-slot monitoring rack chassis, expanded I/O capacity, dual power supply slots

Sourcing Hard-to-Find & Obsolete EC6652 Parts

DriveKNMS maintains a dedicated inventory of Allen-Bradley EC66xx series modules, including the EC6652, sourced from decommissioned plant assets, controlled surplus channels, and verified distributor networks. For installations where the EC6652 has been discontinued by Rockwell Automation, DriveKNMS provides lifecycle extension support through the following services:

All units are shipped with test documentation. Export compliance (EAR/ECCN classification) is handled for international shipments.

Quality Control for the EC6652 Range

The EC6652 and associated EC66xx modules undergo a structured verification protocol at DriveKNMS prior to dispatch:

• Backplane communication test: Module is seated in an EC6610/EC6620 rack and bus communication integrity is verified under simulated load conditions
• Probe input simulation: Eddy-current probe signals are injected at calibrated amplitudes to verify channel gain, filtering, and setpoint response accuracy
• Relay output verification: Alert and danger relay contacts are exercised through full setpoint threshold cycles; contact resistance and response time are logged
• Analog output calibration: 4–20 mA output linearity is verified across the full measurement span using a calibrated reference meter
• Communication port test: EtherNet/IP or serial communication ports are tested for packet integrity and response latency
• Visual and mechanical inspection: PCB, connector pins, front-panel indicators, and housing are inspected for damage, corrosion, or counterfeit indicators
