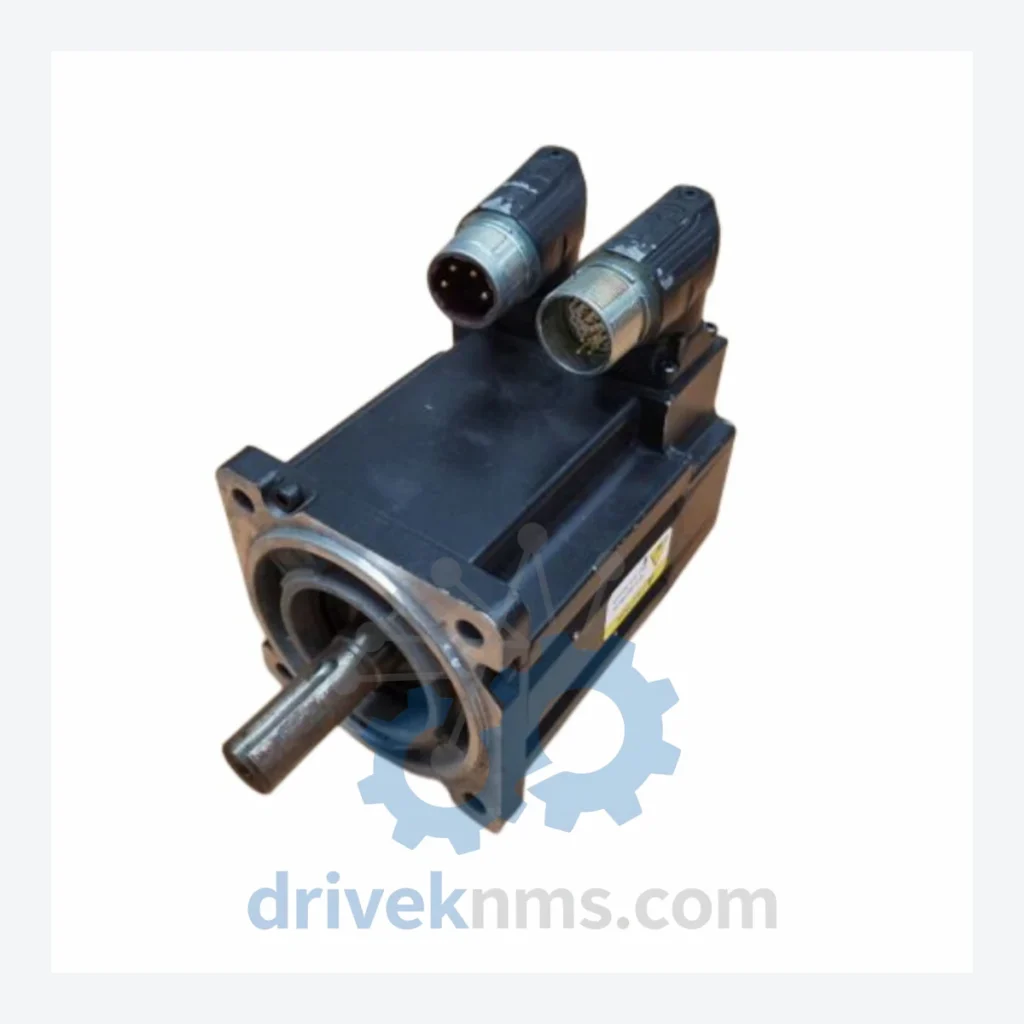

Allen-Bradley MPL-B310P-MJ72AA

Technical Dossier

Product Details And Specifications

Allen-Bradley MPL Series Technical Notes

The Allen-Bradley MPL (Medium Power Low-inertia) servo motor series, manufactured by Rockwell Automation, is a core motion control component deployed across global heavy industry — including petrochemical refineries, nuclear power auxiliary systems, offshore drilling platforms, and continuous-process chemical plants. The MPL series is engineered for integration with Rockwell's Kinetix servo drive family (Kinetix 2000, 5500, 6000, 6500), operating under the Integrated Motion on EtherNet/IP architecture. Its compact frame-to-torque ratio and multi-turn absolute feedback options make it a standard specification in OEM machine builds and plant-wide motion upgrades where axis count, cable management, and thermal envelope are critical constraints.

The Evolution of MPL Series Architecture

The transition from Kinetix 6000 (1394 legacy) to Kinetix 5500 and 5700 drives introduced STO (Safe Torque Off) SIL 2 compliance and EtherNet/IP native motion, replacing the SERCOS fiber ring topology. MPL motors manufactured after 2012 carry dual-port feedback connectors compatible with both legacy analog and digital feedback drives, providing a migration path without motor replacement. The MPL-B310P-MJ72AA specifically belongs to the B-frame (63 mm), 1.0 kW continuous power class, with a 460V AC input rating, standard inertia configuration, and multi-turn absolute encoder — positioning it as a direct-fit replacement in Kinetix 6000 and Kinetix 5500 axis modules.

As of 2024, the MPL series is classified by Rockwell Automation as Active Mature — meaning no new design wins are encouraged, but full spare parts and repair support remains available. Long-term maintenance planning should account for a 7–10 year remaining active support window before potential end-of-life designation.

MPL Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked MPL series servo motors. Each unit is a brushless AC permanent-magnet servo motor designed for Kinetix drive integration. Frame size, continuous stall torque, feedback type, and connector style vary by model.

MPL-B310P-MJ72AA: B-frame, 1.0 kW, 460V, multi-turn absolute encoder, flying-lead power connector, standard inertia.
MPL-B310P-HJ72AA: B-frame, 1.0 kW, 460V, high-resolution encoder, flying-lead, standard inertia.
MPL-B310P-SJ72AA: B-frame, 1.0 kW, 460V, single-turn absolute encoder, flying-lead, standard inertia.
MPL-B320P-MJ72AA: B-frame, 2.0 kW, 460V, multi-turn absolute encoder, flying-lead, standard inertia.
MPL-B320P-HJ72AA: B-frame, 2.0 kW, 460V, high-resolution encoder, flying-lead, standard inertia.
MPL-B430P-MJ72AA: B-frame, 3.0 kW, 460V, multi-turn absolute encoder, flying-lead, standard inertia.
MPL-B430P-HJ72AA: B-frame, 3.0 kW, 460V, high-resolution encoder, flying-lead, standard inertia.
MPL-B540P-MJ72AA: B-frame, 4.0 kW, 460V, multi-turn absolute encoder, flying-lead, standard inertia.
MPL-B540P-HJ72AA: B-frame, 4.0 kW, 460V, high-resolution encoder, flying-lead, standard inertia.
MPL-B540P-SJ72AA: B-frame, 4.0 kW, 460V, single-turn absolute encoder, flying-lead, standard inertia.
MPL-B680P-MJ72AA: B-frame, 6.0 kW, 460V, multi-turn absolute encoder, flying-lead, standard inertia.
MPL-B680P-HJ72AA: B-frame, 6.0 kW, 460V, high-resolution encoder, flying-lead, standard inertia.
MPL-A310P-MJ72AA: A-frame (40 mm), 0.5 kW, 460V, multi-turn absolute encoder, flying-lead, standard inertia.
MPL-A310P-HJ72AA: A-frame, 0.5 kW, 460V, high-resolution encoder, flying-lead, standard inertia.
MPL-A320P-MJ72AA: A-frame, 1.0 kW, 460V, multi-turn absolute encoder, flying-lead, standard inertia.
MPL-B310P-MK72AA: B-frame, 1.0 kW, 460V, multi-turn absolute encoder, keyed shaft, standard inertia.
MPL-B310P-MK74AA: B-frame, 1.0 kW, 460V, multi-turn absolute encoder, keyed shaft, with brake.
MPL-B320P-MK74AA: B-frame, 2.0 kW, 460V, multi-turn absolute encoder, keyed shaft, with brake.

Quality Control for the MPL Series Range

MPL series servo motors present specific inspection requirements due to their integrated feedback assemblies and precision bearing preload specifications. DriveKNMS applies the following test protocol to all MPL units processed through its facility:

Winding resistance and insulation test: Each phase winding is measured for resistance balance (tolerance ±5%) and insulation resistance to ground (minimum 100 MΩ at 500V DC megger test). Feedback integrity verification: Multi-turn absolute and high-resolution encoder outputs are verified using a Kinetix-compatible drive in test-bench configuration, confirming position data integrity across full shaft rotation. Bearing inspection: Axial and radial play is measured against Rockwell's published tolerance specifications; units exceeding limits are flagged for bearing replacement before dispatch. Brake function test (where applicable): Spring-applied holding brakes are cycled under rated voltage and verified for holding torque within ±10% of nameplate specification. Thermal label and nameplate audit: Catalog number, date code, and feedback type are cross-referenced against the physical unit to confirm no mislabeling from prior field service.
