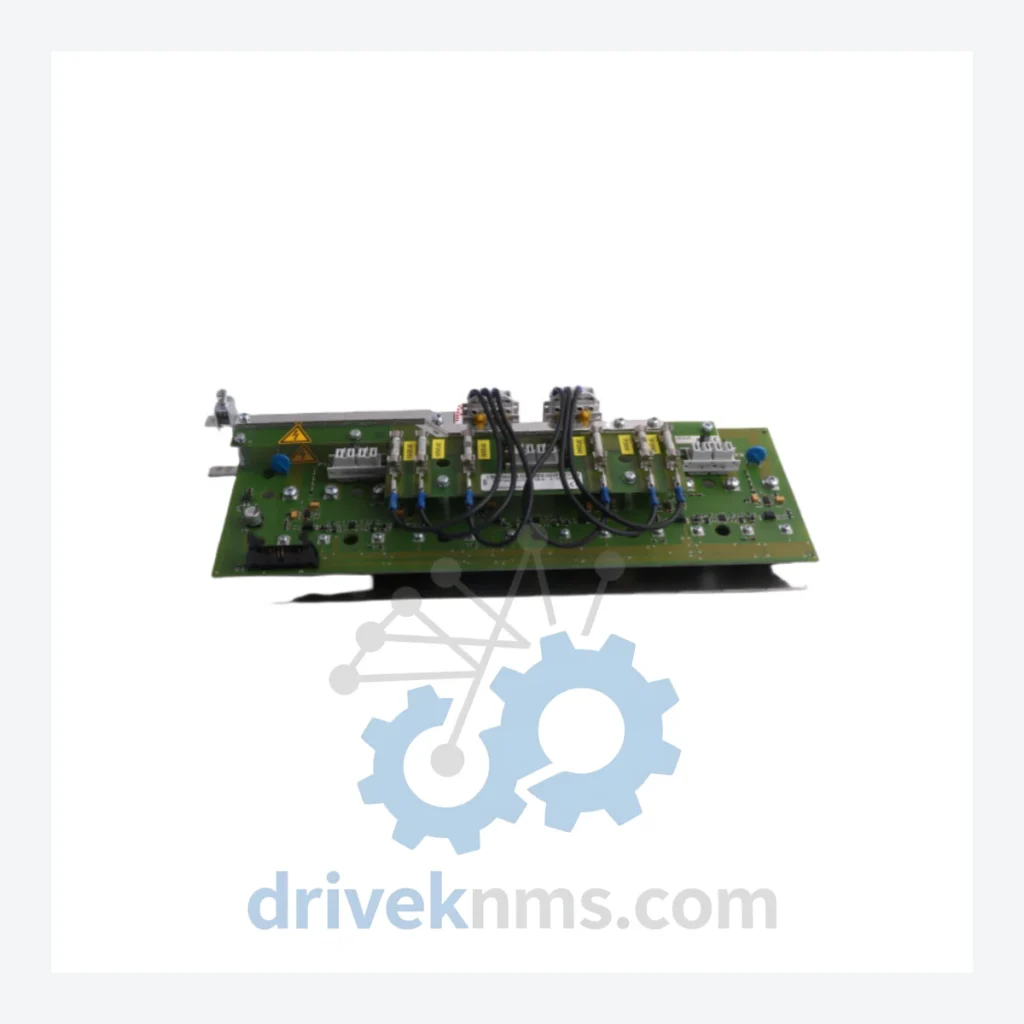

ABB 1SAY130130R0100 07SS91 Output Control Board – Obsolete AC500 Spare Part

Technical Dossier

Product Details And Specifications

ABB 1SAY130130R0100 07SS91 Output Control Board – Obsolete AC500 Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters not independently verified. Specifications are based on known series data. DriveKNMS does not publish unconfirmed figures. Contact us for datasheet documentation.

Solving the Discontinued Hardware Crisis

The ABB AC500 series was deployed extensively across process industries, utilities, and discrete manufacturing throughout the 1990s and 2000s. Many of these installations remain operational today — not because replacement is impossible, but because the cost and risk of replacement are prohibitive. The 1SAY130130R0100 07SS91 output control board sits at the core of these systems, managing the signal routing between the CPU and field devices. There is no modern equivalent that installs without engineering intervention.

Condition & Reliability Assurance

DriveKNMS applies a 5-step quality assurance process to all refurbished obsolete control hardware before dispatch review:

• Step 1 – Visual and Mechanical Inspection: Full board examination for physical damage, corrosion, burnt components, and connector integrity.
• Step 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in legacy control boards. Each unit is evaluated for capacitor condition; degraded capacitors are replaced with specification-matched components.
• Step 3 – Firmware Version Verification: Where applicable, firmware revision is confirmed against known compatible versions for the target system configuration.
• Step 4 – Pin and Connector Corrosion Remediation: All edge connectors and pin interfaces are cleaned and treated to ensure reliable electrical contact.
• Step 5 – Functional Load Test: The board undergoes powered functional testing under simulated operating conditions prior to packaging.

New (sealed) units are shipped in original or equivalent ESD-protective packaging with lot traceability documentation where available.

Key Features for System Maintenance

• Drop-in Replacement: The 1SAY130130R0100 07SS91 installs directly into the existing rack without hardware modification.
• No Reprogramming Required: Control logic, I/O mapping, and system configuration remain intact. Replacement does not trigger a re-commissioning event.
• Avoids Engineering Reconstruction Costs: Substituting a compatible spare eliminates the need for PLC platform migration, rewiring, and software porting — costs that routinely exceed the annual maintenance budget of a mid-sized facility.
• Extends Asset Service Life by 5–10 Years: A single verified spare, held in inventory, provides the operational continuity needed to defer capital replacement decisions until they are financially planned rather than forced.
• Supports Multi-Site Standardization: Facilities operating multiple AC500-based lines benefit from maintaining a shared spare pool, reducing per-site inventory cost while ensuring coverage across the installation base.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

How do I confirm the unit is genuine and not counterfeit?
All ABB parts sourced by DriveKNMS are traceable to verified supply channels. We provide lot documentation, inspection records, and, on request, third-party authentication for high-value orders. We do not source from unverified secondary markets.
