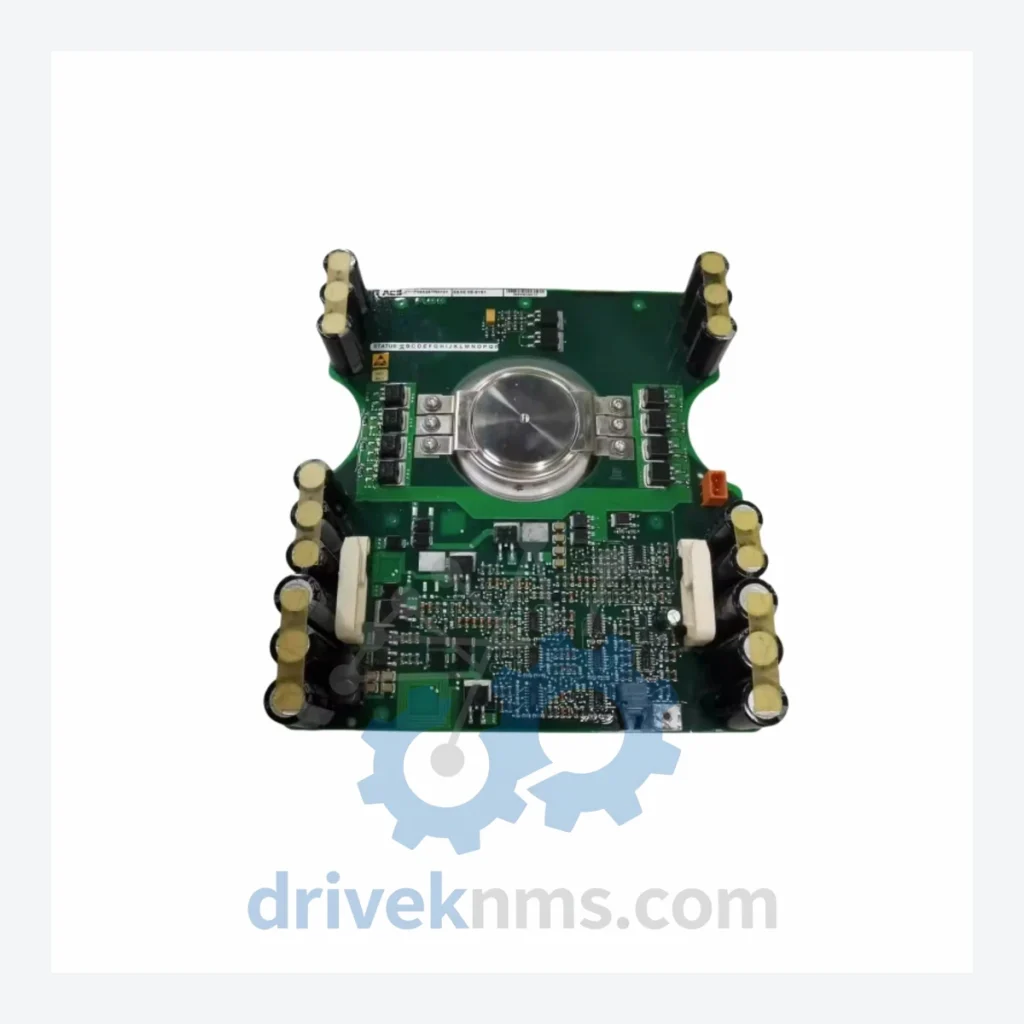

ABB 3BHB003387R0101 5SXE05-0151 5SHX08F4502 IGCT Thyristor Module

Technical Dossier

Product Details And Specifications

ABB 5SXE/5SHX Series Technical Notes

The specific module covered on this page — 3BHB003387R0101 / 5SXE05-0151 / 5SHX08F4502 — is a thyristor IGCT assembly used in ABB medium-voltage converter stacks. It combines the gate unit (5SXE) with the IGCT die assembly (5SHX) into a single replaceable power module.

The Evolution of 5SXE/5SHX Architecture

ABB introduced IGCT technology in the mid-1990s as a direct response to the limitations of GTO thyristors in high-power converter applications. The GTO required large, lossy snubber circuits and suffered from slow switching speeds. The IGCT — developed jointly by ABB Corporate Research and ABB Semiconductors (Lenzburg, Switzerland) — integrated the gate drive unit directly onto the device housing, enabling hard-driven turn-off without snubbers and switching frequencies up to 500 Hz at multi-megawatt power levels.

The 5SXE designation refers to the gate unit / driver assembly, while 5SHX refers to the IGCT press-pack die. Early generations (circa 1997–2003) were deployed in ACS1000 and MEGADRIVE platforms. Mid-generation units (2004–2012) introduced improved gate drive electronics with enhanced short-circuit protection. Current production units maintain backward mechanical compatibility with earlier converter stacks, but firmware and gate drive logic differ — making like-for-like replacement with the correct part number critical for safe operation.

As ABB has consolidated its semiconductor manufacturing and transitioned newer drive platforms toward IGBT-based topologies (e.g., ACS880 series), the 5SXE/5SHX series has entered a mature-to-declining lifecycle. Installed base support remains the primary demand driver. Sourcing genuine replacement modules from verified channels is the only reliable strategy for operators who cannot justify a full converter replacement.

5SXE / 5SHX Full Catalog & Functionalities (SKU List)

The following SKUs represent confirmed models within the ABB 5SXE gate unit and 5SHX IGCT die series. Each entry reflects a distinct electrical rating or mechanical configuration used across ABB's medium-voltage drive and converter product range.

5SXE05-0151 (3BHB003387R0101): Gate unit for 5SHX08F4502; matched pair for ACS1000/ACS5000 converter stacks.
5SXE10-0181: Gate unit for higher-current IGCT assemblies; used in ACS6000 and PCS6000 platforms.
5SXE08-0151: Intermediate gate unit variant; compatible with select ACS5000 phase modules.
5SHX08F4502: IGCT press-pack die, 4500V / 2000A; core switching element in ACS1000 inverter stacks.
5SHX08H6000: IGCT die, 6000V / 2000A; deployed in higher-voltage ACS5000 configurations.
5SHX10H6000: IGCT die, 6000V / 2500A; used in large-frame ACS6000 and MEGADRIVE-LCI.
5SHX14H4500: High-current IGCT die, 4500V / 3400A; found in heavy-duty steel mill drive systems.
5SHX26L4520: Large-diameter press-pack IGCT, 4500V / 2600A; used in utility-scale power conversion.
5SHX19L4500: IGCT die, 4500V / 1900A; mid-range current rating for chemical plant drives.
5SHX08F4502-0001: Variant suffix indicating specific lot/revision; functionally equivalent to base 5SHX08F4502.
5SXE05-0181: Gate unit variant with extended voltage range gate drive; used in retrofit applications.
5SHX12L4500: IGCT die, 4500V / 1200A; compact format for smaller ACS1000 frame sizes.
5SHX06F4502: Lower-current IGCT die, 4500V / 600A; auxiliary converter and excitation applications.
5SXE03-0151: Compact gate unit for lower-power IGCT assemblies in auxiliary drive systems.
5SHX04F4502: Entry-level IGCT die for low-power medium-voltage converter modules.
3BHB003387R0002: Assembly variant of the 5SXE05-0151 gate unit with revised PCB revision level.
3BHB016120R0001: Gate unit assembly for 5SHX10H6000; used in ACS6000 phase leg replacement kits.
3BHB021400R0001: Complete IGCT module assembly for MEGADRIVE-LCI high-current phase modules.

Sourcing Hard-to-Find & Obsolete 5SXE/5SHX Parts

For operators facing converter retirement pressure from their OEM, DriveKNMS provides a documented alternative: extend the operational life of your existing ACS1000 or ACS5000 by 5–10 years through a structured spare parts program. The capital cost of a replacement medium-voltage drive — including engineering, installation, and commissioning — typically ranges from USD 500,000 to over USD 2,000,000. A stocked set of critical IGCT modules, gate units, and control boards represents less than 1% of that figure and eliminates the primary failure risk.

Quality Control for the 5SXE/5SHX Range

IGCT modules are high-voltage, high-current press-pack devices. Verification requires specialized equipment and procedures that differ substantially from standard PCB-level testing.

DriveKNMS applies the following protocol to all 5SXE/5SHX units prior to dispatch:

1. Visual and mechanical inspection: Press-pack contact surfaces examined for pitting, contamination, or deformation. Gate unit housing checked for cracking or connector damage.
2. Gate drive PCB inspection: All electrolytic capacitors on the 5SXE gate unit PCB are inspected for bulging, leakage, or ESR degradation. Aged capacitors are replaced with rated equivalents.
3. Gate trigger circuit verification: Gate pulse waveform tested against ABB specification using calibrated gate drive tester. Rise time, amplitude, and pulse width verified.
4. Insulation resistance test: Hi-pot test applied between gate and cathode terminals to verify dielectric integrity of the press-pack assembly.
5. Firmware and revision check: Gate unit PCB revision documented and cross-referenced against the target drive platform's compatibility matrix to prevent mismatched gate drive logic.
