ABB 3BHE024415R0101 C714 A101 MVAC Drive Board – Obsolete ACS Series Spare Part

When an ABB MVAC drive control board fails on the production floor, the clock starts immediately. A replacement sourced through the wrong channel — or worse, no replacement at all — forces plant management into a decision no one wants to make: emergency system upgrade. For facilities running ABB ACS-series medium-voltage AC drives integrated into aging DCS or SCADA architectures, that upgrade path carries a price tag measured in millions. Engineering redesign, new cabling infrastructure, requalification of safety interlocks, retraining of operators — none of it is fast, and none of it is cheap.

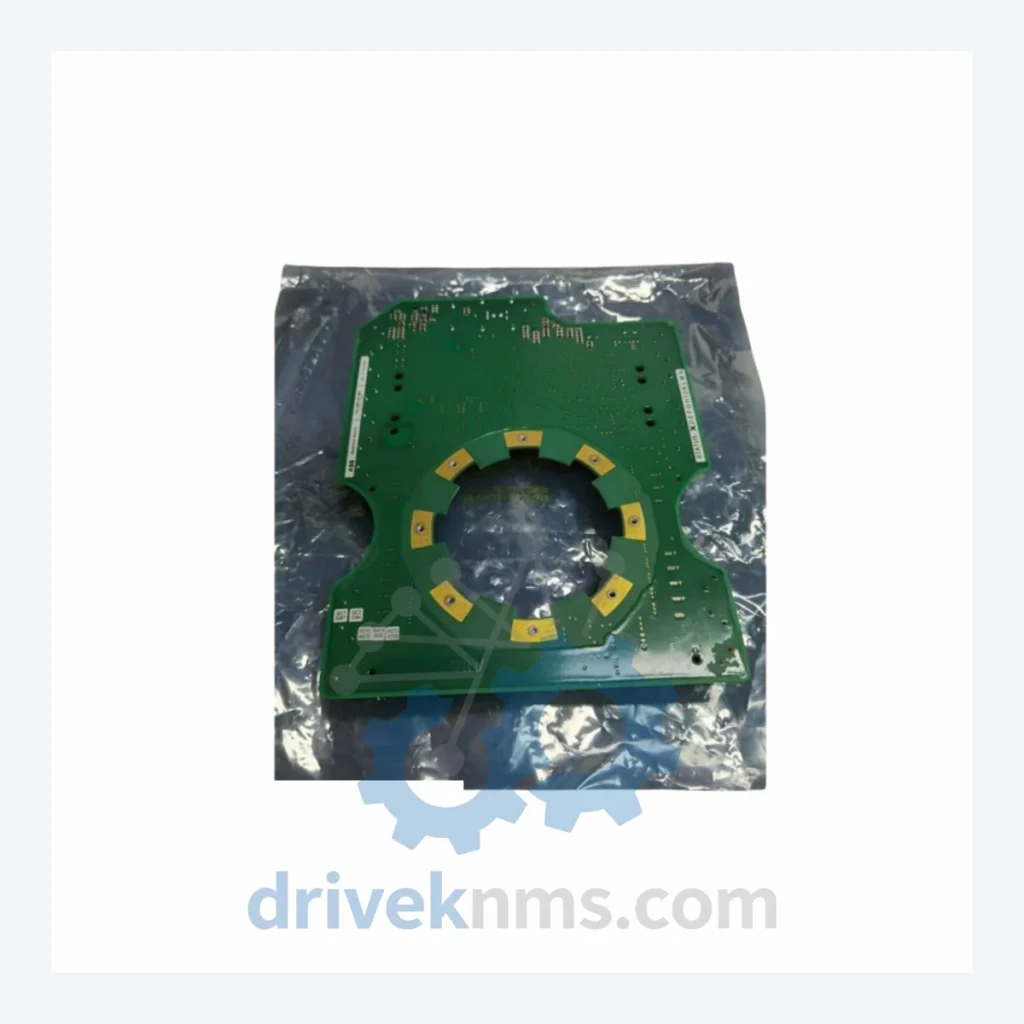

The ABB 3BHE024415R0101, board revision C714 A101, is a MVAC drive control assembly used in ABB's medium-voltage ACS drive platforms. DriveKNMS holds RFQ-reviewed sourcing status of this board. Securing one unit today is a direct hedge against that multi-million-dollar exposure.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters specific to this board revision are verified during our QA process. Confirmed specifications are provided upon request with test documentation. No unverified parameters are published.

Solving the Discontinued Hardware Crisis

ABB's medium-voltage ACS drive platforms have been the backbone of heavy industrial processes — cement mills, mining conveyors, water treatment pump stations, steel rolling lines — for decades. The 3BHE024415R0101 control board sits at the core of the drive's command and feedback architecture. It is not a peripheral component. When it fails, the drive does not degrade gracefully; it stops.

DriveKNMS operates specifically in this second space. We source, test, and supply obsolete ABB drive components to industrial facilities that have made the rational decision to protect their existing capital assets rather than replace them prematurely.

Condition & Reliability Assurance

Obsolete boards sourced from the secondary market carry inherent risk if they are not properly evaluated before installation. DriveKNMS applies a five-stage inspection protocol to every unit of the 3BHE024415R0101 before it leaves our facility.

Stage 1 – Visual and Physical Inspection: Full board examination for mechanical damage, pin corrosion, solder joint integrity, and connector condition. Boards with oxidized or pitted connector pins are rejected at this stage.

Stage 2 – Electrolytic Capacitor Assessment: Electrolytic capacitors are the primary age-related failure point on control boards that have been in storage or light service. Each capacitor is checked for ESR (equivalent series resistance) deviation and capacitance loss. Units showing degradation beyond tolerance are recapped before proceeding.

Stage 3 – Firmware Version Verification: Where applicable, onboard firmware or EPROM content is verified against known-good reference versions for the C714 A101 revision. Mismatched or corrupted firmware is a common cause of intermittent faults in refurbished boards.

Stage 4 – Functional Bench Test: The board is powered and exercised through its primary control functions under controlled bench conditions. Communication interfaces and I/O response are verified.

Stage 5 – Documentation and Serialization: Each unit is assigned a test record documenting inspection findings, capacitor measurements, firmware status, and functional test results. This record ships with the unit.

Key Features for System Maintenance

The 3BHE024415R0101 C714 A101 is a direct board-level replacement for the original assembly. Installation does not require drive parameter re-entry, PLC program modification, or changes to the upstream control system. The drive recognizes the replacement board through its existing hardware identification protocol.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

How Securing This Spare Part Extends Your Asset Life by 5–10 Years

The economic life of a medium-voltage drive is not determined by the drive's mechanical condition. It is determined by the availability of its critical control components. A drive with a sound power section and a failed control board is non-functional. A drive with a sound power section and a verified spare control board on the shelf has an extended operational horizon measured in years, not months.

The practical framework for extending ACS-series drive life through component procurement is straightforward. Identify the boards and modules within the drive that have no current OEM supply path. Quantify the production value at risk if those components fail without a replacement available. Compare that exposure to the cost of holding verified spares. For any facility where a single drive failure represents more than a few days of lost production, the arithmetic consistently favors spare procurement.

DriveKNMS works with maintenance engineering teams and procurement departments at facilities running legacy ABB drive infrastructure to identify critical spares, verify availability, and structure supply agreements that provide long-term coverage. The goal is not a single transaction. The goal is a defensible maintenance strategy that keeps capital equipment in service for the duration of its useful mechanical life.

Q: Can you support multi-unit or repeat RFQ requests?
A: Yes. Send the model list, target quantity and destination so DRIVEKNMS can review sourcing options and quote the requirement as a project RFQ.

Can this board be used across different ACS drive frame sizes?
Compatibility is specific to the drive model and software version. DriveKNMS will confirm compatibility with your specific drive configuration before dispatch review. Provide your drive nameplate data and existing board part number when inquiring.
