ABB 3BHE041294R0103 Control Board – Obsolete AC800M Spare Part

Technical Dossier

Product Details And Specifications

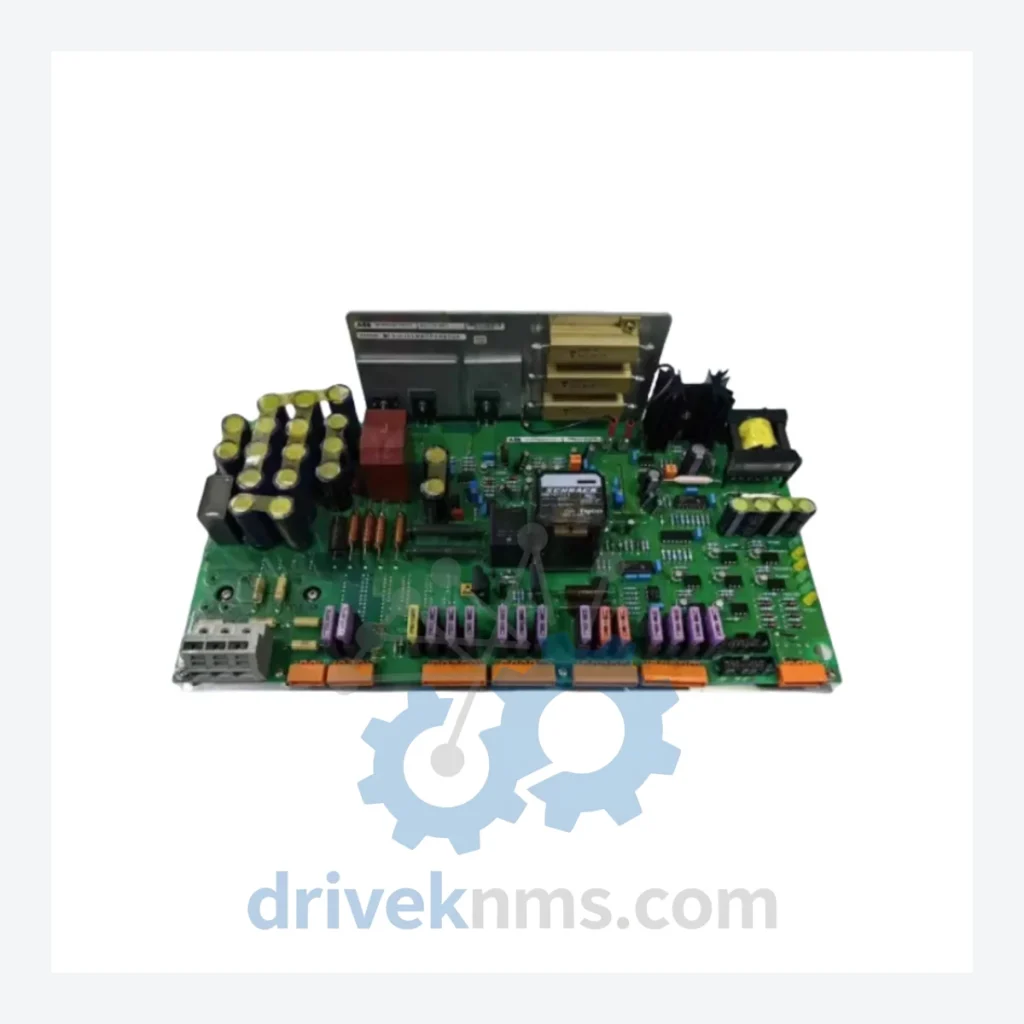

ABB 3BHE041294R0103 Control Board – Obsolete AC800M Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters not independently verified. Specifications above are based on known series data. Buyers are advised to cross-reference with original ABB documentation prior to installation.

Solving the Discontinued Hardware Crisis

The ABB AC800M platform was deployed extensively across oil & gas, pulp & paper, power generation, and chemical processing facilities from the late 1990s through the 2010s. Many of these installations remain fully operational and economically justified — the control logic is proven, the operators are trained, and the process is stable. The 3BHE041294R0103 control board sits at the center of this architecture. It handles real-time process data acquisition, inter-module communication, and execution of control strategies that took years to develop and validate.

How to Extend Automation Asset Life by 5–10 Years with Critical Spare Parts

For plant managers facing pressure to retire aging DCS infrastructure, the financial case for a targeted spare parts strategy is straightforward. A single 3BHE041294R0103 control board, secured now at secondary market pricing, can defer a multi-million dollar system migration by five to ten years — provided the rest of the platform remains mechanically and electrically sound.

The following maintenance framework applies directly to AC800M-based systems:

Condition & Reliability Assurance

DriveKNMS applies a five-step quality assurance process to all refurbished obsolete control boards before dispatch review:

• Step 1 – Visual and mechanical inspection: Full examination of PCB surface, connector pins, solder joints, and housing integrity. Units with physical damage are rejected at this stage.
• Step 2 – Electrolytic capacitor assessment: Capacitors are the primary failure point in aged control electronics. Each unit is evaluated for capacitor bulging, leakage, and ESR deviation. Boards with degraded capacitors are either recapped with equivalent-spec components or rejected.
• Step 3 – Firmware version verification: The installed firmware revision is read and documented. Customers are provided with this information prior to shipment to allow compatibility confirmation against their installed system.
• Step 4 – Pin and connector corrosion check: All edge connectors and backplane pins are inspected under magnification and cleaned to IPC-A-610 standards where applicable.
• Step 5 – Functional power-on test: Where test fixtures are available for the AC800M series, boards are powered and basic communication functions are verified before packaging.

New (sealed) units are shipped in original or equivalent ESD-protective packaging with documentation of source and storage conditions.

Key Features for System Maintenance

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.
