ABB Panel 800 Operator Interface Modules: 3BSE042236R1

Technical Dossier

Product Details And Specifications

ABB Panel 800 Series Technical Notes

The ABB Panel 800 series is ABB's primary human-machine interface (HMI) platform, deployed across heavy industrial sectors including petrochemical refineries, nuclear power auxiliary systems, pulp and paper mills, and offshore oil and gas platforms. Engineered to integrate natively with ABB's AC 800M DCS controllers and System 800xA distributed control architecture, Panel 800 units serve as the primary operator interface layer in process-critical environments where uptime requirements exceed 99.9%. The series spans compact 5.7-inch units to large-format 19-inch industrial displays, all rated for continuous 24/7 operation in harsh environments (IP65 front panel, wide temperature range). Global installed base exceeds tens of thousands of units, making Panel 800 one of the most widely maintained HMI platforms in the process automation industry.

The Evolution of Panel 800 Architecture

The Panel 800 platform was introduced in the early 2000s as a replacement for ABB's earlier OP series operator panels, which relied on proprietary serial communication protocols. The first-generation Panel 800 units (PP835, PP836) used a Windows CE embedded OS and communicated via MMS (Manufacturing Message Specification) over Ethernet to AC 800M controllers. These units were widely deployed in System 800xA v4.x and v5.x environments.

The second generation introduced the PP8xx-series with improved ARM-based processors, higher-resolution resistive touchscreens, and expanded memory for larger graphic displays. Communication compatibility was extended to include OPC DA/UA, Modbus TCP, and PROFINET, enabling integration with third-party PLCs alongside native ABB DCS systems.

As of 2020, ABB has transitioned newer installations toward the Panel 800 Plus (PP8xxP) and the web-based Compact HMI platform. Many first- and second-generation Panel 800 units are now in the mature/end-of-life phase. ABB's official spare parts support for early PP835/PP836 models has been reduced, making third-party lifecycle support providers critical for plant operators running extended maintenance cycles of 10–20 years.

Panel 800 Full Catalog & Functionalities (SKU List)

The following SKUs represent the core Panel 800 product range. All models are classified by function and form factor:

Operator Panel Units (HMI Displays)

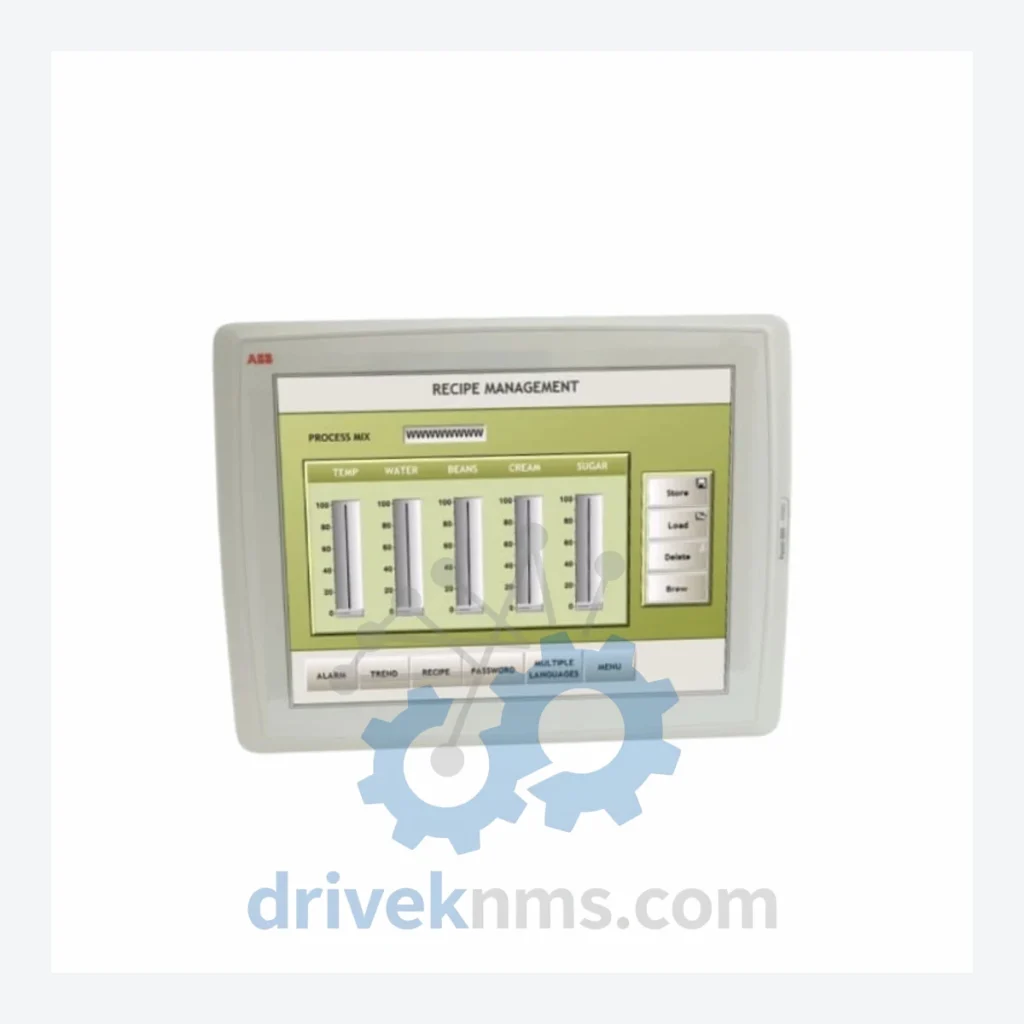

• 3BSE042236R1: PP836 Operator Panel 800, 10.4-inch TFT color touchscreen, Windows CE, Ethernet MMS
• 3BSE042235R1: PP835 Operator Panel 800, 8.4-inch TFT color touchscreen, Windows CE, dual Ethernet
• 3BSE069401R1: PP836A Operator Panel 800, 10.4-inch, upgraded ARM processor, extended temperature range
• 3BSE069402R1: PP836B Operator Panel 800, 10.4-inch, enhanced flash memory, USB host port
• 3BSE042237R1: PP837 Operator Panel 800, 12.1-inch TFT color touchscreen, Windows CE 6.0
• 3BSE042238R1: PP838 Operator Panel 800, 15-inch TFT color touchscreen, high-brightness display option
• 3BSE069403R1: PP845 Operator Panel 800 Plus, 5.7-inch compact touchscreen, DIN-rail mountable
• 3BSE069404R1: PP846 Operator Panel 800 Plus, 7-inch widescreen TFT, IP65 front, PROFINET ready
• 3BSE069405R1: PP848 Operator Panel 800 Plus, 10.1-inch widescreen, Windows Embedded Standard 7
• 3BSE069406R1: PP851 Operator Panel 800 Plus, 12.1-inch, multi-touch capacitive screen, OPC UA client
• 3BSE069407R1: PP855 Operator Panel 800 Plus, 15-inch, stainless steel bezel option, ATEX zone 2 variant available
• 3BSE069408R1: PP865 Operator Panel 800 Plus, 19-inch large-format display, redundant power input

Communication & Connectivity Modules

• 3BSE013208R1: CI854A PROFIBUS DP Communication Interface, connects Panel 800 to PROFIBUS field devices
• 3BSE025255R1: CI856 Ethernet Adapter Module, 100 Mbps, for legacy Panel 800 network expansion
• 3BSE038415R1: CI858 DNP3 Communication Interface, used in utility and power distribution HMI applications

Power Supply & Accessories

• 3BSE040662R1: SD833 Power Supply Unit, 24 VDC, 5A, for Panel 800 cabinet installations
• 3BSE028604R1: Panel 800 Mounting Frame Kit, 19-inch rack mount adapter for PP836/PP837 series

Sourcing Hard-to-Find & Obsolete Panel 800 Parts

DriveKNMS provides: original-spec replacement units, board-level repair for common PP836 display and backlight failures, firmware version matching for legacy 800xA system compatibility, and emergency urgent RFQ handling for critical plant shutdowns.

Quality Control for the Panel 800 Range

Panel 800 units present specific testing challenges due to their integrated touchscreen digitizer, embedded OS, and Ethernet MMS communication stack. DriveKNMS applies a structured multi-stage test protocol to all Panel 800 units prior to shipment:

• Power-on and boot verification: Unit must complete full Windows CE / WES7 boot sequence within manufacturer-specified time limits.
• Touchscreen calibration test: Full 9-point calibration grid verification; resistive digitizer linearity checked against ±2mm tolerance.
• Display uniformity check: TFT backlight brightness uniformity measured; units with >15% luminance variance are rejected.
• Ethernet MMS communication test: Unit is connected to an AC 800M controller emulator; OPC DA tag read/write cycle is verified at 1-second scan rate.
• USB and serial port functional test: All I/O ports verified for correct enumeration and data throughput.
• Thermal soak test: Units operated at 50°C ambient for 4 hours to screen for latent component failures.
• Firmware version documentation: Firmware revision recorded and matched to customer's 800xA system version requirements before dispatch.
