ABB 3HNE Series Robot Control Boards

Technical Dossier

Product Details And Specifications

ABB 3HNE Series Technical Notes

The ABB 3HNE series encompasses a range of robot control boards and interface modules deployed across ABB's IRC5, S4C, and S4C+ robot controller platforms. These modules are installed in high-criticality industrial environments including automotive body-in-white assembly lines, chemical processing facilities, nuclear fuel handling systems, and offshore oil & gas platforms. The 3HNE designation covers printed circuit board assemblies responsible for axis control, safety supervision, I/O interfacing, and inter-board communication within ABB's modular controller architecture. Global installed base estimates place ABB industrial robots—many running 3HNE-series boards—at over 400,000 units across more than 53 countries, making lifecycle support for this series a sustained operational requirement for maintenance engineers worldwide.

The Evolution of 3HNE Architecture

ABB's robot controller electronics have progressed through three distinct hardware generations since the mid-1990s, each introducing changes in backplane bus topology, processor architecture, and safety certification level.

S4 / S4C Era (1994–2002): Early 3HNE-prefix boards were introduced alongside the S4 and S4C controller cabinets. These boards used a proprietary parallel backplane bus and were designed around Motorola 68000-series processors. Inter-board communication relied on dedicated ribbon cable harnesses. Boards from this era are now fully discontinued by ABB and carry no active repair support from the OEM.

S4C+ Era (2000–2008): The S4C+ platform retained physical compatibility with many S4C enclosures but introduced updated DSP-based axis computer boards and revised safety boards compliant with EN 954-1 Category 3. Several 3HNE part numbers were revised or superseded during this transition. Cross-compatibility between S4C and S4C+ boards is model-specific and must be verified against ABB's compatibility matrix before substitution.

IRC5 Era (2004–present): The IRC5 controller introduced a modular drive unit architecture and a new RAPID programming environment. 3HNE-series boards in the IRC5 context handle functions including the main computer board, axis computer, safety board, and I/O expansion. IRC5 boards use a serial fieldbus backplane (DeviceNet / EtherNet/IP variants) rather than the parallel bus of earlier generations. Some 3HNE part numbers span both S4C+ and early IRC5 applications, requiring careful revision-level verification.

As of 2026, ABB has announced end-of-active-production for the majority of S4C+ 3HNE boards. IRC5 boards remain in active production but are subject to component-level revision changes that affect interchangeability. Maintenance teams operating mixed fleets of S4C+ and IRC5 robots must maintain separate spare pools for each platform generation.

3HNE Full Catalog & Functionalities (SKU List)

The following SKUs represent confirmed 3HNE-series part numbers associated with ABB S4C, S4C+, and IRC5 robot controller platforms.

Controllers & Main Computer Boards

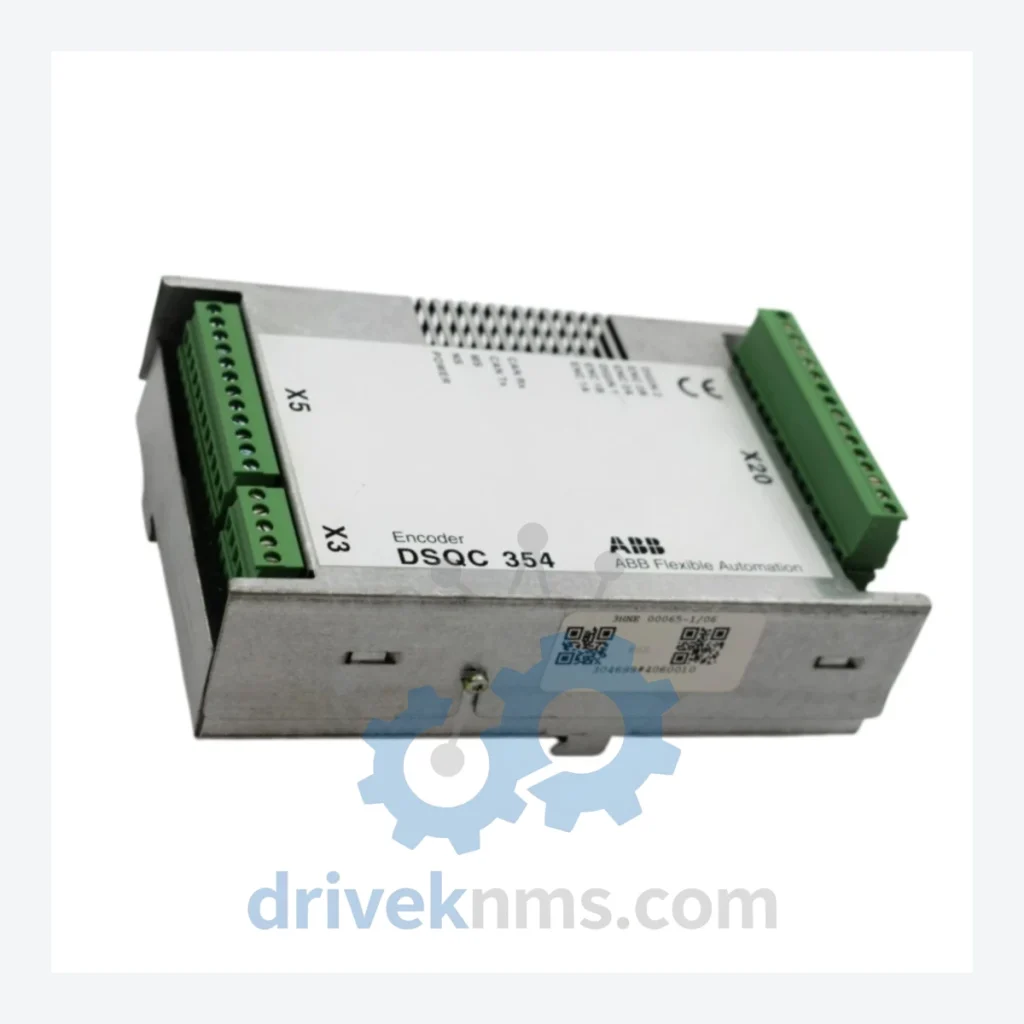

• 3HNE00065-1: Robot control board; main axis supervisory PCB for S4C+ platform, manages motion interpolation and safety interlocks.
• 3HNE00313-1: Main computer board IRC5; primary CPU module running RAPID runtime and system supervision for IRC5 single-cabinet controller.
• 3HNE00024-1: Axis computer board S4C+; dedicated DSP processor for 6-axis coordinated motion control in S4C+ cabinets.
• 3HNE00025-1: Axis computer board variant; alternate revision of 3HNE00024-1 with updated firmware ROM, used in later S4C+ production runs.
• 3HNE00001-1: Robot computer board S4C; early-generation main controller PCB for S4 and S4C platforms, Motorola 68040-based architecture.

Safety & Supervision Boards

• 3HNE00105-1: Safety board IRC5; dual-channel safety supervision module, EN 954-1 Cat. 3 / IEC 62061 SIL 2 rated, monitors E-stop, safeguard, and speed supervision circuits.
• 3HNE00106-1: Safety board variant IRC5; updated revision with expanded diagnostic logging and compatibility with SafeMove option.
• 3HNE00033-1: Panel board S4C+; operator panel interface PCB managing teach pendant connection, mode selector, and emergency stop chain.
• 3HNE00034-1: Panel board variant; revised panel interface for S4C+ cabinets with updated connector layout for FlexPendant compatibility.

I/O Modules & Interface Boards

• 3HNE00200-1: I/O board IRC5; 16DI/16DO digital I/O expansion module for IRC5 controller, DeviceNet addressable.
• 3HNE00201-1: Analog I/O board IRC5; 4AI/4AO analog interface module for process signal integration in IRC5 systems.
• 3HNE00055-1: Fieldbus adapter board; DeviceNet master/slave communication adapter for S4C+ platform, supports up to 64 nodes.
• 3HNE00056-1: PROFIBUS adapter board S4C+; DP master interface for integration with Siemens S7 and other PROFIBUS-based PLC systems.
• 3HNE00300-1: EtherNet/IP adapter IRC5; industrial Ethernet communication board for IRC5, supports implicit and explicit messaging.

Power Supply & Drive Interface Boards

• 3HNE00080-1: Power distribution board S4C+; internal DC bus distribution PCB managing 24VDC logic supply and drive enable signals.
• 3HNE00081-1: Rectifier interface board; AC input supervision and soft-start control board for S4C+ drive section.
• 3HNE00400-1: Drive interface board IRC5; axis drive communication board linking main computer to individual servo drive modules in IRC5 drive unit.

Sourcing Hard-to-Find & Obsolete 3HNE Series Parts

ABB's official spare parts program provides active support only for IRC5-generation 3HNE boards currently in production. S4C and S4C+ boards have been progressively removed from ABB's active catalog since 2018, with the majority now classified as no longer available (NLA) through standard OEM channels. This creates a documented supply gap for the estimated global installed base of S4C+ robots still in productive operation.

Quality Control for the 3HNE Range

3HNE series boards present specific test challenges due to their integration of high-speed DSP processors, dual-channel safety logic, and proprietary backplane communication protocols. Standard bench testing is insufficient to validate these boards to operational specification.

DriveKNMS applies the following test protocol to all 3HNE boards processed through our facility:
