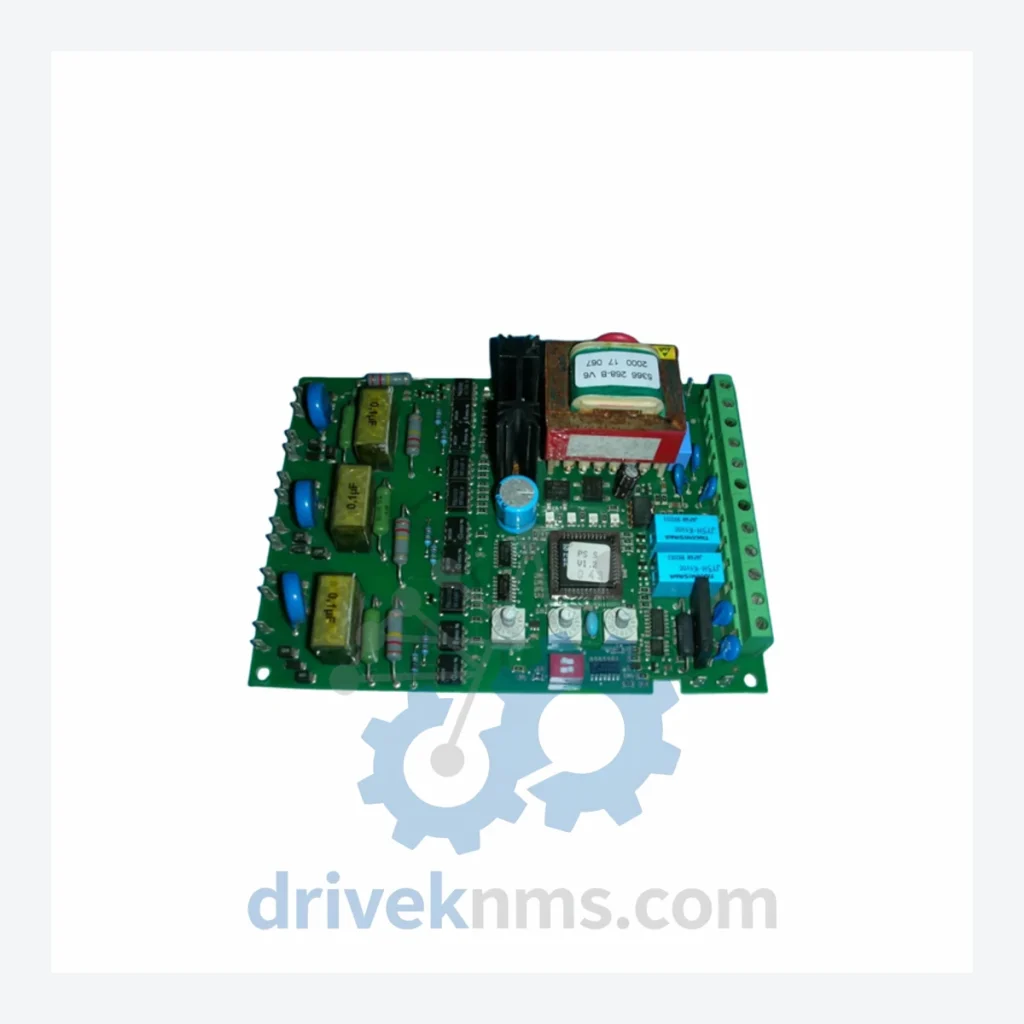

ABB Advant OCS / MOD 300 DCS I/O Modules – 5366268-AB/2

Technical Dossier

Product Details And Specifications

ABB Advant OCS / MOD 300 Series Technical Notes

The ABB Advant OCS (Open Control System) and its predecessor platform MOD 300 represent one of the most widely deployed Distributed Control System (DCS) architectures in global heavy industry. Installed across petrochemical refineries, nuclear power stations, offshore platforms, pulp and paper mills, and large-scale chemical processing facilities, the Advant OCS / MOD 300 platform has accumulated decades of field-proven reliability. The 5366268-AB/2 is a representative I/O module within this ecosystem, designed for direct integration into the Advant OCS backplane architecture. ABB's modular I/O philosophy — separating signal conditioning, marshalling, and controller logic into discrete, replaceable units — made this platform the reference standard for process industries requiring high-availability, redundant control loops with deterministic scan times.

The Evolution of Advant OCS / MOD 300 Architecture

The MOD 300 platform was introduced by Taylor Instruments in the early 1980s and subsequently acquired by ABB, forming the foundation of the Advant OCS product line. The architecture evolved through three distinct generations. The first generation (MOD 300 Rev. 1–3) used proprietary MODCELL bus communication with parallel backplane addressing, supporting analog I/O densities of 8–16 channels per module. The second generation introduced the Advant Fieldbus (AF 100) and MasterBus 300 communication layers, enabling peer-to-peer controller communication without a central arbiter. The third generation integrated PROFIBUS-DP and FOUNDATION Fieldbus H1 adapters, extending the platform's service life into the 2000s and 2010s.

Compatibility across generations is constrained by backplane bus voltage levels (5 VDC logic vs. 24 VDC field power), module slot addressing schemes, and firmware revision dependencies. Substituting a module across major hardware revisions requires verification of the backplane revision code, the controller firmware version, and the I/O database configuration in the Advant Engineering Station (AES). Failure to validate these parameters results in non-recognition of the module at startup or incorrect scaling of process values.

Advant OCS / MOD 300 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked modules within the ABB Advant OCS / MOD 300 platform. Each entry is classified by functional category.

Analog Input Modules (AI)

• 5366268-AB/2: Analog input I/O module, multi-channel, DCS backplane-mount, field signal conditioning for 4–20 mA process loops.
• 5373994-A: 8-channel analog input module, 4–20 mA / 1–5 VDC, with HART pass-through capability.
• 5373994-B: 16-channel analog input module, enhanced resolution, for high-density marshalling cabinets.
• 5374007-A: Thermocouple / RTD analog input module, supports J, K, T, E type TC and Pt100 RTD inputs.
• 5374007-B: High-accuracy RTD input module, 8-channel, 0.1°C resolution, for temperature-critical process loops.

Analog Output Modules (AO)

• 5374013-A: 8-channel analog output module, 4–20 mA, loop-powered, with open-circuit detection.
• 5374013-B: 16-channel analog output module, 4–20 mA, for high-density valve positioner applications.
• 5374020-A: Analog output module with HART communication, supports field device diagnostics via secondary variable.

Digital Input Modules (DI)

• 5374031-A: 32-channel digital input module, 24 VDC, dry contact / wet contact selectable, for discrete process status signals.
• 5374031-B: 32-channel digital input module, 120 VAC, for motor control center (MCC) status feedback.
• 5374038-A: 16-channel digital input module, SOE (Sequence of Events) capable, 1 ms time-stamp resolution.

Digital Output Modules (DO)

• 5374044-A: 16-channel digital output module, 24 VDC, solid-state relay, for solenoid valve and pilot light control.
• 5374044-B: 8-channel digital output module, relay contact, 120/240 VAC, 2A per channel, for high-current switching.

Controller / CPU Modules

• 5374050-A: Advant Controller 160 (AC 160) CPU module, primary controller for mid-size process units, supports redundant configuration.
• 5374050-B: AC 160 redundant CPU module, hot-standby, bumpless transfer on primary failure.

Communication & Fieldbus Adapter Modules

• 5374060-A: MasterBus 300 communication adapter, peer-to-peer DCS network interface, 1 Mbit/s token-ring topology.
• 5374067-A: PROFIBUS-DP master adapter module, supports up to 125 slave devices per segment.
• 5374074-A: FOUNDATION Fieldbus H1 linking device, 2-segment, for migration to FF-based field instruments.

Power Supply Modules

• 5374080-A: 24 VDC backplane power supply module, 10A, with redundant input capability and diagnostic LED array.
• 5374080-B: Redundant power supply module, hot-swap capable, for continuous-availability process control cabinets.

Sourcing Hard-to-Find & Obsolete Advant OCS / MOD 300 Parts

ABB formally discontinued active production of the MOD 300 / Advant OCS hardware platform. Replacement parts are no longer available through standard ABB distribution channels for the majority of module types. DriveKNMS maintains a dedicated inventory of tested, pull-out, and refurbished Advant OCS / MOD 300 modules sourced from decommissioned plant assets globally. Our procurement network covers North America, Western Europe, and Southeast Asia, enabling access to low-volume, high-specificity part numbers that are not available through general industrial distributors.

For end-users operating plants with a planned operational horizon of 5–15 years beyond the platform's end-of-life date, DriveKNMS provides lifecycle extension support including: bulk spare parts procurement and bonded storage, module-level repair and refurbishment with functional test certification, cross-reference identification for partial substitutions where hardware revisions permit, and documentation support for obsolete module configuration parameters.

Quality Control for the Advant OCS / MOD 300 Range

The Advant OCS / MOD 300 platform uses a proprietary backplane bus with multiplexed address and data lines operating at 5 VDC logic levels. Standard bench power-up testing is insufficient to validate module functionality in this architecture. DriveKNMS applies a platform-specific test protocol for all Advant OCS / MOD 300 modules prior to shipment:

• Backplane bus simulation: Each module is inserted into a live Advant OCS test rack running a validated controller firmware version. Module recognition, address assignment, and I/O database registration are confirmed before any functional test proceeds.
• Channel-level signal injection: For analog input modules, calibrated 4–20 mA signals are applied to each channel individually. Output linearity, zero offset, and span accuracy are measured against the module's original factory specification sheet.
• Digital I/O state verification: All digital input channels are exercised through both logic states. Output modules are loaded with resistive test loads at rated current to verify solid-state relay or contact integrity.
• Communication bus integrity check: For MasterBus 300 and PROFIBUS adapter modules, bus termination impedance, token-passing behavior, and data frame integrity are verified using a protocol analyzer.
• Thermal soak: Modules are operated at elevated ambient temperature (50°C) for a minimum of 2 hours to screen for latent component failures associated with aged electrolytic capacitors and EPROM data retention.
