ABB 5SHX 0445D0001 3BHL000382P0101 Drive Board – Obsolete ACS/DCS Series Spare Part

Technical Dossier

Product Details And Specifications

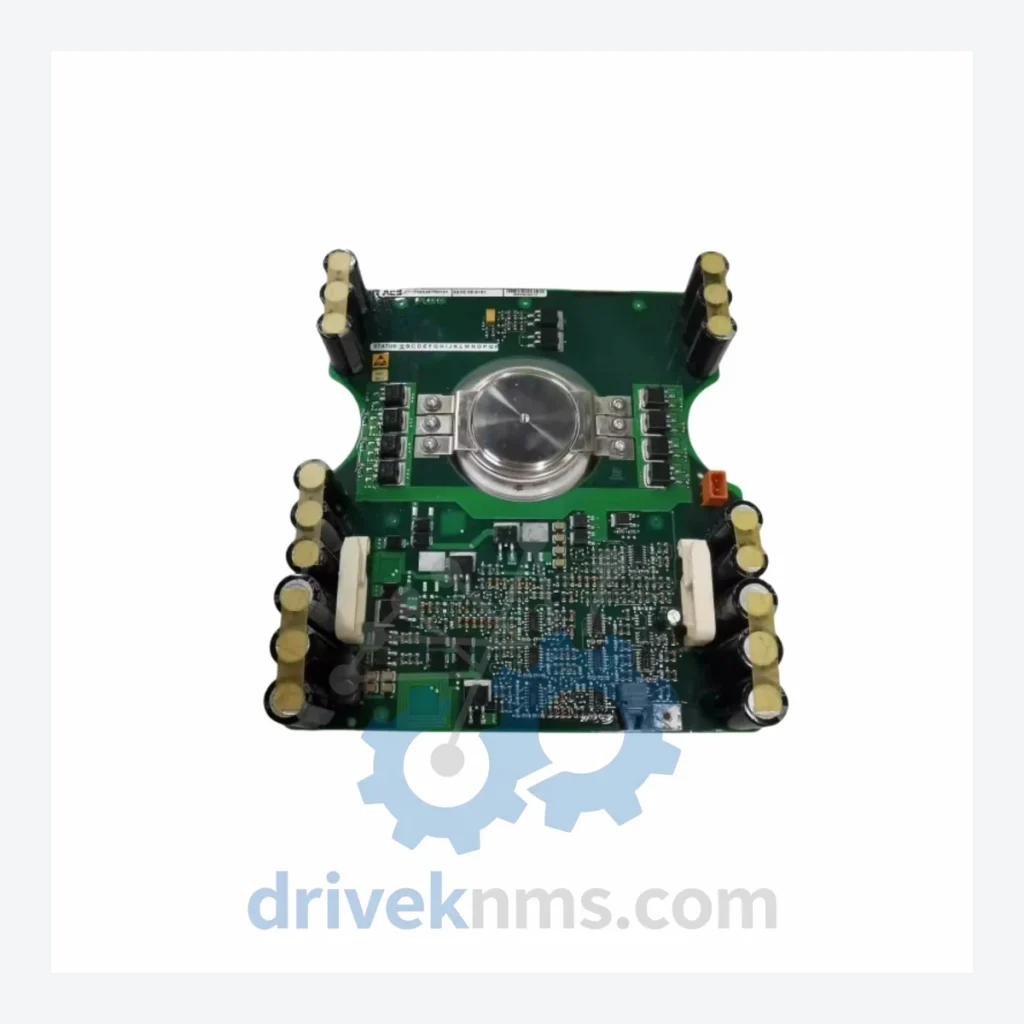

ABB 5SHX 0445D0001 3BHL000382P0101 Drive Board – Obsolete ACS/DCS Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Condition & Reliability Assurance

Sourcing a discontinued board from the secondary market carries legitimate risk. DriveKNMS applies a 5-step verification protocol to every unit before it leaves our facility:

• Step 1 – Visual and Physical Inspection: Full board examination for mechanical damage, burn marks, delamination, and solder joint integrity under magnification.
• Step 2 – Electrolytic Capacitor Assessment: Capacitors are the primary aging component on drive boards. Each electrolytic capacitor is tested for capacitance drift and ESR (equivalent series resistance) against original specification tolerances. Boards with out-of-spec capacitors are either recapped or rejected.
• Step 3 – Firmware and EPROM Verification: Where applicable, onboard firmware versions are confirmed against known-good references to prevent compatibility mismatches with the host drive's control board.
• RFQ terms review: Commercial terms are confirmed during RFQ review based on model, condition, documentation, quantity and destination.
• Step 5 – Functional Bench Test: Boards are powered under controlled conditions and gate drive output signals are verified prior to packaging.

Key Features for System Maintenance

• Drop-in Replacement: The 5SHX 0445D0001 / 3BHL000382P0101 is a direct form-fit-function replacement for the original board. No hardware modifications to the drive cabinet are required.
• No Reprogramming Required: The board does not store drive-specific parameters. Replacement does not require re-entry of motor data, PID tuning values, or communication settings held in the drive's main control unit.
• Avoids Engineering Rework: Substituting a compatible but non-identical board from a different generation or manufacturer requires engineering validation, updated documentation, and in many jurisdictions, re-certification of the safety system. A verified OEM-equivalent spare eliminates that cost entirely.
• Project RFQ support: Multi-unit and mixed-model requirements can be reviewed as one RFQ with sourcing options confirmed before quotation.

Q: How do I confirm this is a genuine ABB board and not a counterfeit?
A: Every unit we supply includes photographic documentation of the board's ABB part markings, date codes, and serial number (where present). We source exclusively from verified industrial decommissioning projects, authorized liquidators, and OEM overstock channels. Certificates of conformity are available on request.
