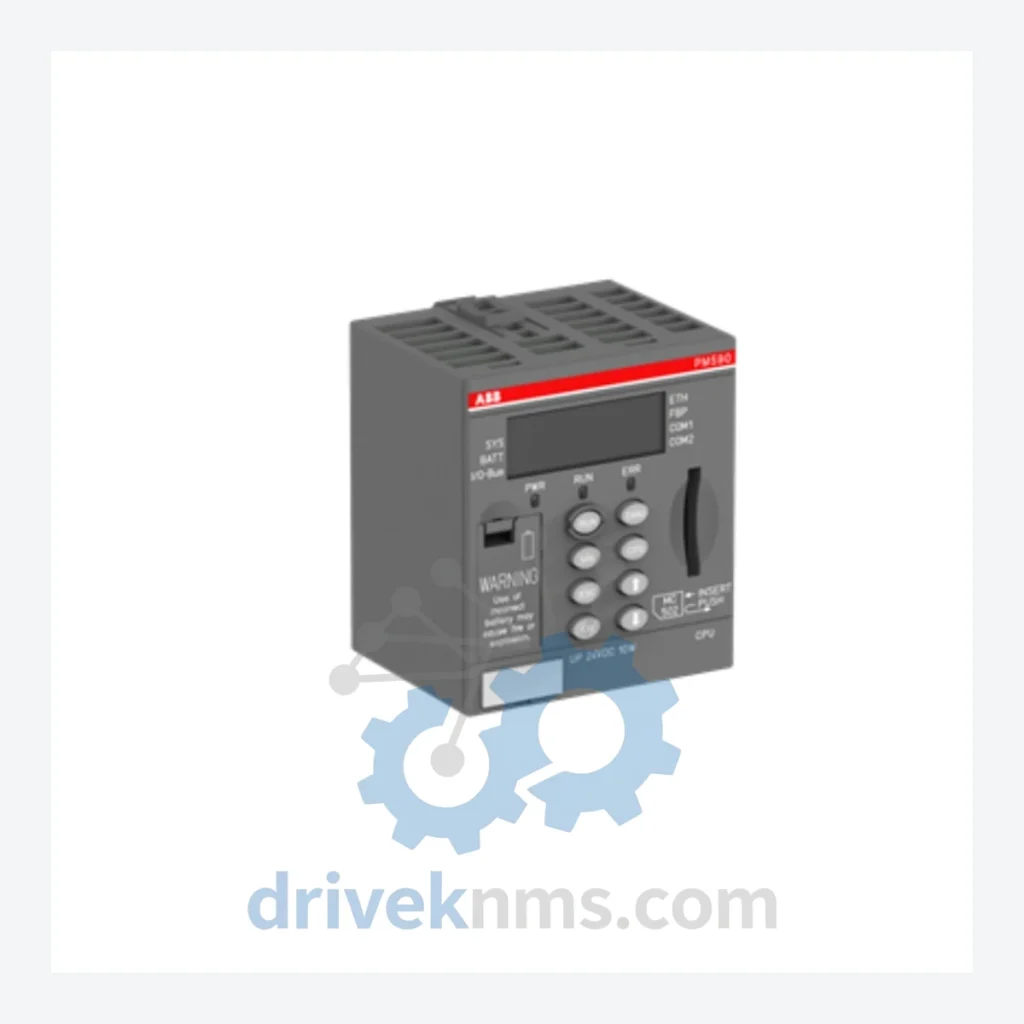

ABB AC500 Modules: 1SAP150100R0100 CPU & Full Series

Name: ABB AC500 Modules: 1SAP150100R0100 CPU & Full Series
Brand: ABB

Model: 1SAP150100R0100

Brand ABB

Series AC500

Model 1SAP150100R0100

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

ABB AC500 Series Technical Notes

The ABB AC500 is a scalable, modular programmable logic controller platform deployed across global heavy industry sectors including petrochemical refineries, nuclear power facilities, offshore platforms, pulp and paper mills, and water treatment infrastructure. With installations spanning more than 25 countries, the AC500 series represents ABB's primary mid-to-high range PLC offering, engineered for deterministic real-time control, high-availability redundancy configurations, and seamless integration with ABB's System 800xA distributed control environment. Its modular backplane architecture supports hot-swap I/O expansion, multi-protocol fieldbus communication, and IEC 61131-3 compliant programming across all CPU tiers.

AC500 Full Catalog & Functionalities (SKU List)

CPU Modules

1SAP150100R0100 (PM554-T): Entry-level AC500 CPU, 256KB program memory, onboard PROFIBUS-DP master, 1x Ethernet, SD card slot.
1SAP150200R0100 (PM554-T-ETH): PM554 variant with dual Ethernet ports and enhanced communication stack.
1SAP151100R0100 (PM556-T): Mid-range CPU, 512KB program memory, onboard PROFIBUS-DP, 1x Ethernet, extended I/O addressing.
1SAP151200R0100 (PM556-T-ETH): PM556 with dual Ethernet, PROFINET IO controller, Modbus TCP server.
1SAP152100R0100 (PM564-T): High-performance CPU, 1MB program memory, multi-master PROFIBUS-DP, dual Ethernet, real-time clock.
1SAP152200R0100 (PM564-T-ETH): PM564 with extended fieldbus licensing including EtherNet/IP adapter.
1SAP155100R0100 (PM566-T): Top-tier AC500 V2 CPU, 4MB program memory, 4x task scheduling, dual Ethernet, PROFINET IRT support.

Digital Input (DI) Modules

1SAP220000R0001 (DI524): 16-channel 24VDC digital input, S500 bus, 0.2ms input filter, LED status per channel.
1SAP220100R0001 (DI572): 32-channel 24VDC digital input, high-density S500 module, group diagnostics.
1SAP221000R0001 (DI581-S): 16-channel SIL 2 safety digital input, TÜV-certified, dual-channel evaluation.

Digital Output (DO) Modules

1SAP240000R0001 (DO524): 16-channel 24VDC/0.5A transistor output, S500 bus, short-circuit protection per channel.
1SAP241000R0001 (DO581-S): 8-channel SIL 2 safety digital output, TÜV-certified, current monitoring.

Analog Input (AI) Modules

1SAP250000R0001 (AI523): 8-channel analog input, ±10V / 0–20mA / 4–20mA selectable, 12-bit resolution, S500 bus.
1SAP250100R0001 (AI531): 8-channel analog input, 16-bit resolution, RTD/thermocouple support, cold junction compensation.

Analog Output (AO) Modules

1SAP260000R0001 (AO523): 4-channel analog output, ±10V / 0–20mA selectable, 12-bit resolution, S500 bus.

Communication & Fieldbus Adapters

1SAP178100R0001 (CI501-PNIO): PROFINET IO device adapter for S500 I/O stations, MRP ring support.
1SAP178200R0001 (CI502-PNIO): PROFINET IO controller/device combo adapter, dual-port switch.
1SAP178500R0001 (CI504-PNIO): PROFINET IRT adapter, isochronous real-time, for motion-critical applications.
1SAP178600R0001 (CI541-DP): PROFIBUS-DP slave adapter for S500 remote I/O stations.

Power Supply Modules

1SAP178000R0001 (PS501): 24VDC system power supply for AC500 CPU rack, 3A output, diagnostic LED.
1SAP178050R0001 (PS502): 24VDC redundant power supply module, hot-swap capable, for high-availability configurations.

Quality Control for the AC500 Range

AC500 modules present specific test challenges due to their integrated S500 backplane bus, dual Ethernet PHY layers, and onboard PROFIBUS-DP ASIC. DriveKNMS applies a structured multi-stage verification protocol to all AC500 units prior to dispatch. Each CPU module undergoes power-on self-test (POST) verification, firmware version confirmation, and full I/O bus communication test using a live S500 I/O rack. Ethernet ports are tested for link negotiation, packet integrity, and PROFINET IO device enumeration. PROFIBUS-DP master functionality is verified against a physical DP slave network at 1.5Mbit/s and 12Mbit/s baud rates. Analog I/O modules are calibrated against NIST-traceable reference standards with full 16-point linearity verification. Safety-rated modules (AC500-S) are tested against their SIL 2 diagnostic coverage specifications. All test results are logged and supplied with each unit as part of the shipment documentation package.
