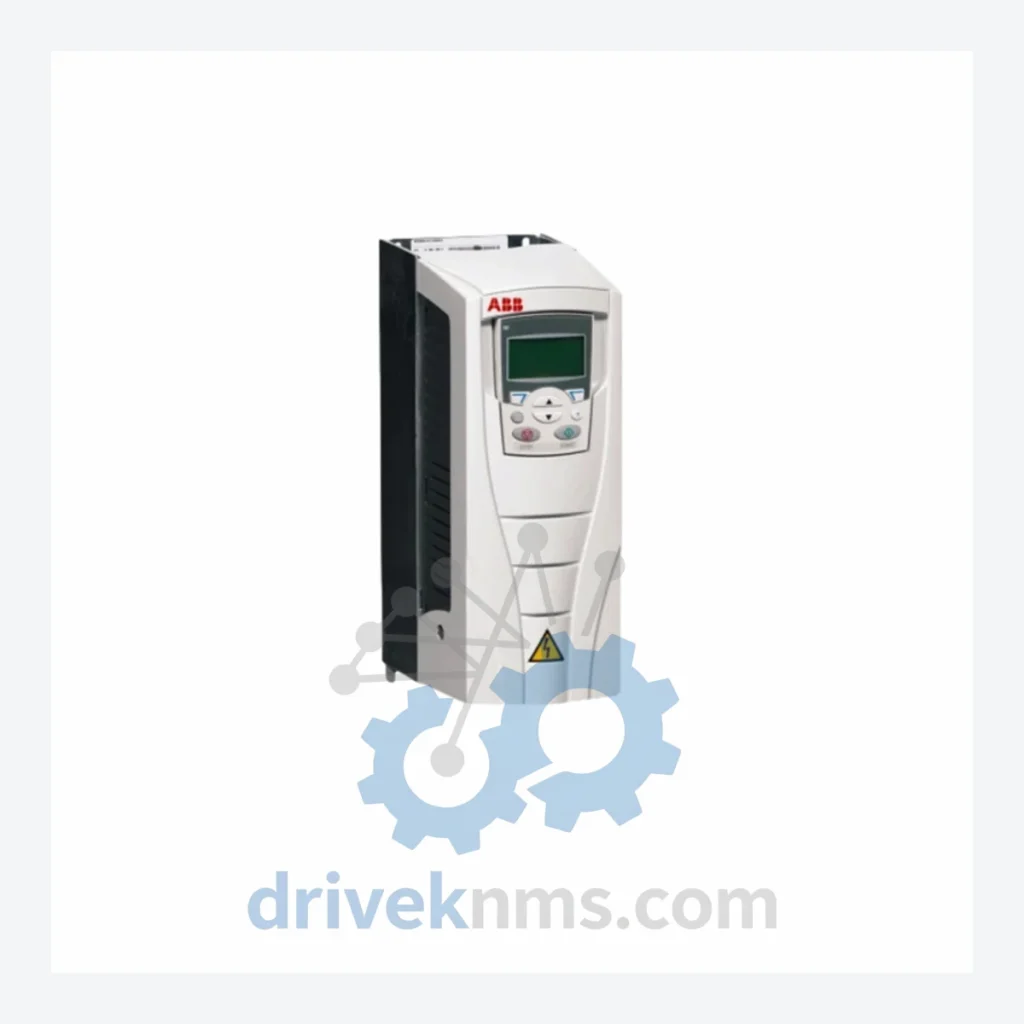

ABB ACS510 Variable Frequency Drives: ACS510-01-07A2-4 3KW

Technical Dossier

Product Details And Specifications

ABB ACS510 Series Technical Notes

The ABB ACS510 is a general-purpose AC variable frequency drive (VFD) designed for pump and fan applications in heavy industrial environments. Deployed across chemical processing plants, nuclear auxiliary systems, oil refineries, water treatment facilities, and HVAC infrastructure worldwide, the ACS510 series occupies a critical position in the global installed base of low-voltage drives. Its operating range spans 0.75 kW to 160 kW (400V three-phase), making it one of the most widely specified drives in the 1–100 kW segment across Europe, Asia-Pacific, and the Middle East. The series is compliant with IEC 61800-5-1 and carries CE, UL, and cUL certifications, enabling deployment in regulated industrial facilities without additional certification overhead.

The Evolution of ACS510 Architecture

The ACS510 was introduced by ABB as a successor to the ACS400 series, consolidating pump/fan-optimized control logic into a unified hardware platform. The core architecture is built around ABB's Direct Torque Control (DTC) variant adapted for quadratic torque loads, with an integrated EMC filter (C2 category) and a built-in RFI filter as standard on most frame sizes. The control board runs ABB's standard application macro system, supporting pre-configured macros for 3-wire control, alternating drives, PID control, and motor potentiometer functions without external programming tools.

Frame sizes range from R1 (smallest, sub-2.2 kW) through R6 (largest, up to 160 kW), with IP21 and IP54 enclosure options. The drive's fieldbus architecture supports PROFIBUS-DP, Modbus RTU, DeviceNet, and LonWorks via plug-in adapter modules (FPBA, FMBA, FDNA, FLNA respectively), enabling integration into both legacy DCS environments and modern SCADA systems. The ACS510 entered its mature/end-of-active-production phase; ABB's current recommended replacement platform is the ACS580 series for new installations. However, the ACS510 remains in active service at thousands of sites globally, and spare parts, repair, and lifecycle extension support remain commercially critical.

ACS510 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified, commonly stocked models within the ACS510-01 (400V three-phase input) product line. All models share the same control architecture; differentiation is by power rating and frame size.

ACS510-01-03A3-4: 1.1 kW / 3A, Frame R1, 400V 3-phase input, IP21 enclosure, standard EMC filter included.
ACS510-01-04A1-4: 1.5 kW / 4.1A, Frame R1, 400V 3-phase, compact footprint for panel-mount pump starters.
ACS510-01-05A6-4: 2.2 kW / 5.6A, Frame R1, 400V 3-phase, suitable for small centrifugal pump and fan duty.
ACS510-01-07A2-4: 3 kW / 7.2A, Frame R2, 400V 3-phase, standard general-purpose pump/fan VFD, IP21.
ACS510-01-09A4-4: 4 kW / 9.4A, Frame R2, 400V 3-phase, common HVAC fan drive replacement unit.
ACS510-01-012A-4: 5.5 kW / 12A, Frame R2, 400V 3-phase, mid-range pump duty with built-in PID controller.
ACS510-01-015A-4: 7.5 kW / 15.4A, Frame R3, 400V 3-phase, widely used in water treatment booster pump stations.
ACS510-01-023A-4: 11 kW / 23A, Frame R3, 400V 3-phase, industrial fan and compressor auxiliary drive.
ACS510-01-031A-4: 15 kW / 31A, Frame R4, 400V 3-phase, cooling tower fan and chilled water pump applications.
ACS510-01-038A-4: 18.5 kW / 38A, Frame R4, 400V 3-phase, process pump duty in chemical and petrochemical plants.
ACS510-01-046A-4: 22 kW / 46A, Frame R4, 400V 3-phase, standard for large HVAC air handling unit drives.
ACS510-01-060A-4: 30 kW / 60A, Frame R5, 400V 3-phase, refinery cooling water pump and condenser fan duty.
ACS510-01-072A-4: 37 kW / 72A, Frame R5, 400V 3-phase, high-demand industrial pump applications with fieldbus integration.
ACS510-01-088A-4: 45 kW / 88A, Frame R5, 400V 3-phase, large centrifugal fan and blower control in power generation auxiliaries.
ACS510-01-125A-4: 75 kW / 125A, Frame R6, 400V 3-phase, heavy-duty pump and fan drive for large industrial plant infrastructure.
ACS510-01-157A-4: 90 kW / 157A, Frame R6, 400V 3-phase, upper-range model for high-power fan and pump systems in utilities.
ACS510-01-195A-4: 132 kW / 195A, Frame R6, 400V 3-phase, maximum-range standard model for large industrial HVAC and process pump duty.

Quality Control for the ACS510 Range

Each ACS510 unit processed by DriveKNMS undergoes a structured test protocol before dispatch. Power-on functional testing is performed at rated voltage with a resistive load bank to verify output phase balance, switching frequency stability, and thermal management performance. Control board communication is verified via Modbus RTU using a standardized parameter read/write sequence covering all macro configurations. For units with fieldbus adapter modules (FPBA-01, FMBA-01, FDNA-01), protocol-level communication tests are performed using dedicated master simulators.
