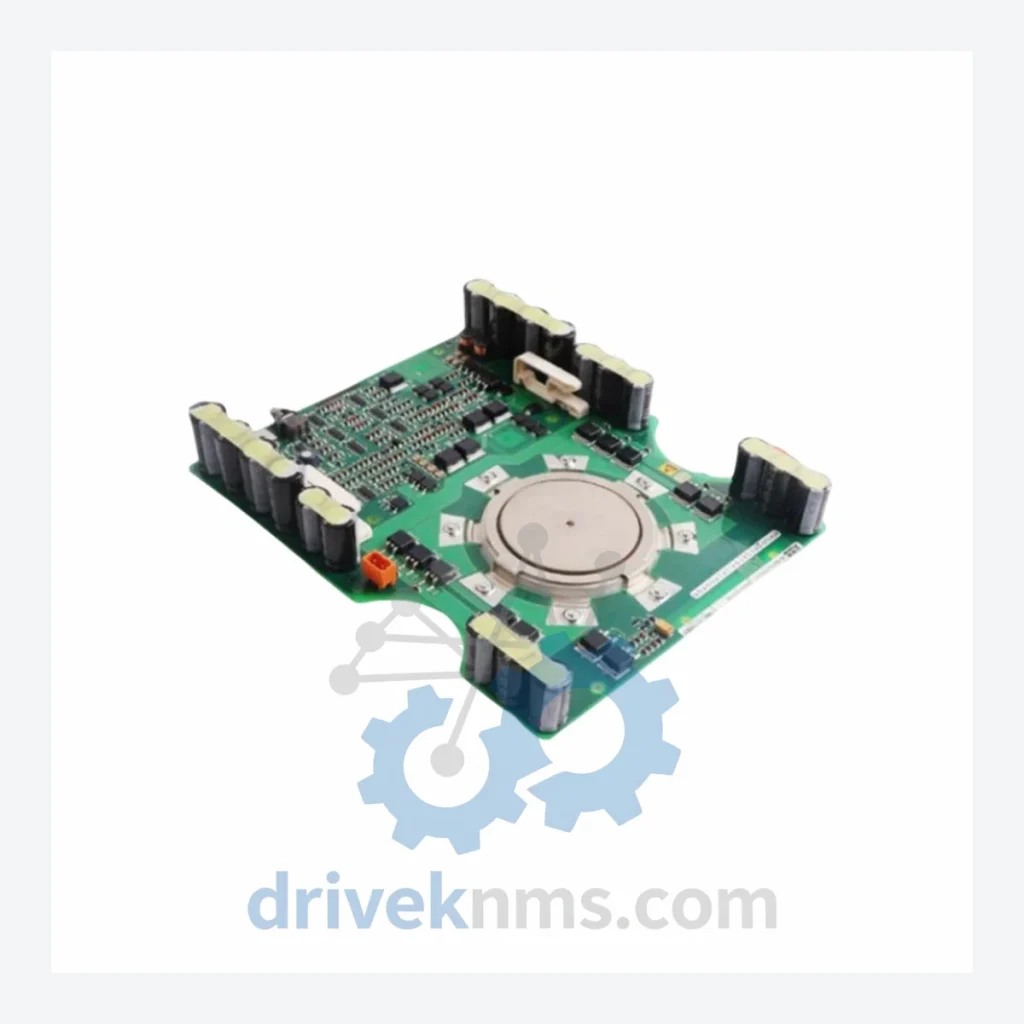

ABB ACS800 / GV C700 Series Drive Boards & Modules: 3BHB004027R0101

Name: ABB ACS800 / GV C700 Series Drive Boards & Modules: 3BHB004027R0101
Brand: ABB

Model: GV C700 AE01 3BHB004027R0101

Brand ABB

Series ACS800 / GV C700 Series &

Model GV C700 AE01 3BHB004027R0101

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

ABB GV C700 Series Technical Notes

The ABB GV C700 series represents a core component family within ABB's industrial drive and DCS architecture, deployed extensively across global heavy industry sectors including petrochemical refineries, nuclear power auxiliary systems, offshore platforms, and large-scale chemical processing plants. The 3BHB004027R0101 (AE01 function block) is a drive board module used in ABB's high-power converter and excitation control platforms, providing gate-drive signal conditioning and interface functions between the control layer and the power semiconductor stage.

ABB's GV C700 hardware platform has been integrated into installations with operational lifespans exceeding 20 years, making long-term spare parts availability a critical procurement concern for plant maintenance engineers and reliability teams worldwide.

The Evolution of GV C700 Architecture

The GV C700 board family was developed as part of ABB's modular drive control philosophy, designed to interface with the UNITROL, ACS800, and ACS6000 converter platforms. Early iterations of the C700 series used discrete analog signal conditioning circuits; subsequent revisions introduced FPGA-based gate-drive logic and enhanced fault diagnostics via fiber-optic communication links.

The AE01 designation within the 3BHB004027R0101 identifies the board's functional role as an analog/excitation interface module. Compatibility across C700 sub-revisions requires careful cross-referencing of hardware revision codes (R0101, R0102, etc.), as firmware dependencies and backplane connector pinouts differ between generations. Replacement of C700 boards in legacy installations must account for firmware version alignment with the host controller (e.g., UNITROL 6000 or ACS800 RDCU control units).

As the GV C700 platform has entered its mature/end-of-production lifecycle, ABB no longer manufactures certain sub-variants. DriveKNMS maintains a dedicated inventory of tested, refurbished, and new-surplus C700 modules to support lifecycle extension programs.

GV C700 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced modules within the ABB GV C700 and associated drive board ecosystem. Each entry reflects a distinct functional role within the converter or excitation control architecture:

3BHB004027R0101: AE01 drive board; analog excitation interface for ACS800/UNITROL platforms
3BHB004027R0102: AE01 Rev.2 drive board; updated gate-drive timing logic, drop-in replacement
3BHB013088R0001: AGDR-71C gate driver board; IGBT gate-drive unit for ACS800 power modules
3BHB013088R0002: AGDR-71C Rev.2; enhanced short-circuit protection gate driver
3BHB016138R0001: AINT-02C analog interface board; current/voltage feedback signal conditioning
3BHB016138R0002: AINT-02C Rev.2; extended input range analog interface
3BHB024577R0001: APBU-44C pulse encoder interface board; HTL/TTL encoder input module
3BHB024577R0002: APBU-44C Rev.2; dual-channel encoder interface with fault relay
3BHB028788R0001: RDCU-02C control unit; main CPU board for ACS800 multi-drive systems
3BHB028788R0002: RDCU-02C Rev.2; expanded memory, enhanced fieldbus support
3BHB031681R0001: IOEC-04 I/O extension board; 16DI/8DO digital expansion module
3BHB031681R0002: IOEC-04 Rev.2; optically isolated digital I/O expansion
3BHB033936R0001: APOW-01C auxiliary power supply board; 24VDC internal bus supply
3BHB033936R0002: APOW-01C Rev.2; redundant power path auxiliary supply
3BHB040040R0001: AIMA-01C analog I/O module; 4AI/2AO ±10V/4–20mA configurable
3BHB040040R0002: AIMA-01C Rev.2; galvanically isolated analog I/O with diagnostics
3BHB041800R0001: AFCI-01C fiber-optic communication interface; DDCS protocol adapter
3BHB041800R0002: AFCI-01C Rev.2; dual-channel fiber-optic, extended baud rate support

Quality Control for the GV C700 Range

GV C700 drive boards present specific test challenges due to their multi-layer PCB construction, high-density SMD components, and dependency on synchronized backplane communication signals for functional verification. DriveKNMS applies the following test protocol to all C700 series modules:
