ABB AGDR-71C Series: Comprehensive Module Range and Technical Overview

The ABB AGDR-71C is a gate driver and control board series designed for high-power IGBT modules used in ABB's ACS800, ACS600, and related industrial drive platforms. These boards are deployed across global heavy industry sectors including petrochemical refineries, nuclear auxiliary systems, offshore platforms, pulp and paper mills, and steel rolling mills. The AGDR-71C interfaces directly with Infineon and ABB-branded IGBT power stacks — including the FS450R12KE3, FS300R12KE3, and FS225R12KE3 families — providing isolated gate drive signals, fault feedback, and DC bus monitoring. Its installed base spans installations from the mid-1990s through the 2010s, making it one of the most widely maintained legacy drive components in the ABB ecosystem.

The Evolution of AGDR-71C Architecture

The AGDR-71C belongs to ABB's second-generation gate driver board lineage, succeeding the AGDR-61C and preceding the AGDR-81C used in ACS880 platforms. Early variants (circa 1995–2002) were paired with GTO-based and first-generation IGBT stacks in ACS600 drives. The board architecture uses fiber-optic signal isolation between the control board (AINT, AINP, RDCU) and the power stage, a design choice that remained consistent across hardware revisions to ensure backward compatibility within the same drive frame size.

Key architectural transitions include the shift from through-hole to mixed SMD/through-hole PCB construction in mid-series revisions, updated gate resistor arrays for compatibility with lower-threshold IGBT generations, and revised fault latch logic to support faster short-circuit protection (DESAT detection). Compatibility between AGDR-71C revisions and specific IGBT stacks must be verified by part number suffix — the "/AGDR71C S" suffix on the FS450R12KE3 denotes a factory-matched assembly sold as a combined gate driver and power module unit.

For installations still running ACS800 or ACS600 drives, the AGDR-71C has no direct drop-in replacement in ABB's current catalog. Migration to ACS880 requires full drive replacement, making long-term spare parts availability the primary maintenance strategy for existing installations.

AGDR-71C Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the ABB AGDR-71C gate driver ecosystem and associated IGBT power module assemblies. Each entry reflects a distinct functional role within the drive power stage.

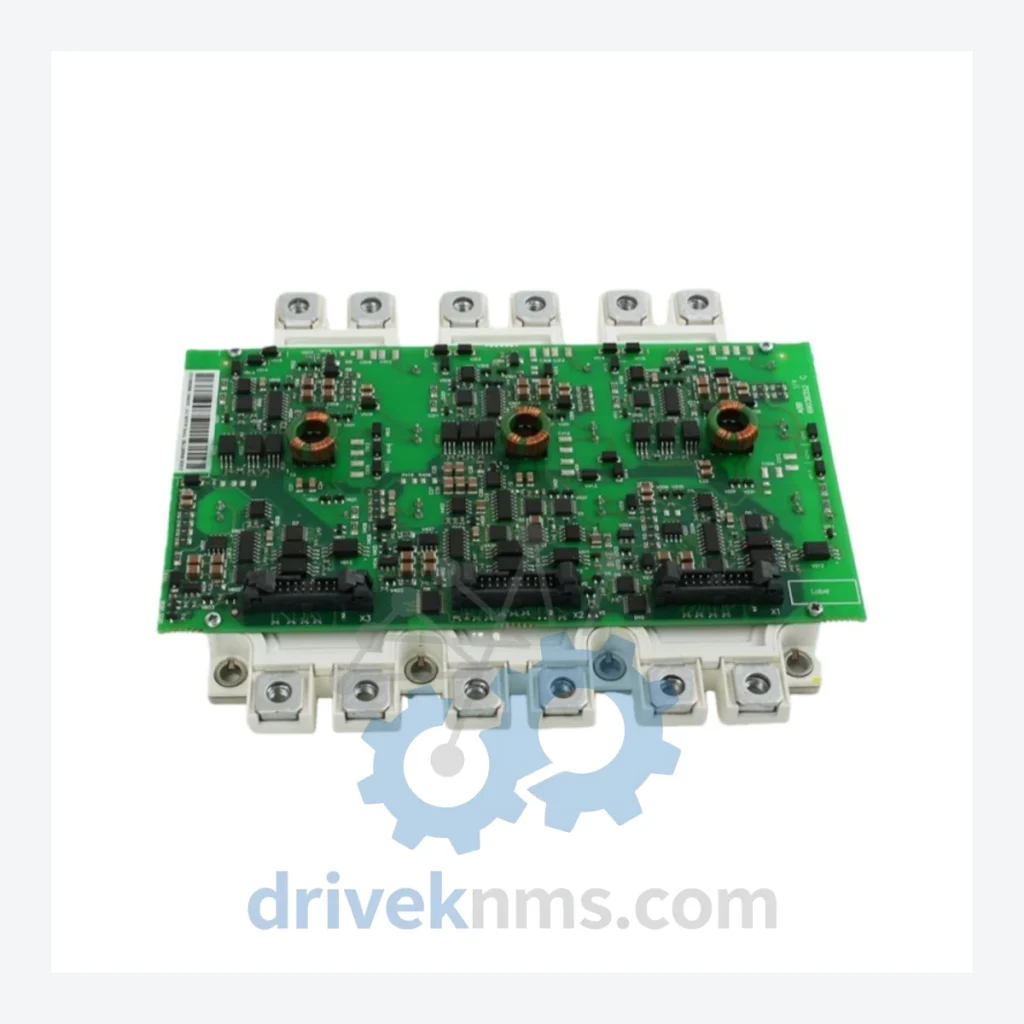

FS450R12KE3/AGDR71C S: 450A 1200V IGBT module with matched AGDR-71C gate driver, factory assembly.
FS300R12KE3/AGDR71C S: 300A 1200V IGBT stack with integrated AGDR-71C gate driver board.
FS225R12KE3/AGDR71C S: 225A 1200V IGBT module, AGDR-71C matched pair for ACS800 mid-frame.
FS150R12KE3/AGDR71C S: 150A 1200V IGBT module with AGDR-71C, used in ACS800-04 frame.
AGDR-71C: Standalone gate driver board, fiber-optic input, dual-channel output, fault relay.
AGDR-61C: Predecessor gate driver board; compatible with GTO and early IGBT stacks in ACS600.
AGDR-81C: Successor gate driver for ACS880 platform; not backward compatible with ACS800 stacks.
3BHB003154R0001: ABB part number for AGDR-71C standalone board, revision A.
3BHB003154R0002: AGDR-71C revision B; updated gate resistor network for lower-threshold IGBTs.
3BHB007327R0001: Gate driver assembly for R8i inverter module in ACS800-17 cabinet drives.
3BHB013088R0001: AGDR-71C compatible snubber/clamp board for high-dV/dt suppression.
FS450R17KE3: 450A 1700V IGBT module; requires AGDR-71C variant with adjusted gate voltage.
FS300R17KE3: 300A 1700V IGBT module for higher DC bus voltage ACS800 configurations.
SINT4610C: Inverter module assembly (R8i) incorporating AGDR-71C gate driver in ACS800-17.
SINT4510C: Inverter module assembly (R7i) with AGDR-71C, used in ACS800-11 and ACS800-31.
SINT4410C: R6i inverter module with AGDR-71C gate driver for ACS800 standard frame drives.
AINT-02C: Auxiliary inverter control board interfacing with AGDR-71C via fiber-optic link.
AINP-01C: Pulse encoder interface board; communicates fault status from AGDR-71C to RDCU.
RDCU-02C: Drive control unit for ACS800; primary controller issuing gate commands to AGDR-71C.

Sourcing Hard-to-Find & Obsolete AGDR-71C Parts

The AGDR-71C series has been in end-of-life status with ABB since approximately 2018, with no new production runs confirmed. OEM lead times for remaining distributor stock are unpredictable, and many regional ABB service centers no longer carry board-level spares. DriveKNMS maintains a dedicated inventory of tested AGDR-71C boards and matched IGBT assemblies sourced through controlled decommissioning projects, authorized surplus channels, and long-term storage programs.

For operators running ACS800 or ACS600 installations with no planned migration, DriveKNMS provides lifecycle extension support including: verified used boards with full functional test records, matched IGBT/gate driver assemblies (e.g., FS450R12KE3/AGDR71C S) sold as pre-tested units, cross-reference support for revision-level compatibility, and multi-year supply agreements for maintenance contractors managing large installed bases.

Quality Control for the AGDR-71C Range

Gate driver boards in the AGDR-71C series require specialized test procedures that differ from standard PCB inspection. DriveKNMS applies the following protocol to all AGDR-71C units prior to dispatch:

Fiber-optic signal integrity test: Each optical transmitter and receiver port is verified for signal latency and threshold voltage using calibrated test equipment matched to ABB's RDCU fiber specifications. Gate output voltage verification: Both positive and negative gate drive voltages (+15V / -8V nominal) are measured under load using a resistive dummy gate network. DESAT fault latch test: Desaturation detection circuitry is triggered and reset to confirm fault relay operation and fiber-optic fault signal transmission. DC bus voltage sensing check: Onboard DC bus measurement circuits are calibrated against reference voltage to confirm accurate reporting to the drive control unit. Thermal cycling: Boards are subjected to temperature cycling (−10°C to +70°C) to identify cold-solder joints and delamination in aged PCB assemblies. Visual and component-level inspection: All electrolytic capacitors, gate resistors, and optocoupler ICs are inspected for age-related degradation, with replacement of out-of-tolerance components before final test.
