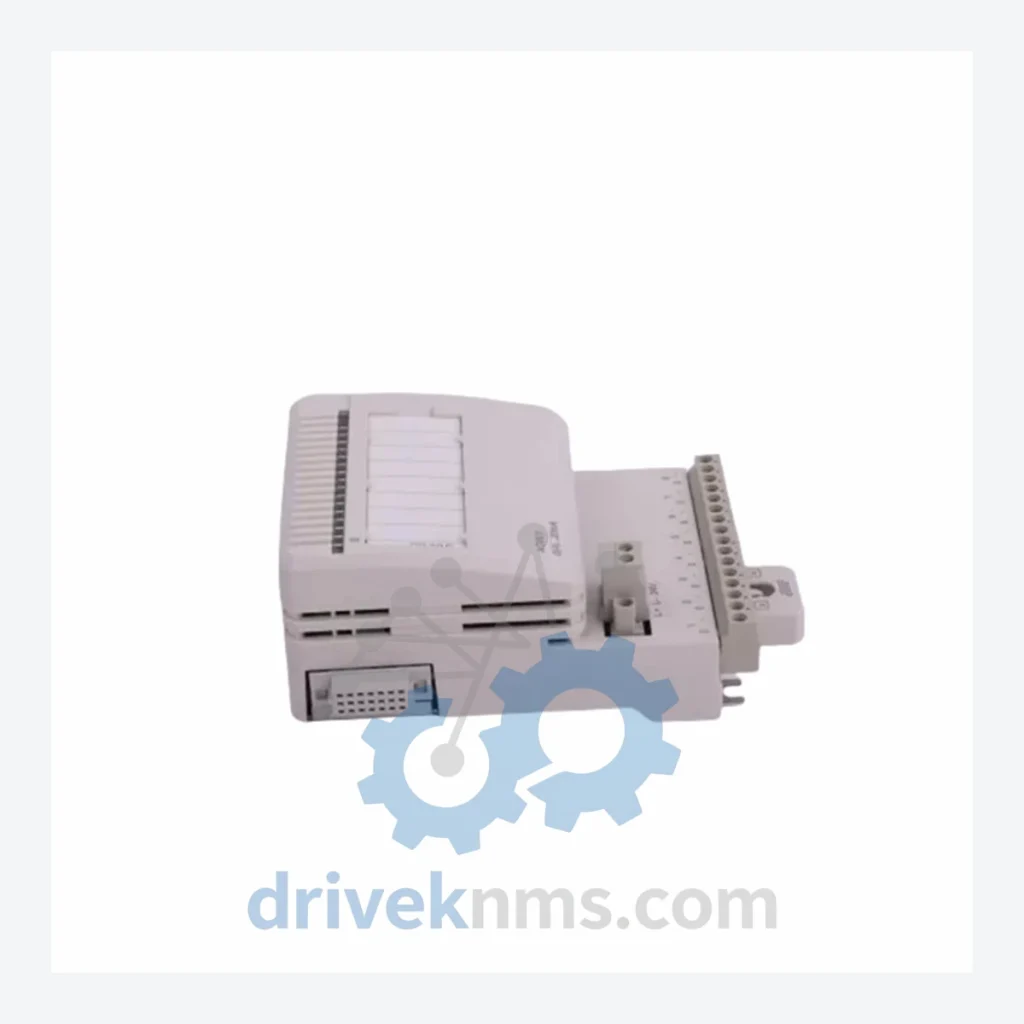

ABB AO801 3BSE020514R1 Analog Output Module – Obsolete Advant Series Spare Part

Technical Dossier

Product Details And Specifications

ABB AO801 3BSE020514R1 Analog Output Module – Obsolete Advant Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as channel count, output range, and resolution are not published here to avoid inaccuracy. Confirmed specifications are provided upon request with reference to the original ABB documentation.

Solving the Discontinued Hardware Crisis

ABB's Advant and AC800M platforms were deployed extensively across the pulp and paper, oil and gas, chemical, and power generation sectors from the late 1990s through the 2010s. The AO801 module served as a core analog output node within these architectures, translating controller commands into 4–20 mA or voltage signals to drive final control elements — valves, positioners, and variable-speed drives.

ABB has formally discontinued this module. Replacement units are not available from the OEM. The installed base, however, remains large. Plants that built their control strategy around this hardware face a structural problem: the control system is still performing its function, the process knowledge embedded in the configuration is intact, but the hardware supply chain has been severed.

The standard industry response — a full DCS migration — is defensible on a 20-year capital planning horizon but is not a rational response to a single module failure. A plant manager who can source a verified replacement AO801 at a fraction of the migration cost is making a sound asset protection decision. That is the function DriveKNMS serves in this supply chain.

For facilities operating ABB MasterPiece 200/1 or Advant Controller 400 systems, the AO801 is not interchangeable with modules from other series without engineering intervention. Sourcing the correct part number — 3BSE020514R1 — eliminates integration risk entirely.

How to Extend Automation Asset Life by 5–10 Years: A Low-Cost Maintenance Strategy

The following approach is used by maintenance teams that have successfully deferred DCS migration by a decade or more without compromising process safety or regulatory compliance.

1. Conduct a module-level criticality audit. Map every I/O module in the system against its process function. Identify which modules, if failed, would cause a process shutdown versus a degraded-mode condition. The AO801 nodes connected to primary control loops are Category 1 critical assets.

2. Establish a minimum strategic spare holding. For Category 1 modules on a discontinued platform, the minimum holding is two units per installed module type. One unit covers an immediate failure; the second covers the time required to source a replacement in an increasingly constrained market. The cost of holding two AO801 units is a rounding error against the cost of an unplanned shutdown.

3. Implement a scheduled module rotation program. Electrolytic capacitors in analog I/O modules have a finite service life, typically 10 to 15 years under normal operating temperatures. Rotating modules out of service on a 7-year cycle for inspection and refurbishment — before failure occurs — eliminates the most common failure mode for this hardware generation.

4. Freeze the firmware version. Do not apply firmware updates to a stable, discontinued platform unless a specific fault requires it. Version mismatches between modules on the same S100 bus have caused communication faults that are difficult to diagnose without OEM support, which is no longer available for this series.

5. Document the configuration completely. Ensure that the full I/O configuration, loop tuning parameters, and module addressing are documented offline and stored in a location independent of the DCS engineering workstation. If the workstation hardware fails, this documentation is the only path to system recovery without a full recommissioning.

A plant that executes these five steps consistently can operate a discontinued ABB Advant or AC800M system reliably for an additional 8 to 12 years. The capital cost is a fraction of a migration project.

Condition & Reliability Assurance

Sourcing discontinued hardware from the secondary market carries legitimate risk. DriveKNMS applies a five-stage inspection protocol to every AO801 unit before it is offered for sale.

Stage 1 – Visual and mechanical inspection. All connectors, PCB surfaces, and housing components are examined for physical damage, corrosion, and pin deformation. Units with compromised connectors are rejected at this stage.

Stage 2 – Electrolytic capacitor assessment. Capacitor aging is the primary failure mechanism for hardware of this vintage. Each unit is inspected for capacitor bulging, electrolyte leakage, and ESR deviation. Units showing capacitor degradation are either refurbished with equivalent-specification components or rejected.

Stage 3 – Firmware version verification. The firmware version is read and recorded. Units are matched to the firmware baseline documented in ABB's published revision history for the AO801. Version anomalies are flagged and disclosed to the customer before sale.

Stage 4 – Pin and contact integrity check. All I/O bus connector pins are inspected for oxidation and mechanical deformation. Contact resistance is measured where test access permits.

Stage 5 – Functional verification. Where test equipment is available, units are powered and basic output functionality is verified. The test result and unit condition grade (New / Refurbished / Tested Used) are documented and provided with the shipment.

Key Features for System Maintenance

The AO801 3BSE020514R1 is a direct hardware replacement for the same part number within ABB Advant and AC800M architectures. No firmware changes, no re-addressing, and no modifications to the control application are required when replacing a failed unit with a unit of the same part number and firmware version. This is a drop-in replacement in the strict engineering sense of the term.

For maintenance teams operating without OEM support contracts, this characteristic is significant. An engineering firm engaged to perform a module swap on a live system will charge for time on site. A replacement that requires no reconfiguration minimizes that time. A replacement that requires application changes introduces project risk and cost that is disproportionate to the scope of the original fault.

Avoiding reconfiguration also eliminates the risk of introducing errors into a control application that has been stable for years. On a discontinued platform with no OEM support, an application error introduced during a maintenance event is a serious liability.

Q: How do I confirm the unit is new or quality-refurbished, not a counterfeit?
A: Each unit is inspected under the five-stage protocol described above. Condition grade, firmware version, and inspection findings are documented and provided with the shipment. We do not sell units that have not passed this process. If you require additional verification — such as third-party testing — we can discuss that arrangement prior to order.

Q: Can you source other ABB Advant or AC800M modules?
A: Yes. DriveKNMS specializes in obsolete and hard-to-find industrial automation components across multiple platforms. Contact us with your full bill of materials and we will advise on availability.
