ABB APOW Series Modules - APOW-11C 3AUA0000061236

Technical Dossier

Product Details And Specifications

ABB APOW Series Technical Notes

The ABB APOW series comprises the internal power supply board assemblies designed exclusively for ABB's ACS880 industrial drive platform. ACS880 drives are deployed at scale across global heavy industry sectors — petrochemical refineries, nuclear auxiliary systems, offshore platforms, pulp and paper mills, and large-scale water treatment infrastructure. The APOW board is a critical sub-assembly: it provides regulated DC power rails to the control electronics, gate driver circuits, and communication interfaces within the drive. Failure of an APOW module results in complete drive shutdown, making rapid access to verified spare units a direct operational continuity requirement.

The Evolution of APOW Series Architecture

The APOW series was introduced alongside the ACS880 single drive platform, which ABB launched to replace the earlier ACS800 family. The ACS800 platform used a different internal power architecture (AINT, APBU boards), and the transition to ACS880 brought a consolidated power supply design under the APOW designation.

Early APOW variants (APOW-01, APOW-01C) were designed for the ACS880-01 and ACS880-04 frame sizes, covering the lower power range. As the ACS880 platform expanded into higher frame sizes and multi-drive cabinet configurations, ABB introduced the APOW-11 and APOW-11C variants to address the increased power demands of larger control board assemblies and expanded I/O configurations.

The suffix "C" in APOW-11C denotes a revised hardware revision with enhanced EMC filtering and improved thermal management compared to the base APOW-11. Both variants share the same mounting footprint and connector pinout, allowing field substitution in most configurations, subject to firmware compatibility verification.

As the ACS880 platform matures, earlier APOW revisions are progressively reaching end-of-production status. ABB's standard lifecycle policy transitions components through Active, Classic, and Obsolete phases. APOW units in the Classic and Obsolete phases remain fully functional in installed drives but are no longer manufactured, making aftermarket sourcing the primary procurement channel for maintenance operations.

APOW Series Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented APOW series range across ACS880 drive frame sizes and configurations.

Power Supply Boards — Core APOW Range

• APOW-01: Internal PSU board for ACS880-01 frames R1–R5; provides ±15V and +24V rails to AINT control board.
• APOW-01C: Revised APOW-01 with enhanced EMC filtering; direct hardware replacement for APOW-01 in R1–R5 frames.
• APOW-11: Internal PSU board for ACS880-01 frames R6–R9 and ACS880-04 multi-drive; higher current output on auxiliary rails.

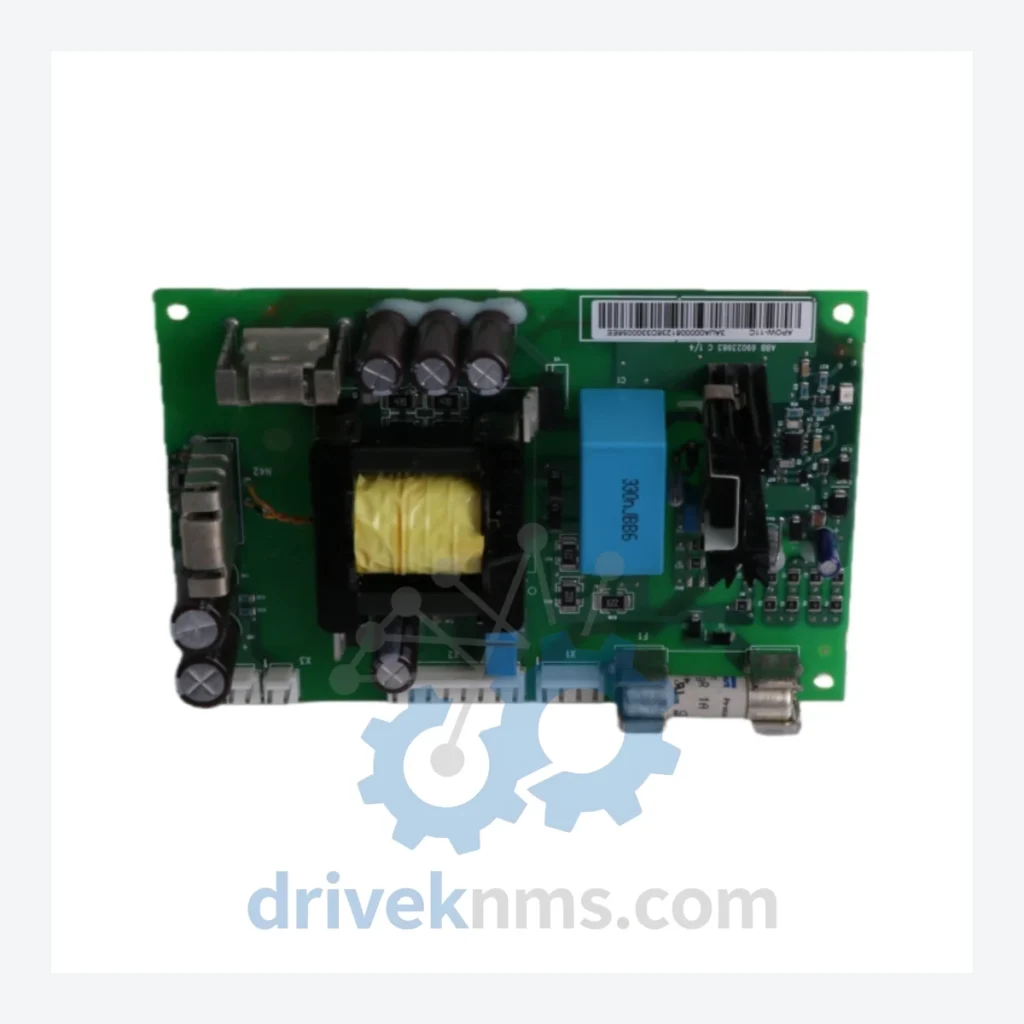

• APOW-11C (3AUA0000061236): Revised APOW-11 with improved thermal dissipation and EMC compliance; primary spare for R6–R9 frame ACS880 drives.
• APOW-21: Power supply assembly for ACS880-07 cabinet drive configurations; supports extended I/O backplane power requirements.
• APOW-21C: Revised APOW-21 with updated capacitor specification for extended service life in high-ambient-temperature installations.
• APOW-31: PSU board variant for ACS880-17 and ACS880-37 regenerative drive units; includes additional power rail for braking chopper control circuits.
• APOW-31C: Revised APOW-31; incorporates conformal coating for marine and high-humidity industrial environments.

Associated Control & Interface Boards (ACS880 Platform)

• AINT-02C: Main control board for ACS880-01; interfaces directly with APOW-01C for system power distribution.
• AINT-11C: Main control board for ACS880-01 R6–R9; paired with APOW-11C in standard drive configurations.
• AIMA-01: Analog I/O extension module; powered via APOW auxiliary rail; supports 4–20mA and ±10V signal types.
• ADIO-01: Digital I/O extension module for ACS880; 8DI/8DO configuration; draws logic power from APOW 24V rail.
• AFIO-01: Fiber optic interface board for ACS880 multi-drive systems; requires stable APOW auxiliary supply for optical transceiver operation.
• RDCO-04: DDCS communication adapter; connects ACS880 to ABB Advant/AC800M DCS systems; powered from APOW 24V rail.
• RPBA-01: PROFIBUS-DP adapter module for ACS880; fieldbus communication board dependent on APOW auxiliary power integrity.
• RCAN-01: CANopen adapter for ACS880; used in mobile machinery and crane applications; powered via APOW 24V output.
• RECA-01: EtherCAT adapter module; high-speed fieldbus interface for ACS880 in motion-critical applications.
• RENA-01: Ethernet/IP and Modbus TCP adapter; industrial Ethernet communication board for ACS880 platform.

Sourcing Hard-to-Find & Obsolete APOW Series Parts

DriveKNMS operates as a specialist supplier for ABB ACS880 internal spare components, with particular focus on APOW series boards that have transitioned out of ABB's active production schedule. The operational reality for plant maintenance teams is that ACS880 drives installed in the 2012–2018 period are now entering their first major overhaul cycle, and APOW boards — subject to electrolytic capacitor aging and thermal cycling fatigue — are among the first internal components to require replacement.

Quality Control for the APOW Series Range

APOW boards present specific test challenges due to their role as the primary power source for all other ACS880 control electronics. DriveKNMS applies the following test protocol to all APOW units prior to dispatch:

• Input voltage range verification: Each board is energized across its specified AC input range and output rail voltages are measured under load conditions replicating the target drive frame's current draw profile.
• Ripple and noise measurement: DC output rails are tested for ripple voltage within ABB's specified limits. Excessive ripple is a primary cause of AINT control board instability and false fault trips.
• Thermal imaging under load: Boards are operated at full rated load for a minimum 30-minute burn-in period. Infrared thermal imaging identifies failing capacitors, dry solder joints, and overloaded components before dispatch.
• Connector and backplane interface inspection: All board-edge connectors and ribbon cable interfaces are inspected for pin damage, oxidation, and mechanical deformation.
• Revision and firmware compatibility documentation: Each dispatched unit is accompanied by documentation confirming hardware revision suffix and known firmware compatibility range.
