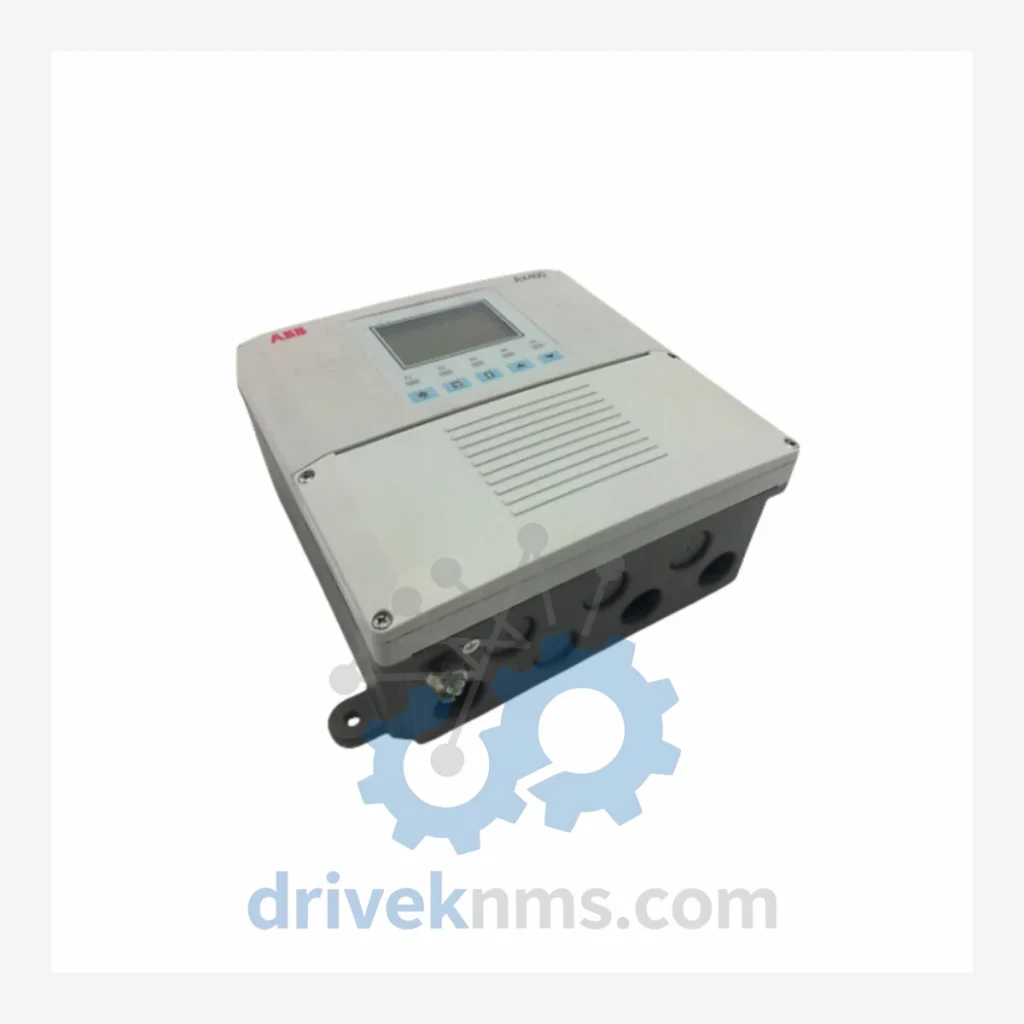

ABB AX460 Conductivity Analyzers – AX460/10001

Name: ABB AX460 Conductivity Analyzers – AX460/10001
Brand: ABB

Model: AX460/10001

Brand ABB

Series AX460/10001

Model AX460/10001

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

ABB AX460 Series Technical Notes

The ABB AX460 is a 4-wire transmitter-based conductivity and concentration analyzer platform deployed across continuous process industries including petrochemical refining, nuclear power generation, chemical manufacturing, pulp and paper, and pharmaceutical water treatment. The AX460 series occupies a critical measurement tier in distributed control system (DCS) architectures where precise liquid conductivity data feeds directly into process safety interlocks and quality control loops. Its modular sensor-transmitter topology allows field replacement of measurement cells without interrupting the transmitter loop, a design requirement in high-availability plant environments. ABB positions the AX460 within its Analytical Measurement portfolio alongside the AX410 (pH/ORP) and AX430 (dissolved oxygen) transmitters, sharing a common housing standard and HART/PROFIBUS communication layer across the range.

The Evolution of AX460 Architecture

The AX460 platform traces its lineage to ABB's earlier Kent-Taylor and Hartmann & Braun analytical transmitter lines, which were absorbed into ABB's measurement division through successive acquisitions in the 1990s. Early-generation conductivity transmitters in this lineage used analog 4–20 mA output exclusively, with manual temperature compensation via fixed Pt100 inputs. The AX460 generation introduced dual-channel measurement capability, automatic temperature compensation (ATC) across a configurable range, and digital communication via HART protocol as standard, with PROFIBUS PA as a factory-fit option. Later firmware revisions added concentration calculation tables for common industrial electrolytes (NaOH, H₂SO₄, HCl, NaCl), enabling direct concentration readout without external computation. The transmitter's IP65/IP67-rated field housing was designed for direct panel or pipe mounting in Zone 2 hazardous areas (ATEX II 3G), a specification that remains relevant for ongoing installations in legacy plant sections where the AX460 cannot be easily substituted without loop re-engineering. Compatibility with contacting conductivity cells (2-electrode and 4-electrode) and toroidal (inductive) sensors is managed through sensor type selection in the transmitter configuration menu, making the AX460 a multi-sensor platform rather than a single-sensor instrument.

AX460 Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented AX460 series product range. Each entry identifies the specific configuration variant and its primary functional characteristic.

AX460/10001: 4-wire conductivity/concentration transmitter, HART, contacting cell input, standard housing
AX460/10002: 4-wire conductivity transmitter, HART, toroidal (inductive) sensor input, standard housing
AX460/10011: 4-wire conductivity transmitter, PROFIBUS PA, contacting cell input, standard housing
AX460/10012: 4-wire conductivity transmitter, PROFIBUS PA, toroidal sensor input, standard housing
AX460/10021: 4-wire conductivity transmitter, FOUNDATION Fieldbus H1, contacting cell input
AX460/10022: 4-wire conductivity transmitter, FOUNDATION Fieldbus H1, toroidal sensor input
AX460/20001: Dual-channel conductivity transmitter, HART, two contacting cell inputs, differential measurement
AX460/20011: Dual-channel conductivity transmitter, PROFIBUS PA, two contacting cell inputs
AX460/30001: Conductivity/concentration transmitter with integrated display, HART, panel-mount variant
AX460/30011: Conductivity/concentration transmitter with integrated display, PROFIBUS PA, panel-mount variant
AX460/40001: ATEX Zone 1 certified conductivity transmitter, HART, Ex ia, contacting cell
AX460/40011: ATEX Zone 1 certified conductivity transmitter, PROFIBUS PA, Ex ia, contacting cell
AX460/50001: High-temperature process variant, conductivity transmitter, HART, rated to 200°C process
AX460/60001: Conductivity transmitter with concentration calculation, NaOH/H₂SO₄ tables, HART
AX460/70001: OEM/system-integrated variant, conductivity transmitter, stripped housing, DCS rack-mount
AX460/80001: Replacement transmitter board assembly, AX460 platform, field-serviceable PCB module
AX460/90001: AX460 series sensor cable assembly, 10 m, shielded, contacting cell compatible
