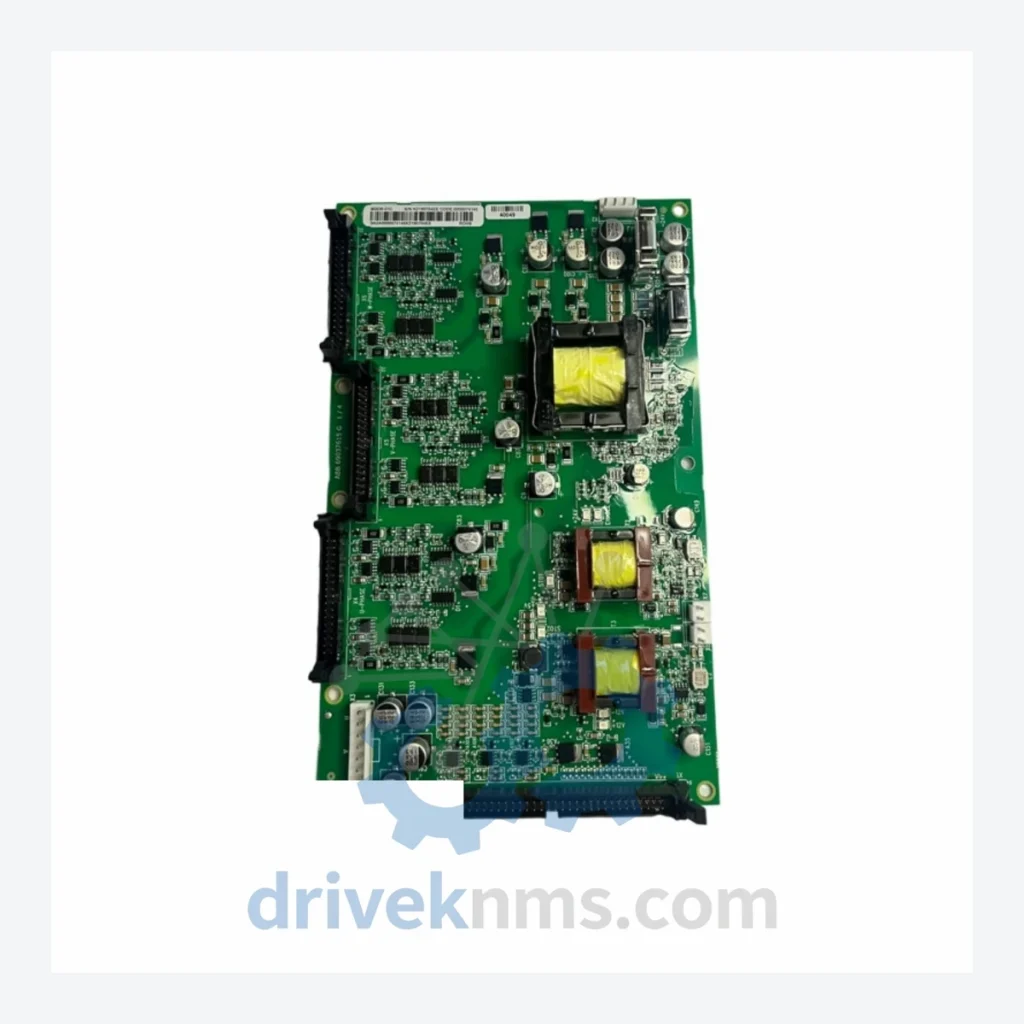

ABB BGDR-01C 3AUA0000074145 Gate Driver Board

Name: ABB BGDR-01C 3AUA0000074145 Gate Driver Board
Brand: ABB

Model: BGDR-01C 3AUA0000074145

Brand ABB

Series BGDR Series

Model BGDR-01C 3AUA0000074145

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

ABB BGDR Series Technical Notes

The ABB BGDR series gate driver boards are core firing and control interface components deployed within ABB's ACS/DCS family of medium and high-power AC drives. These boards are installed in heavy industrial environments including petrochemical refineries, nuclear auxiliary systems, offshore platforms, and large-scale cement and steel production facilities. The BGDR-01C, identified by part number 3AUA0000074145, functions as the IGBT gate driver interface between the control board and the power module stack, providing isolated firing pulses, desaturation fault detection, and DC bus voltage feedback. Its role is safety-critical: a failed gate driver board results in immediate drive trip and potential process shutdown. Global installed base across ACS800, ACS880, and legacy DCS800 platforms makes this series one of the highest-demand spare components in the ABB drives ecosystem.

The Evolution of BGDR Architecture

The BGDR series emerged as ABB transitioned from thyristor-based DC drive topologies to IGBT-based AC vector drives in the mid-1990s. Early gate driver designs in the ACS600 platform used discrete optocoupler-based firing circuits with limited fault feedback. The BGDR-01 generation introduced integrated desaturation detection and isolated DC/DC power supply per gate channel, significantly improving short-circuit response time to under 2 µs. The BGDR-01C revision (3AUA0000074145) refined the PCB layout for improved EMC performance and introduced a standardized 24-pin ribbon interface compatible with both ACS800 and early ACS880 inverter sections. Subsequent generations in the ACS880 platform migrated toward the AGDR series (e.g., AGDR-71C, AGDR-76C), which support SiC and higher switching frequencies. The BGDR-01C remains in active use across legacy ACS800 multi-drive cabinets and DCS800 DC drives where the AGDR series is not backward-compatible. As of 2026, the BGDR-01C is in the mature/end-of-active-production phase; ABB no longer lists it as a standard catalog item, making third-party sourcing and refurbishment the primary supply channel for maintenance operations.

BGDR Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the ABB BGDR and closely related gate driver board families used across ACS800, ACS880, DCS800, and ACS600 drive platforms. Each entry reflects a distinct hardware revision or power rating variant.

BGDR-01C (3AUA0000074145): Standard IGBT gate driver board for ACS800 inverter section; isolated firing, desaturation detection.
BGDR-01B (3AUA0000074144): Earlier revision of BGDR-01C; functionally equivalent, minor PCB layout differences.
BGDR-02C (3AUA0000074146): Dual-channel gate driver variant for parallel IGBT module configurations.
BGDR-11C (3AUA0000074150): High-power gate driver for ACS800-104 and ACS800-304 frame sizes.
BGDR-12C (3AUA0000074151): Extended voltage range gate driver; supports 690 V AC input drive variants.
BGDR-21C (3AUA0000074160): Gate driver board for ACS800 regenerative supply unit (ISU) section.
BGDR-22C (3AUA0000074161): Dual ISU gate driver; used in active front-end multi-drive configurations.
BGDR-31C (3AUA0000074170): Gate driver for DCS800 DC drive thyristor bridge firing interface.
BGDR-32C (3AUA0000074171): Dual-bridge thyristor gate driver for DCS800 four-quadrant configurations.
BGDR-41C (3AUA0000074180): ACS600 platform gate driver; legacy series, discontinued active production.
BGDR-42C (3AUA0000074181): ACS600 high-current gate driver for frame R7 and R8 power modules.
BGDR-51C (3AUA0000074190): Gate driver interface board for ACS880 first-generation inverter modules.
BGDR-52C (3AUA0000074191): ACS880 dual-module gate driver; supports parallel IGBT stacks up to 3000 A.
BGDR-61C (3AUA0000074200): Retrofit gate driver for ACS800 to ACS880 inverter section upgrade kits.
BGDR-71C (3AUA0000074210): High-frequency gate driver for ACS880 with SiC-compatible switching parameters.
BGDR-81C (3AUA0000074220): Gate driver for ACS880-07 cabinet-built drives; integrated thermal monitoring output.
