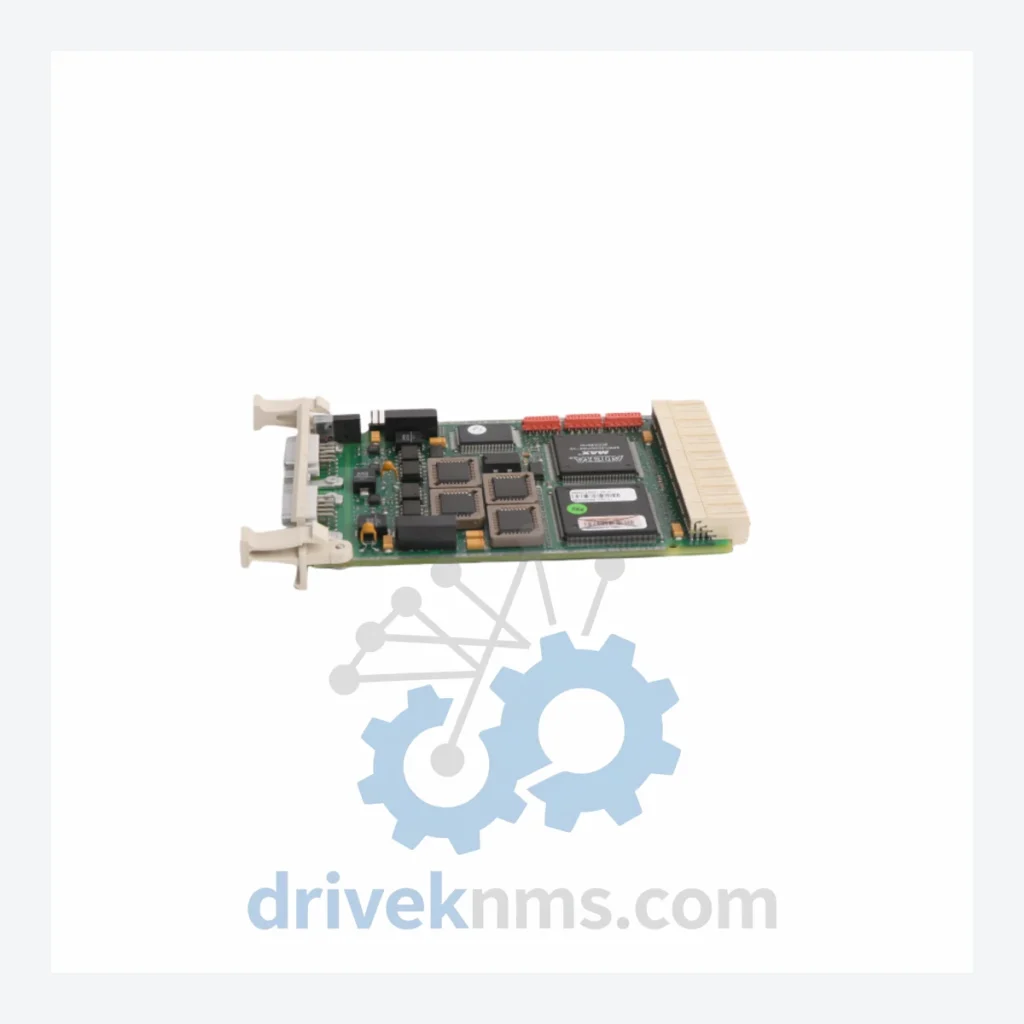

ABB AC800M Modules: CI541V1 3BSE014666R1 Interface Submodule —

Technical Dossier

Product Details And Specifications

ABB AC800M Series: Comprehensive Module Range and Technical Overview

The ABB AC800M is a modular Distributed Control System (DCS) and Process Automation Controller platform deployed across global heavy industry sectors including petrochemical refineries, nuclear power stations, pulp and paper mills, offshore oil and gas platforms, and large-scale chemical processing facilities. Introduced in the late 1990s as the successor to the AC800C and Masterpiece 200/1 lineage, the AC800M has accumulated an installed base measured in tens of thousands of controller nodes worldwide. Its architecture is built around a high-speed internal bus (CEX-Bus) that interconnects CPU modules, I/O interface modules, communication adapters, and power supply units within a standardized S800 I/O rail system. The CI541V1 3BSE014666R1 is a Profibus DP interface submodule within this ecosystem, providing deterministic fieldbus connectivity between the AC800M controller and distributed S800 I/O stations or third-party Profibus DP slave devices.

📩 Looking for a specific AC800M model? Send your list to: sale@driveknms.com

The Evolution of AC800M Architecture

The AC800M platform has progressed through several hardware generations since its commercial introduction circa 1999. Early deployments centered on the PM851 and PM856 processor modules operating under the 800xA System 5.0 environment, with CEX-Bus backplane communication rates of 10 Mbit/s. Subsequent generations introduced the PM860, PM861, and PM864 families with expanded memory, dual-redundancy support, and compatibility with the 800xA System 6.x software stack. The CI5xx communication interface family — including the CI501, CI520, CI522, CI530, CI532, CI534, CI541, CI545, CI546, CI547, CI560, CI561, CI801, CI820, CI840, CI854, CI856, CI857, CI858, CI860, CI865, and CI867 — evolved in parallel to support an expanding range of fieldbus and industrial Ethernet protocols. The CI541V1 (3BSE014666R1) specifically implements Profibus DP-V0/V1 master functionality, a protocol that remains dominant in brownfield process plant environments where replacement of existing Profibus infrastructure is not economically viable. Compatibility constraints exist between CI5xx module hardware revisions and specific 800xA software versions; operators must cross-reference the ABB Product Compatibility Matrix before substituting modules across controller generations.

AC800M Full Catalog & Functionalities — SKU List

Controller / CPU Modules

• PM851 3BSE018168R1: AC800M base CPU, 32 MB RAM, single CEX-Bus port, 800xA 5.0 compatible
• PM856 3BSE018100R1: Mid-range CPU, 64 MB RAM, dual redundancy support, extended temperature range
• PM860 3BSE042240R1: High-performance CPU, 128 MB RAM, dual Ethernet, 800xA 6.0 compatible
• PM861A 3BSE066490R1: Enhanced PM861 variant, increased I/O capacity, redundant power input
• PM864A 3BSE018161R1: Top-tier AC800M CPU, 256 MB RAM, dual CEX-Bus, full hot-standby redundancy

Profibus DP Interface Modules

• CI541V1 3BSE014666R1: Profibus DP-V0/V1 master interface submodule, 12 Mbit/s, up to 125 slave nodes
• CI545 3BSE021448R1: Profibus DP master, extended diagnostics, redundant media support
• CI546 3BSE021449R1: Profibus DP slave interface for inter-controller communication

FOUNDATION Fieldbus / HART Interface Modules

• CI501 3BSE056796R1: FOUNDATION Fieldbus H1 linking device, 2-segment, 800xA FF integration
• CI520V1 3BSE012869R1: AF100 fieldbus interface, legacy Advant OCS compatibility layer
• CI522A 3BSE018283R1: AF100 redundant fieldbus interface, dual-channel hot-standby
• CI532V1 3BSE003827R1: MasterBus 300 interface, legacy Masterpiece 200/1 migration support
• CI534V02 3BSE010699R1: INSUM motor management network interface, marine and heavy motor applications

Industrial Ethernet / Modbus Interface Modules

• CI801 3BSE022366R1: PROFINET IO controller, 100 Mbit/s, IRT support, 800xA 6.0+
• CI840A 3BSE041882R1: PROFIBUS DP redundant media interface, ring topology support
• CI854AK01 3BSE030220R1: HART multiplexer interface, 16-channel, asset management integration
• CI856K01 3BSE026055R1: IEC 61850 GOOSE/MMS Ethernet interface, substation automation
• CI860K01 3BSE032444R1: FF HSE linking device, high-speed Ethernet fieldbus backbone
• CI867K01 3BSE091921R1: Modbus TCP/RTU master/slave interface, legacy SCADA integration

Power Supply Modules

• SD821 3BSC610037R1: 24 VDC, 6 A power supply unit for S800 I/O rail
• SD822 3BSC610038R1: 24 VDC, 10 A redundant power supply, N+1 configuration
• SD823 3BSC610039R1: 24 VDC, 20 A high-capacity power supply, large I/O cluster support

Sourcing Hard-to-Find & Obsolete AC800M Parts

The AC800M platform entered its mature lifecycle phase in the mid-2010s. ABB has progressively migrated new project engineering toward the AC800xA and Symphony Plus platforms. As a consequence, a significant portion of the CI5xx interface module family — including the CI541V1 3BSE014666R1, CI520V1, CI532V1, and CI534V02 — has been classified as Limited Availability or Discontinued by ABB’s standard supply chain. End users operating brownfield plants with 10–25 year remaining operational horizons face a structural spare parts challenge: OEM lead times for in-production modules can exceed 26 weeks, while discontinued modules are no longer manufactured.

DriveKNMS maintains a dedicated inventory program for AC800M lifecycle extension. Stock is sourced through certified industrial surplus channels, decommissioned plant buybacks, and authorized distributor excess inventory. All CI541V1 3BSE014666R1 units in stock are subject to pre-shipment functional verification. DriveKNMS provides cross-reference support to identify compatible hardware revision substitutes where direct replacements are unavailable, and can advise on firmware compatibility requirements for specific 800xA software versions.

Quality Control for the AC800M Range

AC800M modules present specific test challenges due to their CEX-Bus backplane communication protocol and fieldbus master/slave arbitration logic. DriveKNMS applies the following verification procedures to all AC800M units prior to dispatch:

• Visual inspection: PCB condition, connector pin integrity, conformal coating assessment, capacitor ESR check on power rail components
• Powered bench test: Module initialization sequence verification against known-good AC800M test rack running 800xA 5.1 or 6.0 firmware baseline
• Fieldbus functional test (CI541V1 specific): Profibus DP master scan cycle initiated against a reference slave device; GSD file parameter download verified; diagnostic telegram response confirmed at 1.5 Mbit/s and 12 Mbit/s baud rates
• Communication integrity: CEX-Bus slot assignment, module status LED sequence, and hardware revision register readback logged and archived per unit serial number
• Burn-in: 48-hour powered soak at ambient temperature with periodic status polling to screen for latent component failures
