ABB CI801 3BSE022366R1 Communication Interface Module – Obsolete AC800M Spare Part

Technical Dossier

Product Details And Specifications

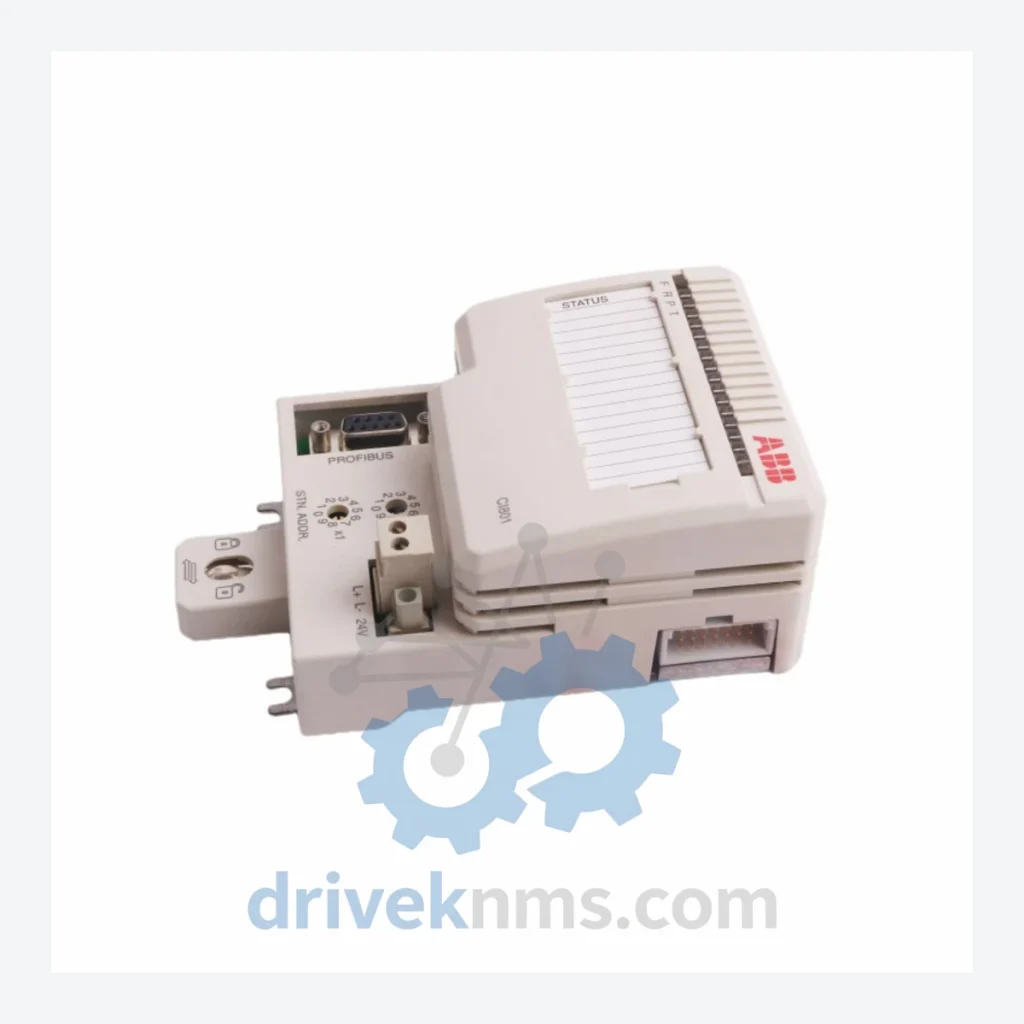

ABB CI801 3BSE022366R1 Communication Interface Module – Obsolete AC800M Spare Part

DriveKNMS reviews sourcing options for this model through RFQ handling before quotation.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters not independently verified by DriveKNMS are intentionally omitted. Specifications above are sourced from ABB published documentation. Buyers are advised to cross-reference against their system's original engineering drawings.

Solving the Discontinued Hardware Crisis

The ABB AC800M platform entered widespread deployment in the late 1990s and through the 2000s. Many of these installations remain operational today — not because operators are unaware of the hardware's age, but because the control logic embedded in these systems represents decades of process tuning, safety interlock development, and regulatory validation. Replacing the platform means re-validating everything. For facilities operating under IEC 61511 functional safety requirements or FDA 21 CFR Part 11 compliance, that re-validation is not a minor administrative exercise.

The CI801 module serves as the PROFIBUS DP communication bridge between the AC800M controller and field instrumentation — transmitters, valve positioners, variable frequency drives, and remote I/O stations. Without a functioning CI801, the controller loses visibility into and control over the field devices on that PROFIBUS segment. There is no software workaround. There is no firmware patch. The physical module must be replaced with an identical or fully compatible unit.

Facilities that have not pre-positioned at least one CI801 spare per PROFIBUS segment are operating with an unquantified but material risk to production continuity. The cost of a single unplanned outage caused by a failed CI801 — measured in lost production, emergency procurement premiums, and expedited engineering labor — will in most cases exceed the cost of maintaining a strategic spare inventory by an order of magnitude.

How to Extend Your AC800M System Life by 5–10 Years: A Low-Cost Maintenance Strategy

For plant managers facing pressure to retire aging AC800M infrastructure, the following approach has been applied successfully across multiple process industries to defer capital expenditure while maintaining system reliability:

1. Conduct a Critical Spare Audit. Map every CI801, PM8xx controller module, and associated I/O module in your AC800M installation. Identify which modules have no on-site spare. These are your single points of failure. Prioritize procurement of at least one spare per unique module type per production-critical segment.

2. Establish a Tiered Spare Strategy. Not all modules carry equal risk. PROFIBUS communication modules like the CI801 are high-criticality because a failure isolates an entire field device segment. Maintain a minimum of two CI801 spares per facility — one for immediate swap, one as a longer-term reserve.

4. Maintain Firmware Version Records. AC800M systems are sensitive to firmware version mismatches between controller and communication modules. Before deploying any replacement CI801, verify that the firmware version is compatible with your installed PM8xx controller firmware. Document this in your maintenance management system.

5. Negotiate Long-Term Supply Agreements. Distributors with verified secondary market access — such as DriveKNMS — can structure forward supply agreements that lock in pricing and reserve allocation for multi-year periods. This eliminates emergency procurement risk and provides budget predictability for maintenance planning.

The capital cost of maintaining a strategic CI801 spare inventory is a fraction of one day's lost production at most process facilities. The decision to defer system retirement through disciplined spare parts management is not a compromise — it is a defensible asset protection strategy.

Condition & Reliability Assurance

DriveKNMS applies a structured 5-step quality assurance process to all discontinued modules prior to shipment:

Step 1 – Visual and Physical Inspection: Full examination of PCB surface, connector pins, and housing for mechanical damage, corrosion, or evidence of prior field failure. Modules with pin corrosion, burn marks, or compromised housing integrity are rejected at this stage.

Step 2 – Electrolytic Capacitor Assessment: Capacitor aging is the leading cause of latent failure in modules of this generation. Each unit is inspected for capacitor bulging, electrolyte leakage, and ESR deviation. Modules with degraded capacitors are either re-capped by qualified technicians or removed from serviceable inventory.

Step 3 – Firmware Version Verification: The installed firmware version is documented and cross-referenced against known AC800M compatibility matrices. This information is provided to the buyer prior to shipment to allow pre-deployment compatibility confirmation.

Step 4 – Functional Bench Test: Where test infrastructure permits, modules are powered and subjected to communication protocol verification. Results are logged and accompany the shipment.

Step 5 – Packaging and ESD Protection: All modules are packed in anti-static bags with appropriate cushioning. Shipment documentation includes the QA checklist, firmware version record, and condition classification (New / Refurbished-Grade A / Tested-Used).

Key Features for System Maintenance

The CI801 3BSE022366R1 is a direct hardware replacement for the original installed module. No re-engineering of the PROFIBUS network configuration is required. No re-programming of the AC800M controller is necessary. The replacement module slots into the existing rack position and resumes communication with the existing field device network upon controller restart — provided firmware compatibility has been confirmed in advance.

This drop-in replacement capability is the core economic argument for spare parts-based maintenance over system migration. A qualified instrument technician can execute the swap in under two hours. A system migration project, by contrast, requires months of engineering, commissioning, and validation work. The CI801 spare is not simply a hardware component — it is a mechanism for deferring a multi-million dollar capital project until the timing is operationally and financially appropriate.

Frequently Asked Questions

Q: How do I confirm the module is new or genuine refurbished — not a counterfeit?
A: All CI801 units sourced by DriveKNMS are inspected for ABB OEM markings, PCB revision codes, and manufacturing date codes consistent with known authentic production runs. We do not source from unverified brokers. Buyers may request pre-shipment photographs of the specific unit, including PCB detail shots, prior to payment.

Q: Should I purchase more than one unit?
A: For any facility with more than one PROFIBUS DP segment on an AC800M system, maintaining at least two CI801 spares is the minimum prudent position. Global secondary market availability of this module is finite and declining. Procurement cost today is substantially lower than emergency procurement cost during an unplanned outage.

Q: Can this module be used in systems other than the AC800M?
A: The CI801 is designed specifically for the ABB AC800M controller platform. Compatibility with other ABB controller families or third-party DCS platforms has not been verified by DriveKNMS and cannot be confirmed without reference to the specific system's engineering documentation.
