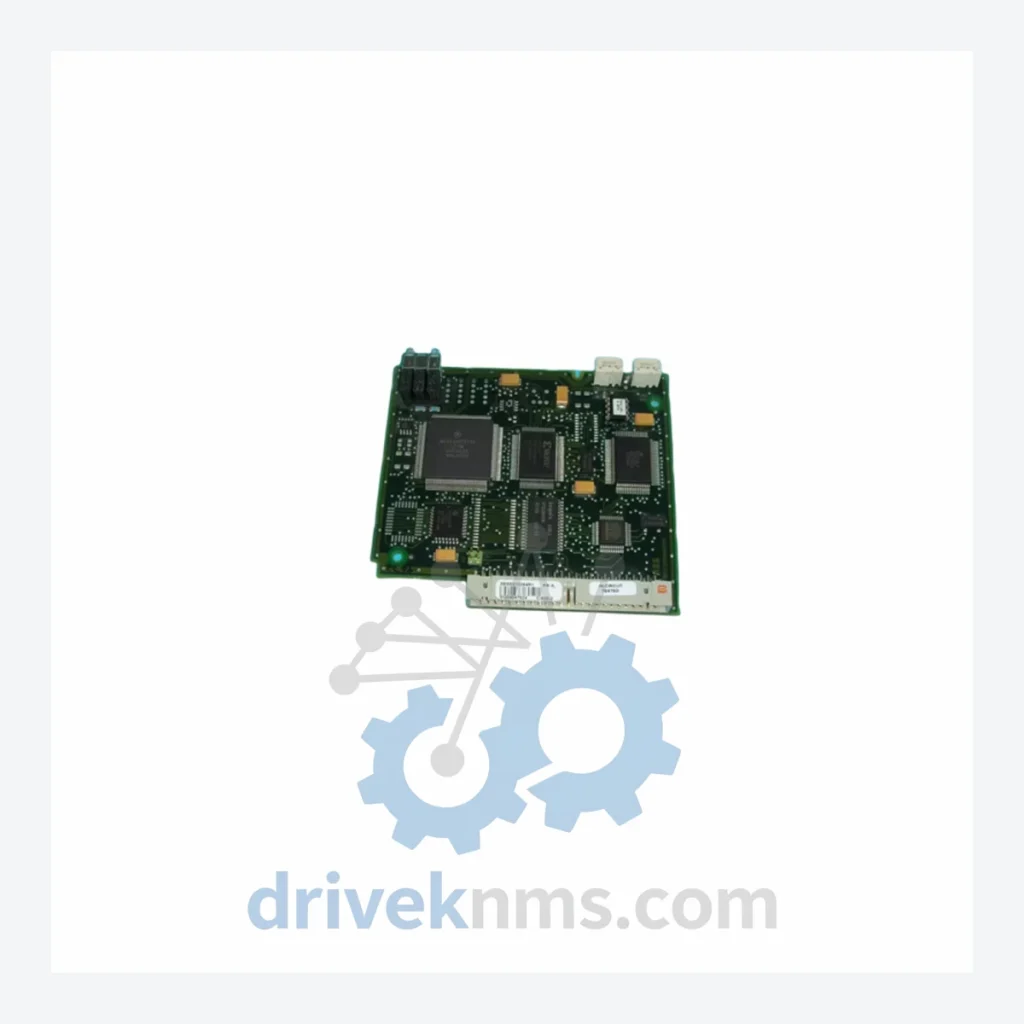

ABB CI830 Modules: CI830-2 3BSE013254R1

Technical Dossier

Product Details And Specifications

ABB CI830 Series Technical Notes

The ABB CI830 series is a PROFIBUS DP communication interface module family designed for integration within ABB's AC800M controller platform and the System 800xA Distributed Control System (DCS). Deployed extensively across global heavy industry — including petrochemical refineries, nuclear power auxiliary systems, offshore platforms, and large-scale chemical processing plants — the CI830 series provides deterministic fieldbus communication between the AC800M CPU and PROFIBUS DP field devices such as variable frequency drives, intelligent valve positioners, and remote I/O stations.

The CI830 occupies a critical position in the 800xA architecture: it is the primary gateway between the controller backplane and the PROFIBUS DP network, supporting up to 125 slave devices per segment at data rates up to 12 Mbit/s. Its role in safety-critical and continuous-process environments means that obsolescence management and spare parts availability are operational priorities for plant engineers and maintenance teams worldwide.

The Evolution of CI830 Architecture

The CI830 series was introduced as part of ABB's transition from the earlier Advant OCS / MOD 300 platforms toward the unified System 800xA architecture in the early 2000s. The original CI830 (first-generation, no suffix) established the PROFIBUS DP master interface standard for the AC800M S800 I/O system. It communicated via the ModuleBus internal backplane and supported standard DP-V0 and DP-V1 services.

The CI830-2 (part number 3BSE013254R1) represents the second-generation revision, introducing improved firmware stability, enhanced diagnostic reporting via DP-V2 services, and extended temperature tolerance for harsh industrial environments. The CI830-2 is backward-compatible with CI830 configurations, allowing direct hardware substitution in existing 800xA projects without controller re-engineering.

CI830 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked modules within the ABB CI830 / AC800M communication interface ecosystem. Each entry reflects a distinct hardware revision or related interface type used in System 800xA installations.

CI830 3BSE013252R1: First-generation PROFIBUS DP master interface for AC800M; DP-V0/V1 support, ModuleBus backplane.

CI830-2 3BSE013254R1: Second-generation PROFIBUS DP master; DP-V2 diagnostics, improved EMC tolerance, direct CI830 replacement.

CI854A 3BSE030220R1: Redundant PROFIBUS DP master interface; dual-channel hot-standby for high-availability process loops.

CI854B 3BSE025255R1: Enhanced redundant PROFIBUS DP master; extended slave count, improved switchover time vs CI854A.

CI856 3BSE026055R1: PROFIBUS PA segment coupler interface; links PA field instruments to DP master backbone.

CI857 3BSE018144R1: DeviceNet master communication interface for AC800M; supports up to 64 DeviceNet nodes.

CI858 3BSE018135R1: FOUNDATION Fieldbus HSE linking device interface for AC800M DCS integration.

CI860 3BSE032444R1: IEC 61850 communication interface; substation automation and protection relay integration.

CI867 3BSE043660R1: Modbus TCP/RTU communication interface for AC800M; legacy device integration.

CI868 3BSE048845R1: IEC 60870-5-101/104 SCADA communication interface; power utility protocol support.

CI871 3BSE056767R1: PROFINET IO controller interface for AC800M; next-generation Ethernet-based fieldbus.

CI873 3BSE056765R1: PROFINET IO device interface; used where AC800M acts as a PROFINET IO device.

CI874 3BSE056769R1: Redundant PROFINET IO controller; dual-port Ethernet, MRP ring topology support.

CI875 3BSE056771R1: OPC UA server interface for AC800M; direct data publishing to MES/SCADA over OPC UA.

CI876 3BSE062534R1: EtherNet/IP adapter interface for AC800M; Rockwell/Allen-Bradley ecosystem integration.

CI880 3BSE069052R1: High-speed serial communication interface; legacy serial device and historian connectivity.

Quality Control for the CI830 Range

CI830 modules present specific test challenges due to their dual-interface architecture: the ModuleBus backplane connector (proprietary ABB protocol) and the PROFIBUS DP sub-D9 field connector must both be validated independently. DriveKNMS applies the following test protocol to all CI830 units prior to dispatch:

Visual and mechanical inspection: PCB surface examination for corrosion, capacitor bulge, solder joint fatigue, and connector pin integrity on both the backplane and PROFIBUS connectors. Backplane communication test: Module is seated in an AC800M test rack and polled via ModuleBus to confirm firmware version readback, module identity response, and absence of hardware fault codes. PROFIBUS DP master function test: A live PROFIBUS DP segment with reference slave devices (including a drive and a remote I/O station) is connected. The CI830-2 is configured as DP master and cyclic data exchange is verified at 1.5 Mbit/s and 12 Mbit/s. DP-V1 acyclic read/write and DP-V2 isochronous mode are tested where firmware supports it. Diagnostic register verification: All diagnostic bytes are read and cross-referenced against ABB's CI830 hardware manual (3BSE013254) to confirm no latent fault flags. Burn-in soak: Units are powered continuously for a minimum of 24 hours at ambient temperature before final packaging.
