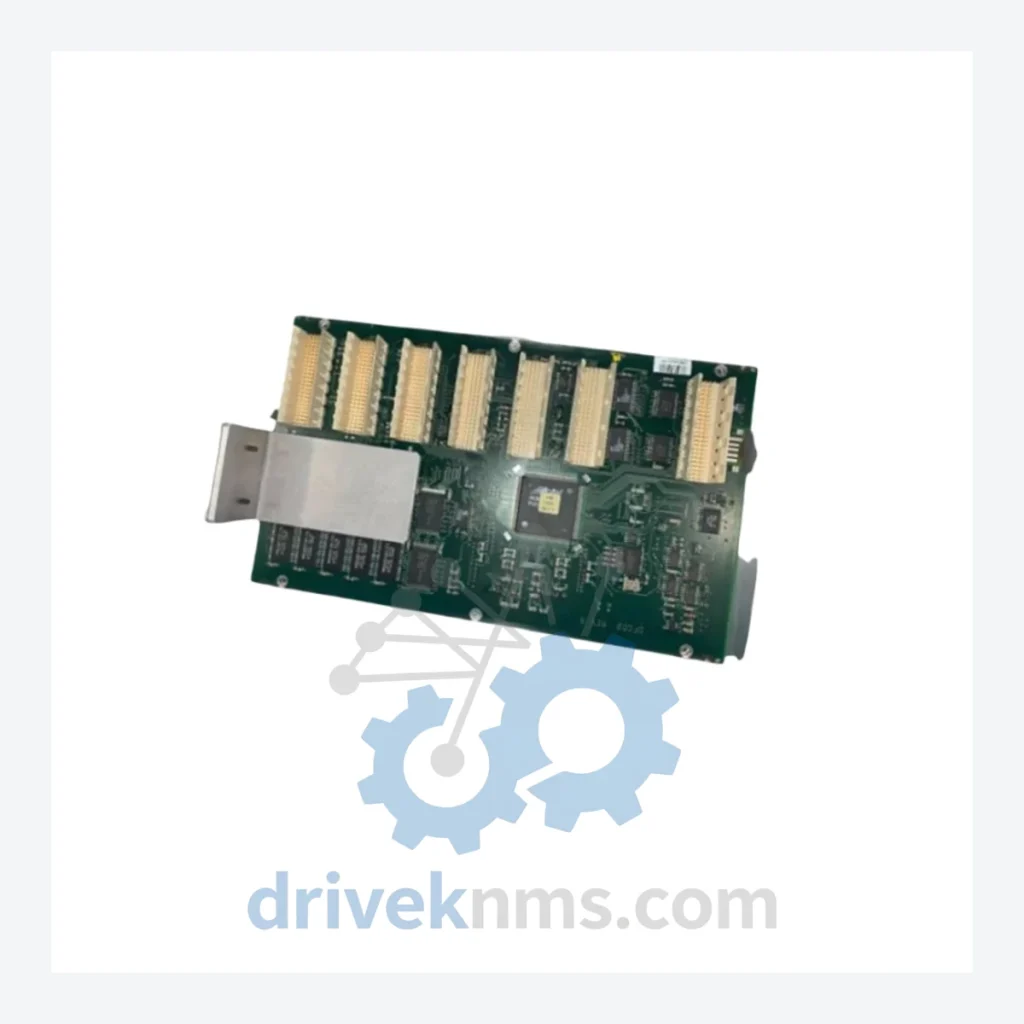

ABB DFC Series Modules – DFC02 FieldController Main Board

Name: ABB DFC Series Modules – DFC02 FieldController Main Board
Brand: ABB

Model: DFC02

Brand ABB

Series DFC02 FieldController Main Board

Model DFC02

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

ABB DFC Series Technical Notes

The ABB DFC (FieldController) series is a core subsystem within ABB's Freelance DCS (Distributed Control System) platform, deployed extensively across global heavy industry sectors including petrochemical refineries, nuclear power auxiliary systems, offshore oil & gas platforms, pulp and paper mills, and large-scale water treatment facilities. The DFC series functions as the field-level controller layer, interfacing directly with field instruments and actuators while communicating upstream to the operator station via the PROFIBUS DP or AF100 fieldbus backbone. Its modular rack-based architecture allows scalable I/O expansion without controller replacement, making it a long-term capital asset in plants with 15–30 year operational lifecycles. Installed base estimates place the DFC series among the top five most widely deployed ABB DCS controller families in continuous process industries across Europe, Asia-Pacific, and the Middle East.

The Evolution of DFC Architecture

The DFC series was introduced as part of ABB's Freelance 2000 platform in the mid-1990s, replacing earlier MOD 300 and PROCONTROL P field controller architectures. The initial DFC hardware generation used proprietary AF100 coaxial fieldbus communication at 2 Mbit/s, with a single-CPU controller design and passive backplane. The second generation introduced redundant CPU configurations (DFC02/DFC02R) and expanded the I/O bus to support up to 16 I/O modules per rack. The third generation integrated PROFIBUS DP V1 master functionality directly into the controller firmware, eliminating the need for a separate communication coupler in many topologies. Compatibility constraints are significant: DFC01 and DFC02 modules share the same physical rack and backplane pinout but differ in firmware revision requirements. DFC modules are not forward-compatible with the AC800F (Freelance 800F) platform without a full hardware migration. Plants running DFC hardware post-2015 are operating in the extended lifecycle phase; ABB's official support window for spare parts procurement closed for several DFC sub-models, shifting sourcing responsibility to authorized third-party distributors and refurbishers.

DFC Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed modules within the ABB DFC series. Modules are classified by functional category.

Controllers / CPU Modules

DFC02: FieldController main board, single CPU, AF100 & PROFIBUS DP master, primary rack controller unit.
DFC02R: Redundant FieldController main board, hot-standby CPU pair configuration for high-availability loops.
DFC01: First-generation FieldController CPU, AF100 only, no integrated PROFIBUS master, predecessor to DFC02.
DFC03: Enhanced FieldController with expanded memory and faster scan cycle, supports larger I/O configurations.

Analog Input (AI) Modules

AI801: 8-channel analog input, 4–20 mA / 0–10 V, HART pass-through, 16-bit resolution.
AI810: 8-channel analog input, isolated, suitable for thermocouple and RTD signal conditioning.
AI820: 8-channel analog input with HART communication, field device diagnostics enabled.
AI830A: 8-channel analog input, redundant-capable, SIL 2 rated for safety instrumented systems.

Analog Output (AO) Modules

AO801: 8-channel analog output, 4–20 mA, 12-bit resolution, loop-powered field devices.
AO810V2: 8-channel analog output with HART, updated firmware for Freelance 2013 and later.
AO820: 8-channel analog output, isolated channels, high-impedance load capability.

Digital Input (DI) Modules

DI801: 16-channel digital input, 24 VDC, sink/source configurable, standard process switching.
DI810: 16-channel digital input, 120 VAC rated, for direct connection to AC field devices.
DI820: 16-channel digital input, potential-free contact input, pulse counting capable.

Digital Output (DO) Modules

DO801: 16-channel digital output, 24 VDC, 0.5 A per channel, transistor output.
DO810: 8-channel relay output, 230 VAC / 2 A, for motor starter and valve actuator control.

Communication & Power Modules

CI801: PROFIBUS DP communication interface, slave mode, connects DFC rack to upstream DCS network.
CI810B: AF100 fieldbus coupler, connects I/O rack to DFC02 controller via coaxial AF100 bus.
SD802F: 24 VDC rack power supply module, 5 A output, redundancy-capable with second SD802F unit.
