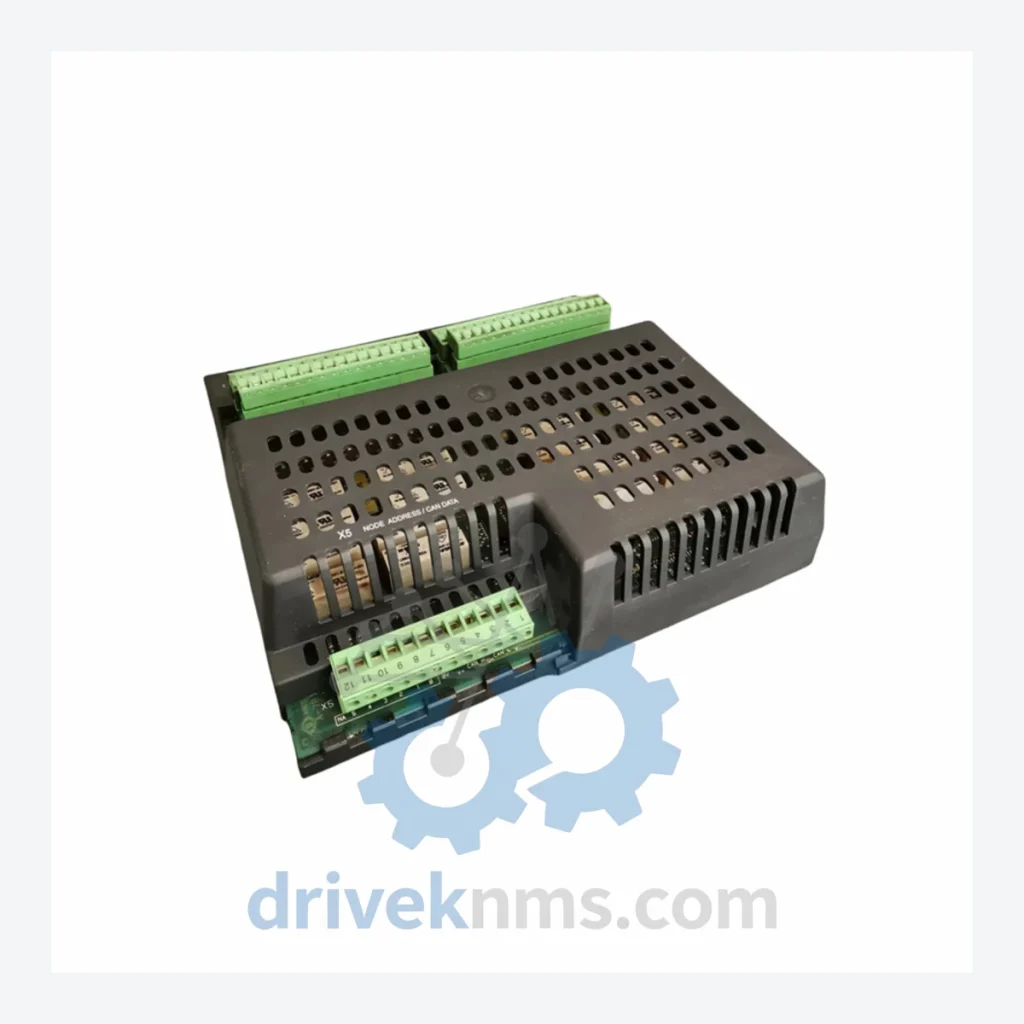

ABB DSQC Series Modules: DSQC332 3HAB9669-1 Digital I/O Module

Technical Dossier

Product Details And Specifications

ABB DSQC Series Technical Notes

The Evolution of DSQC Series Architecture

The DSQC series originated with ABB's S3 and S4 controller generations in the late 1980s and early 1990s, where discrete I/O and axis control were handled by separate, slot-mounted PCB assemblies communicating over a proprietary backplane bus. The S4C+ generation (circa 1998–2005) standardized the DSQC module form factor and introduced the INTERBUS-S and DeviceNet communication adapters as distinct plug-in modules. The IRC5 controller (introduced 2004) retained backward compatibility with many DSQC I/O modules while migrating the CPU and drive architecture to a new platform. This cross-generational compatibility is a critical sourcing consideration: modules such as the DSQC332 (3HAB9669-1) are physically and electrically compatible with both S4C+ and certain IRC5 panel-mount configurations, but firmware revision levels must be verified before substitution. As ABB has progressively end-of-lifed S4 and S4C+ hardware, the DSQC series has entered a mature/end-of-life phase. No new production runs are planned for the majority of DSQC part numbers. Long-term maintenance support — including tested surplus, refurbished exchange, and repair services — is the primary supply channel for these modules.

ABB DSQC Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced modules within the ABB DSQC series. Each entry reflects the module's primary functional role within the robot controller cabinet.

Digital I/O Modules

• DSQC332 / 3HAB9669-1: 24 VDC digital I/O module, 16 inputs / 16 outputs, S4C+ backplane mount.
• DSQC328 / 3HAB2242-1: Digital I/O module, 32 DI / 32 DO, high-density S4C+ configuration.
• DSQC351A / 3HAC4373-1: Digital I/O module with integrated safety relay outputs, IRC5 compatible.
• DSQC355A / 3HAC17973-1: 24 VDC digital I/O, 16 DI / 16 DO, IRC5 panel-mount variant.
• DSQC652 / 3HAC025917-001: 24 VDC digital I/O module, 16 DI / 16 DO, IRC5 standard I/O board.
• DSQC653 / 3HAC025784-001: 24 VDC digital I/O module, 16 DI / 16 DO with relay outputs, IRC5.

Analog I/O Modules

• DSQC354 / 3HAC4376-1: Analog I/O module, 4 AI / 4 AO, ±10 V / 4–20 mA, S4C+ backplane.
• DSQC355 / 3HAC4377-1: Analog I/O module, 8 AI / 4 AO, extended channel count for process integration.
• DSQC651 / 3HAC025784-001: Analog I/O board, IRC5, 4 AI / 2 AO channels, DIN-rail mount.

CPU & Axis Computer Modules

• DSQC500 / 3HAB2242-1: Main computer unit, S4C+ controller, axis and I/O coordination processor.
• DSQC508 / 3HAC7685-1: Axis computer module, S4C+, 6-axis servo coordination.
• DSQC609 / 3HAC14279-1: Power supply and distribution module, IRC5 controller cabinet.

Communication & Fieldbus Adapter Modules

• DSQC336 / 3HAB8101-8: INTERBUS-S master adapter, S4C+ backplane, cyclic data exchange.
• DSQC340 / 3HAB8101-12: DeviceNet master/slave adapter, S4C+, CAN-based fieldbus.
• DSQC350 / 3HAB8101-14: PROFIBUS-DP master adapter, S4C+, 12 Mbit/s max data rate.
• DSQC377A / 3HAC12929-1: Ethernet/IP adapter module, IRC5, 100 Mbit/s, scanner/adapter mode.
• DSQC658 / 3HAC025784-003: PROFIBUS-DP slave adapter, IRC5, GSD file configurable.

Power Supply Modules

• DSQC604 / 3HAC12928-1: 24 VDC regulated power supply, IRC5 cabinet, 10 A output.
• DSQC661 / 3HAC026253-001: Power distribution board, IRC5, internal bus voltage regulation.

Quality Control for the DSQC Series Range

DSQC modules present specific test challenges due to their backplane-dependent architecture: most modules cannot be fully validated without a live S4C+ or IRC5 controller chassis providing the correct bus voltages and communication handshake. DriveKNMS operates dedicated ABB S4C+ and IRC5 test rigs that replicate production controller environments. The test protocol for each DSQC module includes: visual inspection of PCB, connectors, and conformal coating integrity; powered-on bus enumeration verification confirming the module is recognized by the controller CPU; functional I/O channel testing — each digital input and output is individually exercised and verified against expected logic states; for communication adapters, a live fieldbus loopback test confirms data frame integrity at rated baud rates; analog modules are tested against calibrated reference signals across the full input/output range; and burn-in cycling (power on/off, 8-hour soak) to screen for latent component failures. Modules that pass all stages are labeled with a DriveKNMS test certification tag including test date, technician ID, and firmware revision confirmed.
