ABB DSQC Series Modules – DSQC258 Power Supply

Technical Dossier

Product Details And Specifications

ABB DSQC Series Technical Notes

The ABB DSQC (Drive System Quality Control) module series constitutes the core hardware architecture of ABB's S4, S4C, S4C+, and IRC5 industrial robot controller platforms. These controllers are deployed at scale across global heavy industry sectors including petrochemical refineries, nuclear facility material handling, automotive body-in-white welding lines, and offshore platform automation. The DSQC series defines the internal backplane bus structure, I/O expansion topology, and inter-process communication protocols that govern robot cell operation in these environments. Installed base estimates place DSQC-based controllers in active service across hundreds of thousands of robot units worldwide, with a significant proportion operating beyond their original design lifecycle — making verified spare parts availability a critical operational dependency for plant maintenance teams.

The Evolution of DSQC Architecture

The DSQC module lineage originates with ABB's S4 controller platform, introduced in the early 1990s, which established the foundational backplane bus and modular card-cage architecture. The S4C generation refined power distribution and introduced expanded I/O addressing. The S4C+ platform (mid-2000s) brought higher-density I/O modules and improved fieldbus adapter support, with DSQC modules in the 300–500 range forming the primary hardware layer. The IRC5 controller, launched circa 2004 and remaining ABB's current standard platform, introduced a distributed modular architecture with the DSQC 600-series drive units and a revised communication bus. Compatibility between generations is not universal: S4C+ modules are not directly interchangeable with IRC5 modules without controller firmware and hardware configuration verification. Many S4 and S4C+ DSQC modules have been formally discontinued by ABB, creating a sustained aftermarket demand for tested surplus and refurbished units. Plant operators running mixed-generation robot fleets must maintain parallel spare parts inventories across DSQC generations to ensure uptime continuity.

DSQC Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced modules within the ABB DSQC series. Modules are classified by primary function:

Power Supply Modules

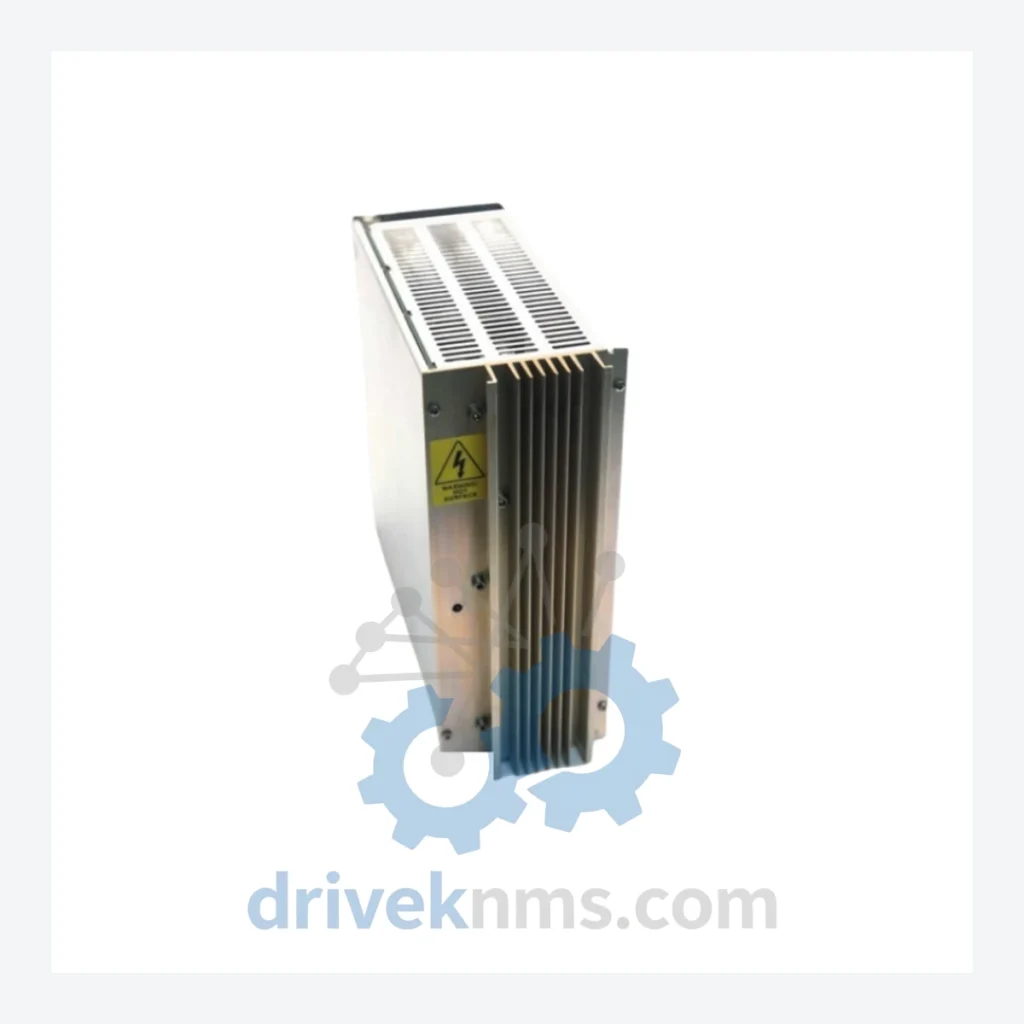

• DSQC258: 24VDC regulated power supply module for S4C+ controller backplane; provides logic and I/O rail power distribution.
• DSQC604: IRC5 controller power supply unit; dual-rail output for compute and I/O subsystems.
• DSQC661: Compact power supply for IRC5 single-cabinet controller; integrated over-current protection.

CPU / Main Computer Modules

• DSQC639: IRC5 main computer unit; runs RobotWare OS, manages motion planning and program execution.
• DSQC668: IRC5 main computer board; upgraded processing capacity over DSQC639 for complex path programs.
• DSQC1000: IRC5 main computer; current-generation compute module with expanded memory and USB interface.
• DSQC373: S4C+ main computer board; manages axis control and I/O coordination for legacy S4C+ cells.

Digital I/O Modules

• DSQC328A: 24-channel digital I/O module for S4C+ systems; 16 DI / 8 DO configuration.
• DSQC652: IRC5 digital I/O board; 16 digital inputs and 16 digital outputs, 24VDC logic level.
• DSQC643: IRC5 digital I/O module; extended channel count for high-density signal interfacing.
• DSQC351B: S4C+ digital output module; relay-type outputs for high-current peripheral switching.

Analog I/O Modules

• DSQC355A: S4C+ analog I/O module; 4 AI / 2 AO channels, 0–10V and 4–20mA signal ranges.
• DSQC649: IRC5 analog I/O board; 4 analog inputs and 4 analog outputs for process signal integration.

Communication & Fieldbus Adapter Modules

• DSQC378B: DeviceNet fieldbus adapter for S4C+ controllers; master/slave configurable, 125–500 kbps.
• DSQC688: IRC5 PROFIBUS DP adapter module; supports DP-V0 and DP-V1 communication profiles.
• DSQC669: IRC5 DeviceNet adapter; CAN-based fieldbus interface for peripheral device networks.
• DSQC679: IRC5 EtherNet/IP adapter; 100 Mbps industrial Ethernet fieldbus integration.

Axis & Drive Interface Modules

• DSQC617: IRC5 drive unit for axes 1–3; controls servo amplifier stages for primary robot axes.
• DSQC618: IRC5 drive unit for axes 4–6; wrist axis servo control module.
