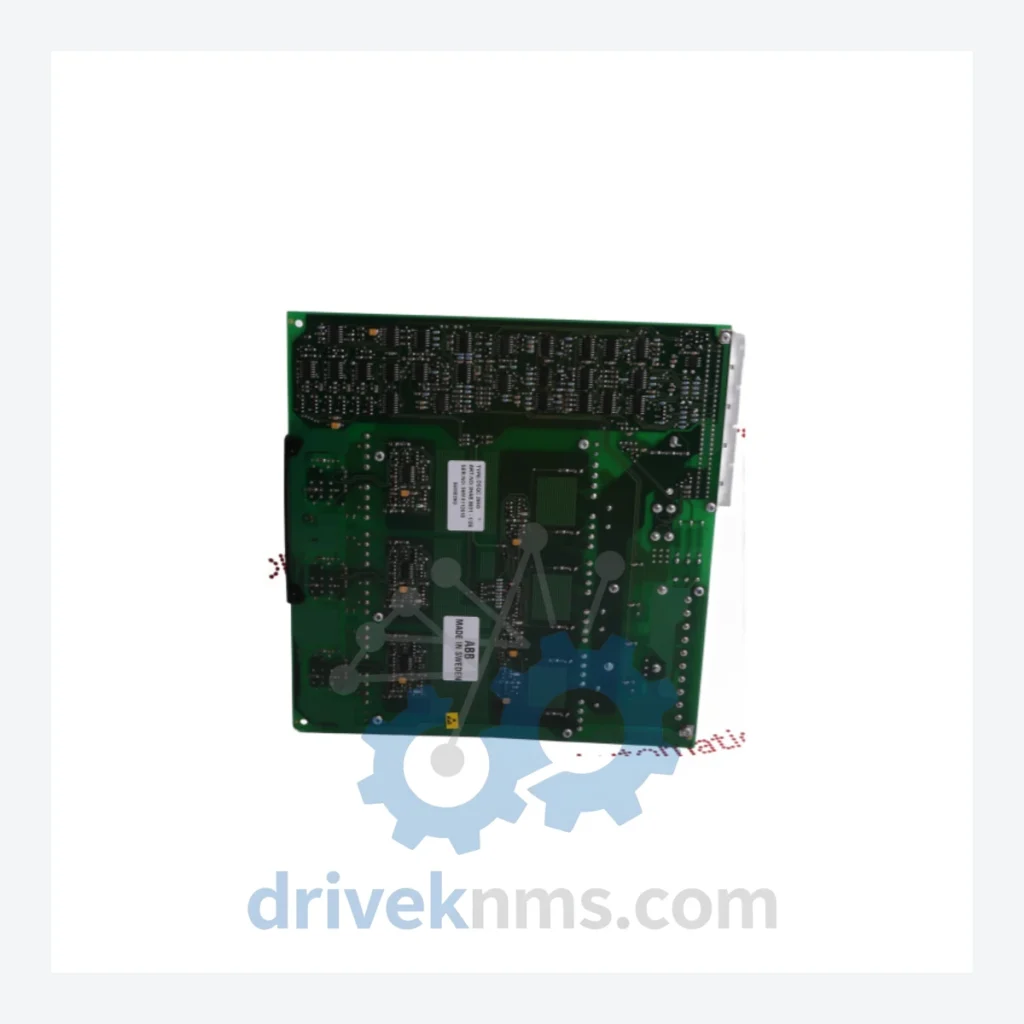

ABB DSQC Series Modules – DSQC266G Servo Amplifier Board

Technical Dossier

Product Details And Specifications

ABB DSQC Series Technical Notes

The ABB DSQC (Drive System Quality Control) series constitutes the core electronics platform for ABB's IRB industrial robot controllers, spanning the S3, S4, S4C, S4C+, and IRC5 controller generations. These modules are deployed across heavy-process industries including petrochemical refineries, nuclear power plant material handling systems, automotive body-in-white welding lines, and continuous-process chemical plants. Global installed base estimates place DSQC-series hardware in excess of 500,000 active robot controller cabinets worldwide, making lifecycle parts availability a critical operational concern for maintenance engineers and plant reliability teams.

The Evolution of DSQC Architecture

The DSQC designation was introduced with the S3 controller platform in the mid-1980s, initially covering analog servo drive boards and basic I/O interface cards. The S4 generation (introduced circa 1994) expanded the DSQC catalog significantly, introducing dedicated CPU boards, fieldbus adapter modules, and modular I/O racks. The S4C and S4C+ revisions (1998–2004) refined the backplane bus architecture and introduced higher-density I/O modules. The IRC5 controller (2004–present) retained the DSQC naming convention while migrating to a distributed motion control architecture with SERCOS and EtherNet/IP communication layers.

Compatibility between generations is limited: S4 and S4C modules share partial backplane compatibility, but S3 and IRC5 modules are architecturally incompatible with earlier generations. Engineers sourcing replacement parts must verify the exact controller generation and software revision before substitution. ABB has formally discontinued support for S3 and S4 generation hardware; S4C reached end-of-service in most regions by 2020. Plants operating legacy fleets face a binary decision: full controller replacement at capital cost, or lifecycle extension through verified spare parts sourcing.

DSQC Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced modules within the ABB DSQC series, organized by functional category. All models listed are confirmed members of the DSQC product family.

Servo Drive & Amplifier Boards

• DSQC266G: Servo amplifier board for IRB S4/S4C axis drive systems; controls motor torque and velocity loops.
• DSQC236T: Drive unit interface board; bridges main computer to axis drive hardware in S4C cabinets.
• DSQC256A: Rectifier and drive power board; manages DC bus regulation for multi-axis S4 systems.
• DSQC261: Axis computer board; executes real-time servo loop calculations for up to 6 axes.
• DSQC269A: Servo drive board variant for extended-axis configurations in S4C+ controllers.

CPU & Main Computer Boards

• DSQC239: Main computer board for S4 controller; hosts the robot operating system and task execution environment.
• DSQC346A: Main computer board for S4C; upgraded processor and expanded RAM over DSQC239.
• DSQC373: Main computer board for S4C+; supports dual-processor configuration for high-speed applications.
• DSQC532: IRC5 main computer board; runs RobotWare 5.x on a Linux-based real-time OS.

Digital & Analog I/O Modules

• DSQC328A: 24 VDC digital I/O board; 16 inputs / 16 outputs for S4C system integration.
• DSQC355A: Analog I/O board; 4 analog inputs and 4 analog outputs, 0–10 V / 4–20 mA selectable.
• DSQC652: IRC5 digital I/O board; 16 DI / 16 DO, 24 VDC, DIN rail mountable.
• DSQC643: IRC5 analog I/O board; 4 AI / 4 AO with configurable signal ranges.

Communication & Fieldbus Adapter Modules

• DSQC350A: DeviceNet adapter board for S4C; enables integration with DeviceNet master PLCs and scanners.
• DSQC378B: Profibus-DP adapter for S4C+; supports up to 12 Mbps data rate, slave mode operation.
• DSQC658: IRC5 EtherNet/IP adapter; supports implicit and explicit messaging for Rockwell PLC integration.
• DSQC679: IRC5 FlexPendant interface board; manages teach pendant communication and safety interlocks.

Power Supply & Safety Boards

• DSQC604: IRC5 power distribution board; manages 24 VDC logic supply and safety relay circuits.
• DSQC662: Safety board for IRC5; implements EN ISO 13849-1 PLd safety functions including E-stop and safeguard monitoring.

Quality Control for the DSQC Range

DSQC modules present specific test challenges due to their multi-layer backplane bus architecture and mixed analog/digital signal paths. DriveKNMS applies the following validation protocol to all DSQC units prior to shipment:

• Visual inspection: PCB trace integrity, capacitor condition (electrolytic aging assessment), connector pin alignment, and conformal coating evaluation.
• Power-on test: Module energized at rated voltage; all supply rail voltages verified against ABB service manual tolerances.
• Functional bus test: Backplane communication signals verified using a dedicated S4/IRC5 test rack with known-good companion modules.
• Servo loop validation (amplifier boards): Motor current loop response tested under simulated load; gain parameters verified against factory defaults.
• Fieldbus protocol test (communication modules): DeviceNet, Profibus, and EtherNet/IP adapters tested for correct node addressing, data throughput, and error frame rejection.
• Burn-in: All repaired or refurbished units subjected to 48-hour continuous operation at elevated ambient temperature before final inspection.
• Serialization: Each unit assigned a DriveKNMS test record number traceable to test date, technician, and test equipment used.
