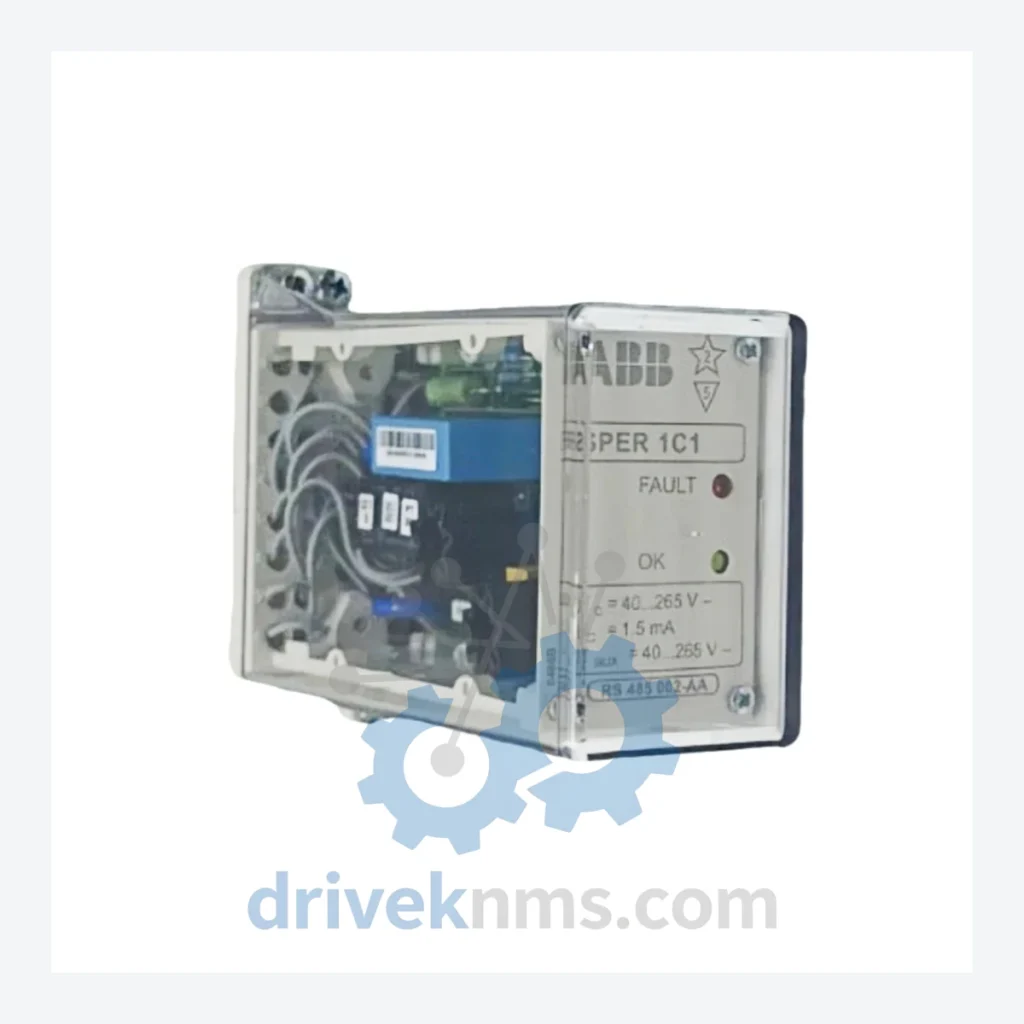

ABB EB144053SPER Relays

Technical Dossier

Product Details And Specifications

ABB EB144053SPER Series: Comprehensive Module Range and Technical Overview

The ABB EB144053SPER is a trip circuit supervision relay module deployed across high-criticality industrial installations including chemical processing plants, nuclear power stations, oil refineries, and grid substations. Designed to continuously monitor the integrity of circuit breaker trip coil circuits, this relay detects open-circuit faults, loss of DC supply, and wiring failures before a protection operation is demanded. Its role is fundamental to IEC 61511 and IEC 61508 functional safety compliance in SIL-rated protection loops. The EB144053SPER 1C1-AA variant is a single-channel, single-output configuration with auxiliary contact output, widely integrated into ABB REF615, REL650, RET615, and REB500 protection relay panels across global heavy industry.

The Evolution of EB144053SPER Architecture

ABB's trip circuit supervision relay product line evolved from discrete electromechanical supervision modules used in 1980s switchgear panels to the current solid-state and microprocessor-assisted designs. Early supervision was performed by simple current-sensing relays wired in series with the trip coil; these were prone to nuisance operation and offered no diagnostic output. The EB144053SPER generation introduced continuous impedance monitoring with configurable alarm thresholds, allowing integration into SCADA and DCS alarm management systems via dry contact outputs.

The 1C1-AA suffix denotes: 1 supervised channel (1C), 1 output contact (1), auxiliary voltage range A (typically 24–250 V DC/AC universal), and variant revision A. Later suffix variants (1C1-AB, 2C1-AA) extended the channel count and output configuration. The module is mechanically compatible with ABB's standard 35 mm DIN rail mounting and interfaces with the REF615 relay's binary input terminals without additional signal conditioning. As ABB's protection relay platform migrated toward the Relion 615 and 650 series, the EB144053SPER retained backward compatibility, making it a long-lifecycle component with continued demand in brownfield plant maintenance.

EB144053SPER Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified EB144053SPER series and closely associated ABB trip circuit supervision and relay accessory modules. Each entry reflects a distinct functional configuration:

EB144053SPER 1C1-AA: Single-channel trip circuit supervision, universal 24–250 V DC/AC, 1 output contact, DIN rail mount.
EB144053SPER 1C1-AB: Single-channel supervision, revised output relay timing, enhanced EMC filtering.
EB144053SPER 2C1-AA: Dual-channel trip circuit supervision, independent monitoring of two trip coil circuits.
EB144053SPER 2C2-AA: Dual-channel, dual-output configuration for redundant alarm annunciation.
REF615 HBFAEAGG: Feeder protection relay, integrates with EB144053SPER for complete trip circuit monitoring.
REF615 HBFAEAGG-LHMI: REF615 with local HMI panel, used in conjunction with external supervision modules.
REB500: Busbar protection IED; EB144053SPER used for trip circuit supervision of associated CBs.
RET615 BFCAABG: Transformer protection relay, paired with EB144053SPER in transformer bay panels.
REL650: Line distance protection IED; EB144053SPER monitors trip coil continuity in transmission applications.
SPAJ 140 C: Legacy ABB overcurrent and earth-fault relay; EB144053SPER used as external supervision add-on.
SPAU 341 C1: ABB trip circuit supervision relay, predecessor generation to EB144053SPER series.
SPAU 330 C1: Earlier ABB supervision relay, single-channel, electromechanical output, now obsolete.
RTXP 18: ABB test switch for protection relay panels; used in same panel assemblies as EB144053SPER.
COMBIFLEX RXMVB2: ABB auxiliary relay module, used alongside EB144053SPER in output extension circuits.
RXMA1: ABB miniature auxiliary relay, trip circuit extension; compatible with EB144053SPER output contacts.
EB144053SPER 1C1-AA/S: Special-order variant with conformal coating for high-humidity environments (offshore, coastal substations).
EB144053SPER 1C1-AA/L: Low-power consumption variant for battery-backed DC systems with restricted current budget.

Sourcing Hard-to-Find & Obsolete EB144053SPER Parts

DriveKNMS maintains a dedicated inventory program for ABB protection relay accessories including the full EB144053SPER range. As ABB consolidates its relay accessory catalog and transitions customers toward integrated supervision functions within the Relion 670 series IEDs, standalone supervision modules such as the EB144053SPER are increasingly sourced from the secondary market. DriveKNMS sources verified units through authorized dismantling of decommissioned switchgear panels, factory-surplus channels, and direct OEM overstock agreements. All units are cataloged by suffix variant, manufacturing date code, and firmware revision where applicable. For plant operators requiring long-term maintenance contracts covering 10–25 year asset lifecycles, DriveKNMS offers reserved stock agreements with guaranteed availability windows. Obsolete suffix variants including SPAU 330 C1 and SPAU 341 C1 predecessors are also stocked to support legacy panel maintenance without full protection relay replacement.

Quality Control for the EB144053SPER Range

Each EB144053SPER unit processed by DriveKNMS undergoes a structured inspection and functional test protocol specific to trip circuit supervision relay technology. Visual inspection covers terminal block integrity, relay coil housing, output contact condition, and DIN rail clip mechanism. Electrical testing applies the full rated auxiliary voltage range (24 V DC to 250 V AC) to verify supervision circuit activation thresholds and output contact switching. Contact resistance is measured on all output contacts using a four-wire milliohm measurement to confirm values within ABB's published specification. Insulation resistance testing at 500 V DC is performed between all isolated circuit groups. For dual-channel variants (2C1-AA, 2C2-AA), channel independence is verified by inducing a fault condition on one channel and confirming no cross-channel interference. Units are tested against ABB's published operate time and reset time specifications before being released to stock. Each unit ships with a DriveKNMS test certificate recording all measured parameters.
