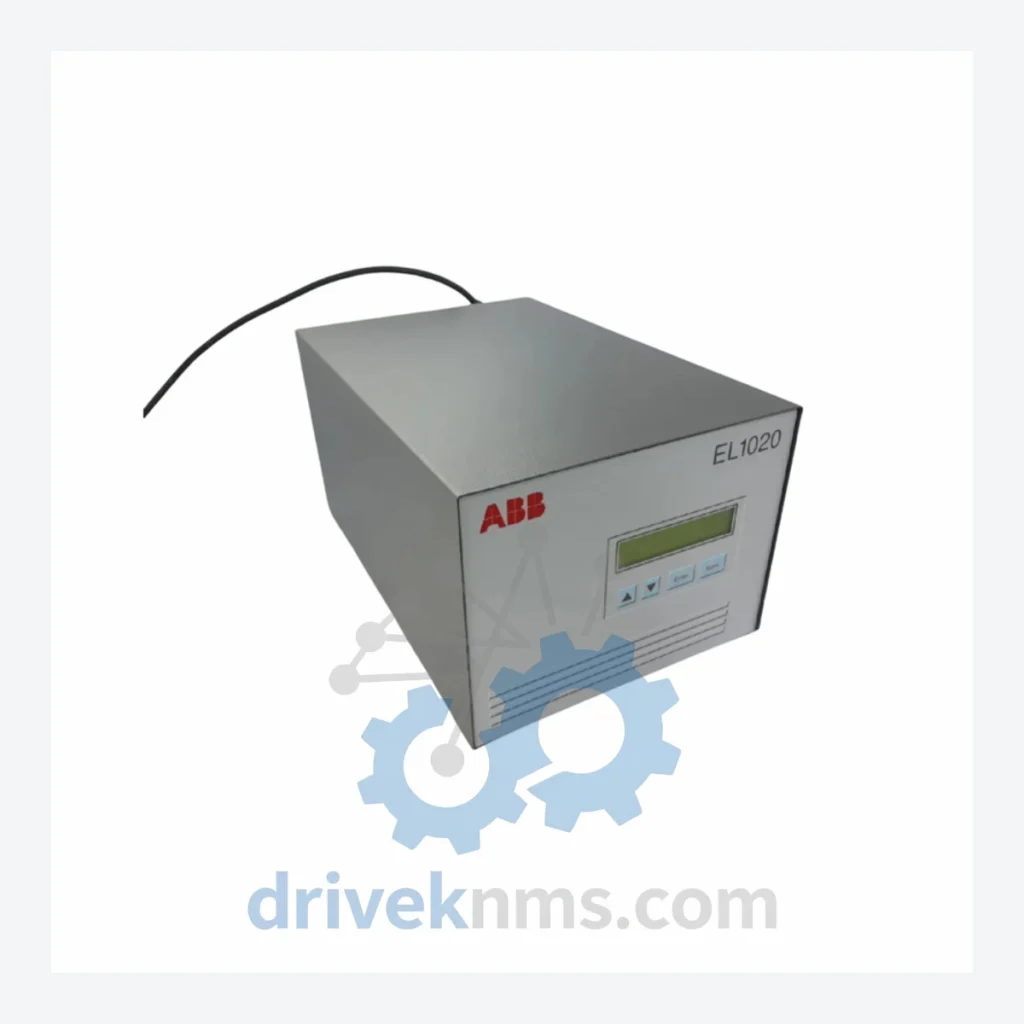

ABB EL1020-02 Gas Analyzer – Obsolete Advance Optima Series Spare Part

Technical Dossier

Product Details And Specifications

ABB EL1020-02 Gas Analyzer – Obsolete Advance Optima Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters not listed here are not confirmed from verified documentation. DriveKNMS does not publish unverified specifications. Contact us for datasheet support.

Solving the Discontinued Hardware Crisis

For a plant running an AO2000-series analyzer, the EL1020-02 is not a peripheral accessory — it is the measurement engine. Its failure does not produce a degraded reading; it produces no reading at all. In regulated environments, that means a mandatory process shutdown until measurement integrity is restored.

Condition & Reliability Assurance

DriveKNMS applies a structured 5-step qualification process to every EL1020-02 unit before it is offered for sale. This process is designed specifically for the failure modes common to long-stored or previously installed analyzer modules:

Step 1 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary cause of latent failure in stored electronic modules. Each unit undergoes capacitor ESR measurement and visual inspection for bulging, leakage, or venting. Units with degraded capacitors are either recapped with specification-matched components or removed from inventory.

Step 2 – Firmware Version Verification: The EL1020-02 carries embedded firmware that must be compatible with the host AO2000 system version. Firmware revision is confirmed and documented before dispatch. Mismatched firmware is a known source of communication faults that are frequently misdiagnosed as hardware failure.

Step 3 – Connector and Pin Corrosion Inspection: All edge connectors and pin interfaces are inspected under magnification for oxidation, corrosion, and mechanical deformation. Affected contacts are cleaned using appropriate contact restoration procedures. Severely corroded connectors result in unit rejection.

Step 4 – Functional Bench Test: Where test equipment permits, modules are powered and subjected to functional verification against known-good reference parameters.

Step 5 – Packaging and ESD Protection: Units are packaged in anti-static shielding bags with desiccant, inside rigid protective cartons. Shipping conditions are documented.

Key Features for System Maintenance

The EL1020-02 is a direct drop-in replacement for the original module position within the Advance Optima analyzer chassis. No hardware modification to the host system is required. In the majority of installations, no re-programming of the host controller is necessary — the replacement module assumes the configuration stored in the system's non-volatile memory.

Avoiding a platform migration also means avoiding the associated costs: new I/O wiring, updated PLC or DCS interface configuration, revised P&IDs, updated maintenance procedures, and the organizational overhead of qualifying a new vendor. For a facility managing 10 or 20 analyzer points, those costs are not trivial.

Can DriveKNMS source other Advance Optima spare parts?
Yes. DriveKNMS specializes in obsolete and hard-to-find industrial automation components across multiple platforms. Contact us with your full part number for availability confirmation.
