ABB Freelance DCS I/O Modules: 1SFB536068D1013-A

Technical Dossier

Product Details And Specifications

ABB Freelance DCS Series Technical Notes

The Evolution of Freelance DCS Architecture

ABB's Freelance DCS lineage originates from the ADVANT Controller 450 (AC450) platform introduced in the early 1990s, which established the modular S800 I/O concept. The architecture transitioned through the AC800F (Freelance) generation, which introduced the PROFIBUS DP and FOUNDATION Fieldbus communication layers, enabling direct field device integration without marshalling cabinets. The AC800F controller communicates with I/O modules via a proprietary high-speed backplane bus operating at deterministic scan rates. Modules in the 1SFB5xxxxx part-number range are native to this backplane architecture and are not cross-compatible with the AC500 PLC I/O bus or the S800 I/O used on AC800M systems without dedicated interface modules. As the Freelance platform has entered its mature/end-of-active-development phase, ABB has positioned the Freelance 2.0 (Symphony Plus Freelance) as the migration path; however, the original hardware remains in active service at thousands of sites globally, creating sustained demand for verified spare modules. Long-term maintenance support for this series is a primary service offering at DriveKNMS.

Freelance DCS Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked modules within the ABB Freelance DCS I/O and controller ecosystem. Each entry reflects a distinct hardware function within the AC800F architecture.

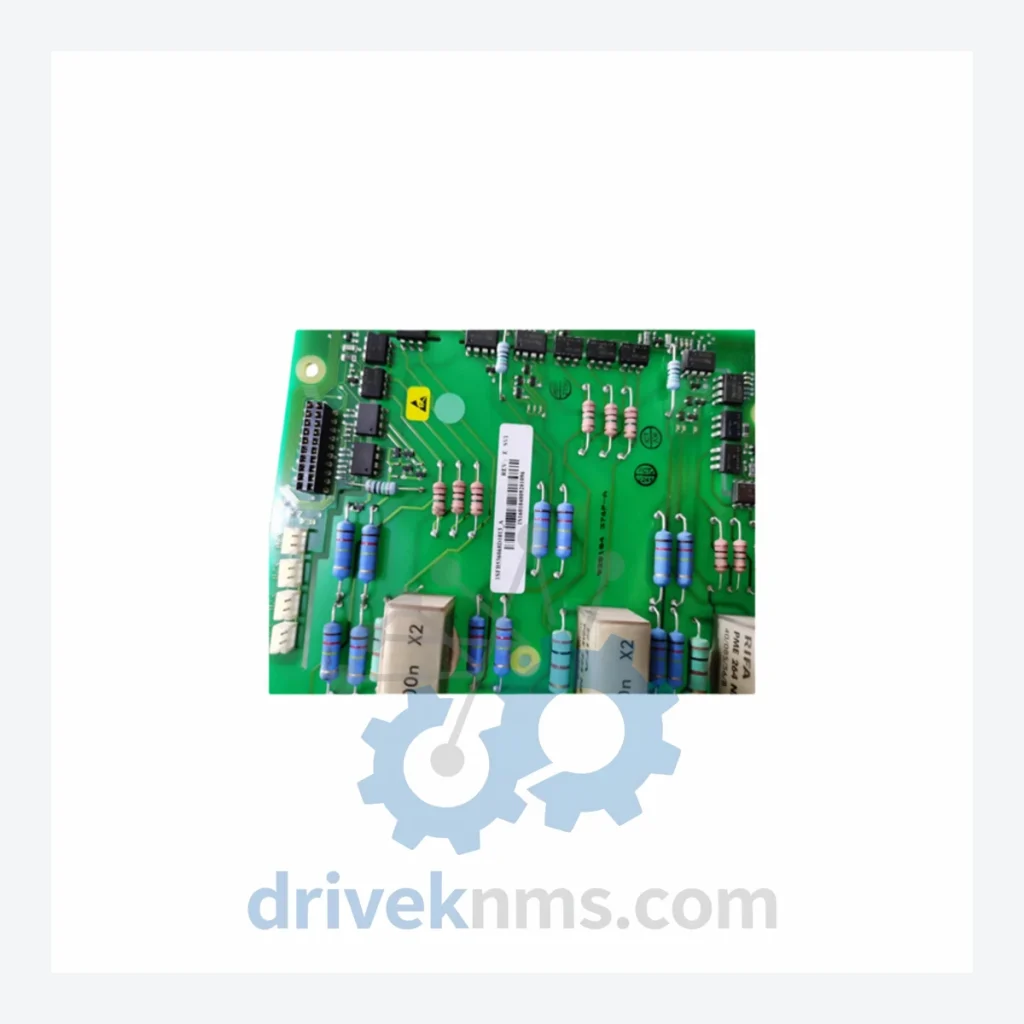

1SFB536068D1013-A: Digital/Analog I/O module, Freelance DCS backplane-native, 24 VDC field supply
1SFB536000R1001: AI810 Analog Input module, 8-channel, 4–20 mA / 0–10 V, HART-capable
1SFB536001R1001: AO810 Analog Output module, 8-channel, 4–20 mA isolated outputs
1SFB536010R1001: DI810 Digital Input module, 24-channel, 24 VDC, sink/source configurable
1SFB536011R1001: DO810 Digital Output module, 16-channel, 24 VDC, 0.5 A per channel
1SFB536020R1001: DI820 Digital Input module, 16-channel, 120 VAC field voltage
1SFB536021R1001: DO820 Digital Output module, 8-channel, relay output, 250 VAC / 5 A
1SFB536030R1001: AI820 Analog Input module, 16-channel, RTD/TC/mV universal input
1SFB536031R1001: AO820 Analog Output module, 16-channel, 4–20 mA, loop-powered
1SFB536040R1001: CI801 PROFIBUS DP Communication Interface, master/slave configurable
1SFB536041R1001: CI810B FOUNDATION Fieldbus H1 Communication Interface, 2-segment
1SFB536050R1001: CI830 DeviceNet Communication Interface, scanner mode
1SFB536060R1001: TB820V2 ModuleBus Optical Modem, fiber-optic I/O bus extension
1SFB536061R1001: TB840A ModuleBus Modem, copper, redundant bus topology support
1SFB536070R1001: PS810 Power Supply module, 24 VDC, 10 A, redundancy-capable
1SFB536071R1001: PS820 Power Supply module, 120/230 VAC input, 24 VDC / 5 A output
1SFB536080R1001: AC800F Controller CPU module, 32 MB RAM, dual Ethernet, IEC 61131-3
1SFB536081R1001: AC800F/HR High-Redundancy CPU module, hot-standby bumpless transfer

Sourcing Hard-to-Find & Obsolete Freelance DCS Parts

ABB has formally transitioned the Freelance DCS platform to limited lifecycle support. New production of several I/O module variants — including early-revision 1SFB5xxxxx part numbers — has been discontinued. DriveKNMS maintains a dedicated inventory of tested, pull-out, and refurbished Freelance DCS modules sourced from decommissioned plant shutdowns and controlled dismantling projects. For the 1SFB536068D1013-A and related variants, DriveKNMS provides: (1) direct replacement units with original firmware revisions preserved; (2) cross-reference matching to identify functionally equivalent successor modules where applicable; (3) long-term consignment agreements for plant operators requiring guaranteed 5–10 year spare part availability. All obsolete modules are catalogued against their original ABB part revision matrix to prevent firmware-incompatible substitutions.

Quality Control for the Freelance DCS Range

Freelance DCS modules present specific test challenges due to their backplane-dependent initialization sequence and bus arbitration logic. DriveKNMS applies a dedicated test protocol for this series: each module undergoes (1) visual inspection against ABB component-level schematics for capacitor degradation and relay contact wear; (2) powered bench test using a live AC800F controller rack to verify backplane enumeration and module-ID handshake; (3) channel-level functional test — all I/O channels are exercised at rated field voltage and current to confirm within-spec accuracy (±0.1% FS for analog, <2 ms response for digital); (4) communication interface modules (CI801, CI810B, CI830) are tested against live PROFIBUS/FF/DeviceNet field device simulators; (5) final burn-in at 40°C for 24 hours prior to shipment. Each unit ships with a DriveKNMS test certificate referencing the specific module serial number and test date.
