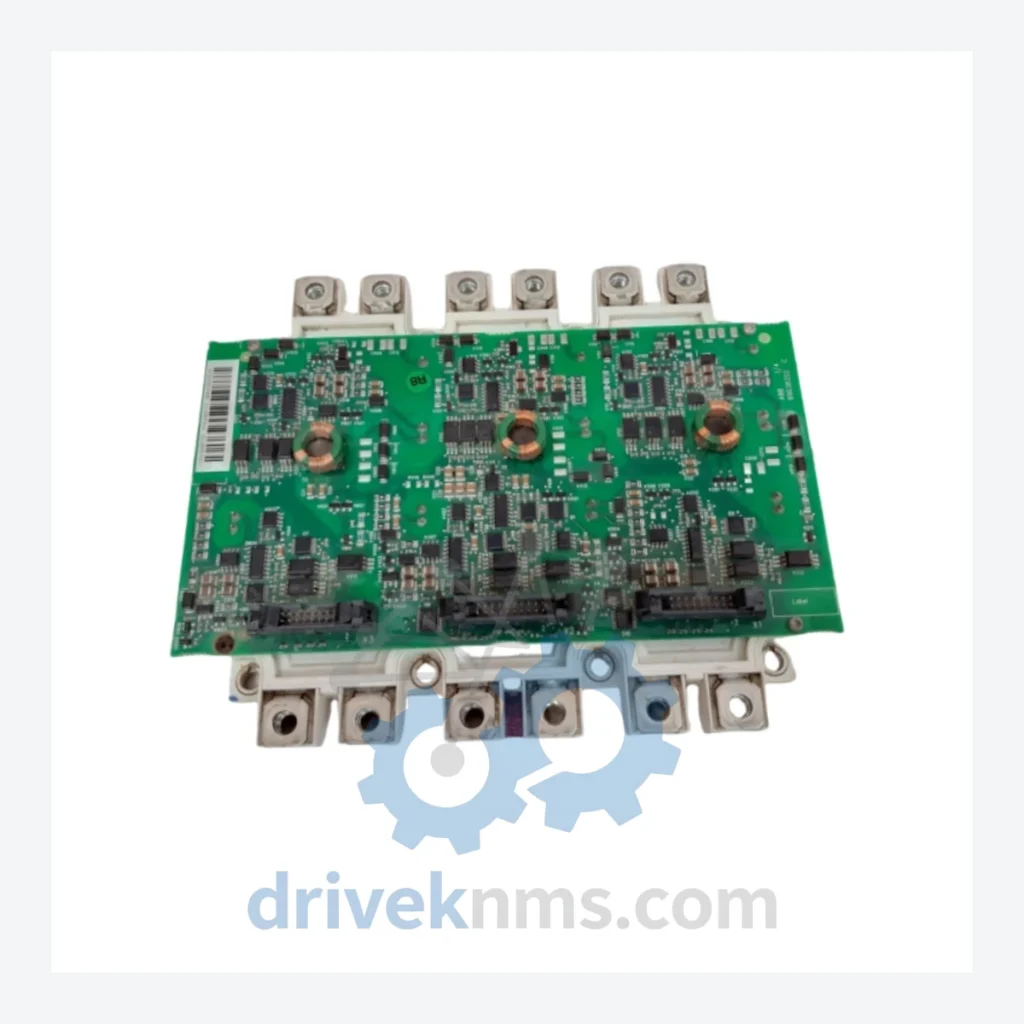

ABB FS450R12KE3/AGDR-71C IGBT Module – Obsolete ACS Series Spare Part

When the power conversion stage of an ABB ACS600 or ACS800 drive fails, the financial exposure is rarely limited to the cost of the drive itself. A single unplanned shutdown on a continuous process line — cement kiln, paper machine, steel rolling mill — can generate losses measured in tens of thousands of dollars per hour. A full drive system upgrade, including engineering, rewiring, PLC reprogramming, and recommissioning, routinely exceeds USD 200,000–500,000 per axis. The FS450R12KE3/AGDR-71C is the core switching assembly in these drives. Without it, the drive is scrap. DriveKNMS holds RFQ-reviewed sourcing status of this discontinued assembly. This is not a catalog listing — it is a RFQ-reviewed sourcing status position on a part that ABB ceased manufacturing years ago.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Solving the Discontinued Hardware Crisis

The ABB ACS600 and ACS800 drive families were deployed extensively throughout the 1990s and 2000s in heavy industry — pulp and paper, metals processing, marine propulsion, and municipal water infrastructure. Many of these installations remain in active production service today, anchored by process designs and electrical infrastructure that were engineered around these specific drive platforms.

ABB's end-of-life declaration for the FS450R12KE3/AGDR-71C assembly does not eliminate the operational demand for it. It transfers the procurement burden entirely to the end user. The AGDR-71C gate driver is not a generic component — it uses ABB's proprietary fiber-optic interface protocol and is electrically matched to the FS450R12KE3 module's gate characteristics. Substituting a generic gate driver is not a viable field option without significant engineering intervention.

The long-term maintenance strategy for any facility still operating ACS600/ACS800 platforms should include a minimum of one cold-spare FS450R12KE3/AGDR-71C assembly per critical drive axis. For facilities with three or more drives on this platform, a pooled spare strategy — two assemblies shared across the fleet — represents the lowest-cost risk mitigation available.

Condition & Reliability Assurance

Every FS450R12KE3/AGDR-71C assembly processed by DriveKNMS passes a structured 5-stage inspection protocol before it is offered for sale. This protocol was developed specifically for aging power electronics where latent failure modes are not visible to standard incoming inspection.

Stage 1 – Electrolytic Capacitor Assessment: The AGDR-71C gate driver board contains electrolytic capacitors that degrade with age regardless of operating hours. Each board is inspected for capacitor bulging, electrolyte leakage, and ESR deviation. Boards with out-of-tolerance capacitors are recapped with equivalent-specification components before release.

Stage 2 – Firmware Version Verification: The AGDR-71C carries embedded firmware that governs gate timing and fault response. Firmware version is recorded and cross-referenced against known compatibility matrices for ACS600/ACS800 control boards. Mismatched firmware versions are a documented cause of nuisance tripping in the field.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Stage 4 – IGBT Module Static Testing: The FS450R12KE3 module is tested for gate-emitter threshold voltage, collector-emitter leakage, and diode forward voltage drop. Results are logged against Infineon's published datasheet limits.

Stage 5 – Final Documentation: Each assembly ships with a test record, condition classification (NOS or Refurbished), and traceability documentation.

Key Features for System Maintenance

The FS450R12KE3/AGDR-71C is a direct drop-in replacement for the original assembly in ACS600 and ACS800 drives. No firmware changes to the drive control board are required. No re-parameterization of the drive application program is necessary. The mechanical mounting pattern, fiber-optic connector positions, and DC bus terminal layout are identical to the original factory configuration.

Q: How is condition confirmed before quotation?
A: Available condition, photos, test records and documentation are checked according to the requested model and sourcing channel before a formal RFQ response.

How do I confirm the condition of the unit I receive?
Every shipment includes a written condition report and test log generated during our 5-stage inspection process. The condition classification — NOS or Refurbished — is stated on the shipping documentation and invoice.

Can this assembly be used in drives other than ACS600/ACS800?
The FS450R12KE3 module itself is a standard Infineon component used in various third-party drive designs. The AGDR-71C gate driver is ABB-specific. The matched assembly as listed here is validated for ACS600/ACS800 applications. Use in other platforms requires independent engineering verification.
