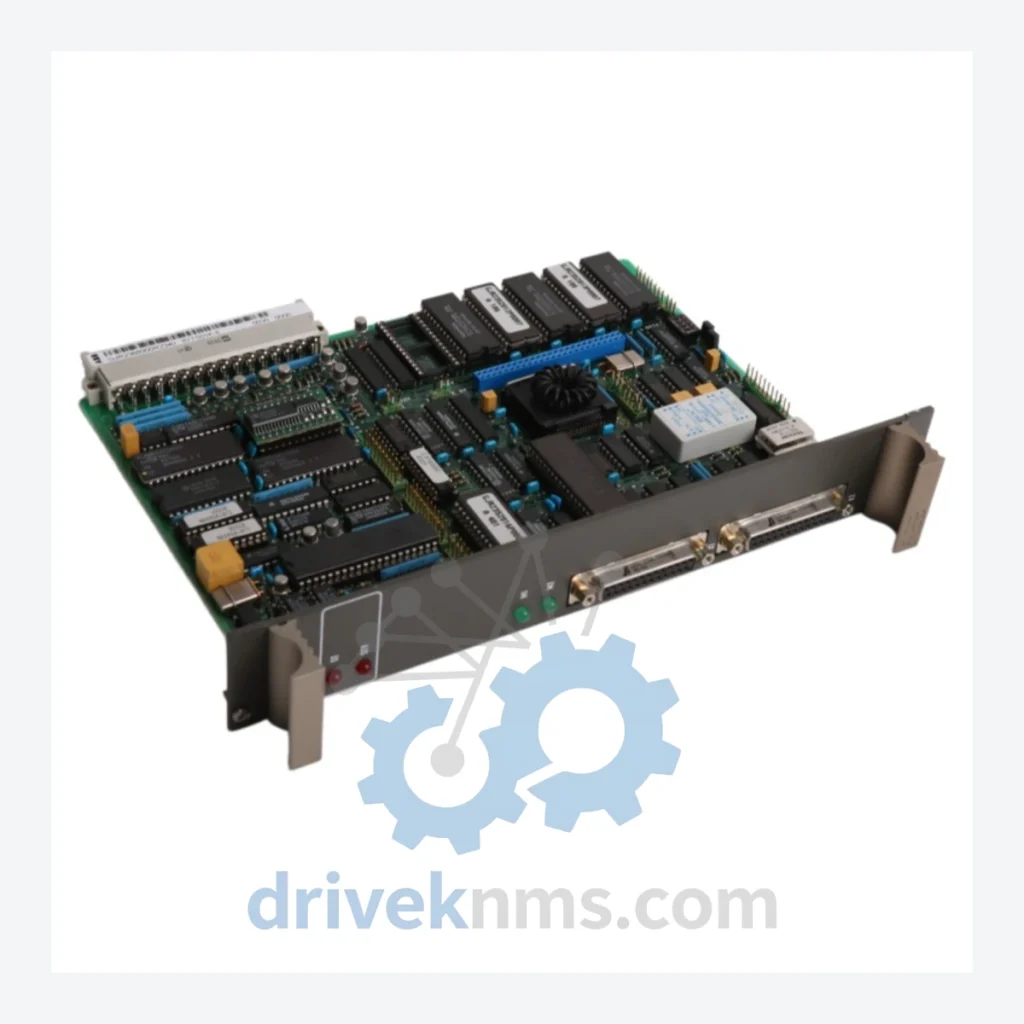

ABB GJR2368900R1348 Coupling Module – Obsolete AC500 Spare Part: Protecting Your Automation Investment

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters for discontinued components vary by hardware revision. DriveKNMS will provide revision-specific documentation upon request. No parameters are assumed or fabricated.

Solving the Discontinued Hardware Crisis

The ABB AC500 platform was widely deployed across process industries, water treatment, building automation, and discrete manufacturing throughout the 2000s and 2010s. Many of these installations remain fully operational — the control logic is proven, the operators are trained, and the infrastructure is paid for. The business case for maintaining these systems is straightforward: a functioning AC500 installation that requires a single coupling module is not a system that needs to be replaced. It is a system that needs a part.

The coupling module GJR2368900R1348 serves as the physical and electrical bridge between the AC500 CPU rack and expansion I/O modules. In distributed architectures, this component is load-bearing in the most literal sense — its failure isolates entire I/O segments from the controller. There is no software workaround. There is no configuration change that compensates for a missing or failed coupling module. The system stops.

Condition & Reliability Assurance

Every GJR2368900R1348 unit processed by DriveKNMS passes through a structured 5-step quality assurance protocol before it is offered for sale. This process is designed specifically for the failure modes common to legacy industrial electronics:

Step 1 – Visual and Mechanical Inspection: Full external examination for physical damage, housing cracks, connector deformation, and label integrity. Units with compromised housings are rejected at this stage.

Step 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure vector in legacy control hardware. Each unit is assessed for capacitor bulging, leakage, and ESR deviation. Where degradation is confirmed, capacitors are replaced with specification-matched components.

Step 3 – Pin and Connector Corrosion Check: Backplane connectors and I/O interface pins are inspected under magnification for oxidation, corrosion, and mechanical wear. Contact surfaces are cleaned and treated where necessary.

Step 4 – Firmware and Hardware Revision Verification: The hardware revision and any embedded firmware version are documented and cross-referenced against known compatibility matrices for AC500 CPU and I/O combinations. Revision mismatches that could cause communication errors are flagged before dispatch review.

Key Features for System Maintenance

Drop-in Replacement: The GJR2368900R1348 is a direct hardware replacement for the same part number in any compatible AC500 rack configuration. No mechanical modification is required.

No Reprogramming Required: The coupling module operates transparently within the AC500 I/O bus. Replacing a failed unit with a verified equivalent does not require changes to the PLC program, I/O mapping, or HMI configuration. The system resumes operation with the existing application software intact.

No Engineering Reconstruction: Unlike a platform migration, a like-for-like module replacement does not require a system integrator, a FAT/SAT process, or regulatory re-certification in most jurisdictions. Maintenance staff familiar with the existing system can execute the replacement.

Long-Term Spares Strategy Support: For facilities managing multiple AC500 installations, DriveKNMS can discuss structured procurement of multiple units to establish an on-site critical spares buffer. Holding 2–3 units of a high-criticality obsolete module on-site is a standard risk mitigation practice in asset-intensive industries.

Q: Is it safe to use a refurbished coupling module in a live production environment?
A: A refurbished unit that has passed a structured QA process — including capacitor assessment, connector inspection, and functional testing — presents a comparable reliability profile to an aged new unit that has been sitting in a warehouse for 10+ years. The risk of using an uninspected unit from an unknown source is substantially higher. We recommend customers evaluate the QA documentation we provide and make their own engineering judgment.

Q: Can you source other ABB AC500 obsolete components?
A: Yes. DriveKNMS specializes in hard-to-find and discontinued industrial automation components across multiple brands and platforms. Contact us with your full part number and we will advise on availability.
