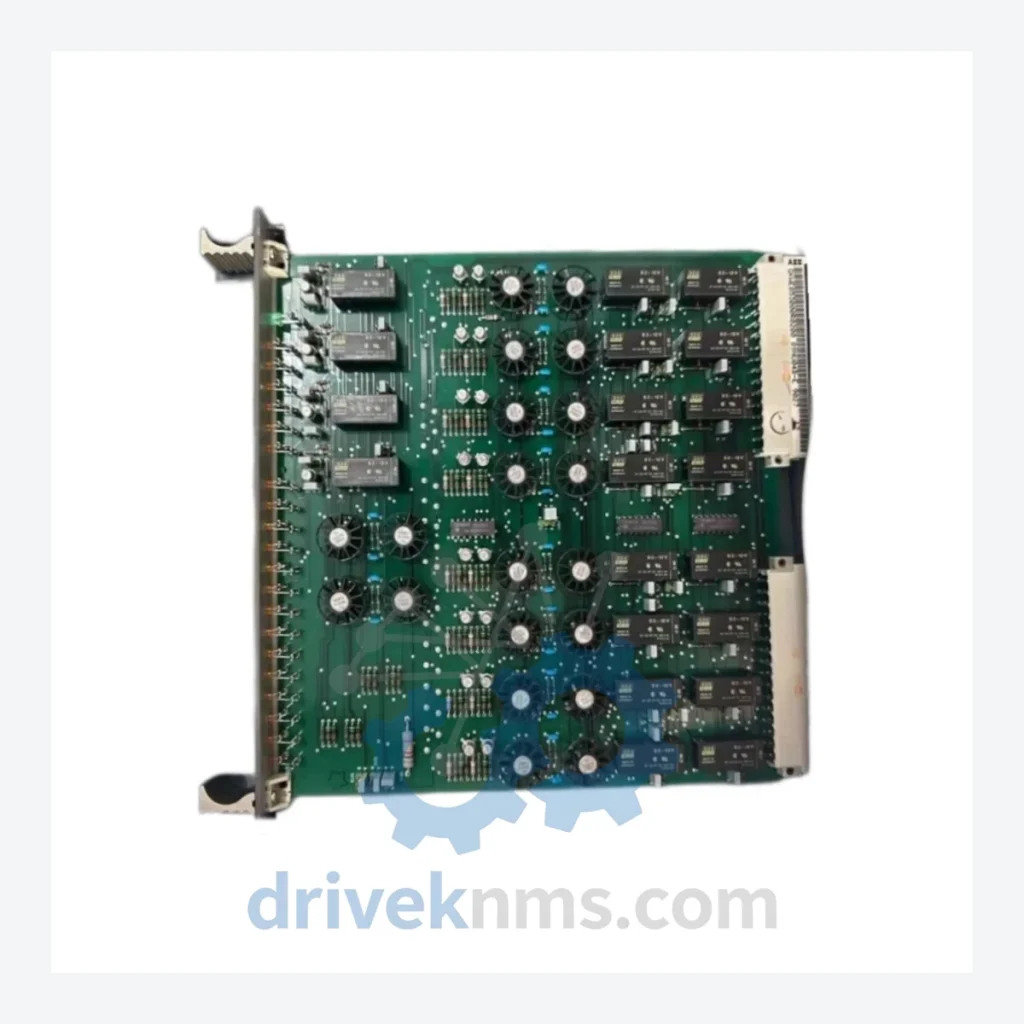

ABB GKW853000R0200 89NU04A-E Control Board – Redundant AC800M Series

Technical Dossier

Product Details And Specifications

ABB GKW853000R0200 89NU04A-E Control Board – Redundant AC800M Series Platform

The ABB GKW853000R0200 89NU04A-E is a high-integrity control board engineered for deployment within ABB's AC800M distributed control system (DCS) architecture. Operating as a core processing and signal-conditioning module, this board manages real-time I/O signal acquisition, logic execution, and inter-module communication within redundant controller configurations. Its design supports fault-tolerant operation through hardware redundancy, enabling seamless bumpless transfer between active and standby processing paths — a critical requirement for continuous process industries operating under IEC 61511 functional safety mandates.

Within the AC800M ecosystem, the GKW853000R0200 89NU04A-E interfaces directly with ABB's PM8xx processor modules and S800 I/O subsystems, forming a tightly integrated control node capable of sustaining Safety Integrity Level (SIL) 2 performance targets. Its compliance architecture aligns with IEC 61508 hardware fault tolerance (HFT) requirements, making it a qualified component for use in Safety Instrumented Systems (SIS) where systematic capability and diagnostic coverage (DC) must be formally documented and validated per IEC 61511 lifecycle phases.

Technical Specifications

Specifications are for reference only, subject to official datasheet. Please verify parameters against your system documentation before installation.

Technical Architecture & Design Principles

The GKW853000R0200 89NU04A-E operates within ABB's redundant controller architecture, where two processor modules execute identical control logic in parallel. The active module continuously synchronizes its memory state to the standby counterpart via a dedicated high-speed synchronization bus. Upon detection of a primary module fault, the standby assumes control within milliseconds — a transfer transparent to the field devices and SCADA layer above.

Fault Detection and Isolation (FDI) is implemented through continuous self-diagnostics at the board level, including watchdog timers, memory integrity checks, and communication path monitoring. The module's Online Diagnostics capability allows maintenance personnel to assess board health without process interruption, supporting the IEC 61511 requirement for proof test interval optimization. The diagnostic coverage (DC) exceeds 90% (ref.), contributing directly to the Probability of Failure on Demand (PFD) calculations required for SIL 2 verification under IEC 61508 Part 2. Mean Time Between Failures (MTBF) exceeding 200,000 hours (ref.) ensures high system availability, a key metric in process safety management (PSM) frameworks for continuous operations.

Industrial Applications & System Context

Within a DCS architecture, the ABB GKW853000R0200 89NU04A-E sits at the controller tier, receiving process variable data from field transmitters via S800 I/O modules, executing regulatory and advanced control strategies, and passing setpoints and commands downstream to final control elements. Data flows upstream to the ABB 800xA operator station via the plant network, enabling real-time visualization and historian logging.

In Emergency Shutdown (ESD) and Fire & Gas (F&G) system architectures, this control board can serve as the logic solver interface, executing pre-validated cause-and-effect matrices that trigger safety actions upon process deviation. Integration with SCADA systems is achieved via standard OPC DA/UA interfaces or Modbus TCP, enabling supervisory oversight without compromising the integrity of the safety layer. For turbomachinery control applications — compressors, gas turbines, steam turbines — the board's sub-10ms response time (ref.) meets the real-time demands of speed governing and surge protection logic. Typical deployment environments include petroleum refining units, LNG liquefaction trains, nuclear auxiliary systems, and offshore production platforms, all governed by IEC 61511 / IEC 61508 functional safety standards.

System Integration & Compatible Parts

The GKW853000R0200 89NU04A-E is designed for integration within the ABB AC800M controller family. Engineers should verify firmware revision compatibility before installation. The following module categories are typically associated with this control board:

• Processor / Controller Modules: ABB PM861A, PM864A, PM866A (AC800M series)
• Backplane / Rack: ABB TB840A, TB842A (compatible termination units)
• Power Supply Modules: ABB SD821, SD822, SD823
• Communication Modules: ABB CI854A (PROFIBUS DP), CI856A (IEC 61850), CI858 (DNP3)
• I/O Subsystems: ABB S800 I/O modules (AI810, AO810, DI810, DO810)
• Firmware Compatibility: Verify against AC800M firmware version and Control Builder M software revision

We recommend submitting your complete system Bill of Materials (BOM) or rack configuration list to our engineering team for compatibility verification prior to ordering. Browse all ABB products on DriveKNMS →

Every ABB GKW853000R0200 89NU04A-E unit processed by DriveKNMS undergoes a rigorous 5-step quality assurance protocol before dispatch:

1. Visual Inspection — Physical damage assessment, corrosion check, and anti-counterfeiting label verification against ABB's authentic part markings.
2. Power-On Functional Test — Signal behavior validation, I/O response verification, and output accuracy measurement under controlled bench conditions.
3. Part Number & Revision Verification — Confirmation of firmware version, hardware revision code, and system modification number against ABB's official documentation.
4. ESD-Safe Packaging — Anti-static shielding bags, foam cushioning, and moisture barrier packaging to IEC 61340-5-1 standards.
5. 12-Month Functional Warranty — Covering all functional defects identified under normal operating conditions within the warranty period.

Global logistics via FedEx / DHL / UPS with real-time tracking numbers provided upon dispatch. Export documentation and customs declarations available upon request.

Technical Support from DriveKNMS

• Engineering team available for part selection and system compatibility verification
• Cross-reference service: identify equivalent or replacement modules across ABB product generations
• Firmware version and hardware revision confirmation support
• Test reports and inspection certificates available upon request
• Technical evaluation and recommendation for obsolete or end-of-life (EOL) part substitution
• 24/7 WhatsApp technical consultation: +86 18359293191

Frequently Asked Questions

Q1: What communication protocols does the GKW853000R0200 89NU04A-E support?
The module supports Modbus, PROFIBUS DP, and optionally IEC 61850 depending on the paired communication module. Please confirm your system's communication architecture with our team before ordering.

Q2: How do I confirm compatibility with my existing AC800M system version?
Provide your current PM8xx processor firmware version and Control Builder M software revision. Our engineers will cross-reference against ABB's compatibility matrix and advise accordingly.

Q3: Have refurbished units undergone SIL-relevant functional testing?
All units undergo power-on functional testing and I/O response verification. For SIL-critical applications, we recommend requesting a formal inspection certificate and discussing your proof test requirements with our team.

Q4: Can you provide a test report or inspection certificate?
Yes. Test reports and inspection certificates are available upon request. Please specify your documentation requirements when submitting your RFQ.
