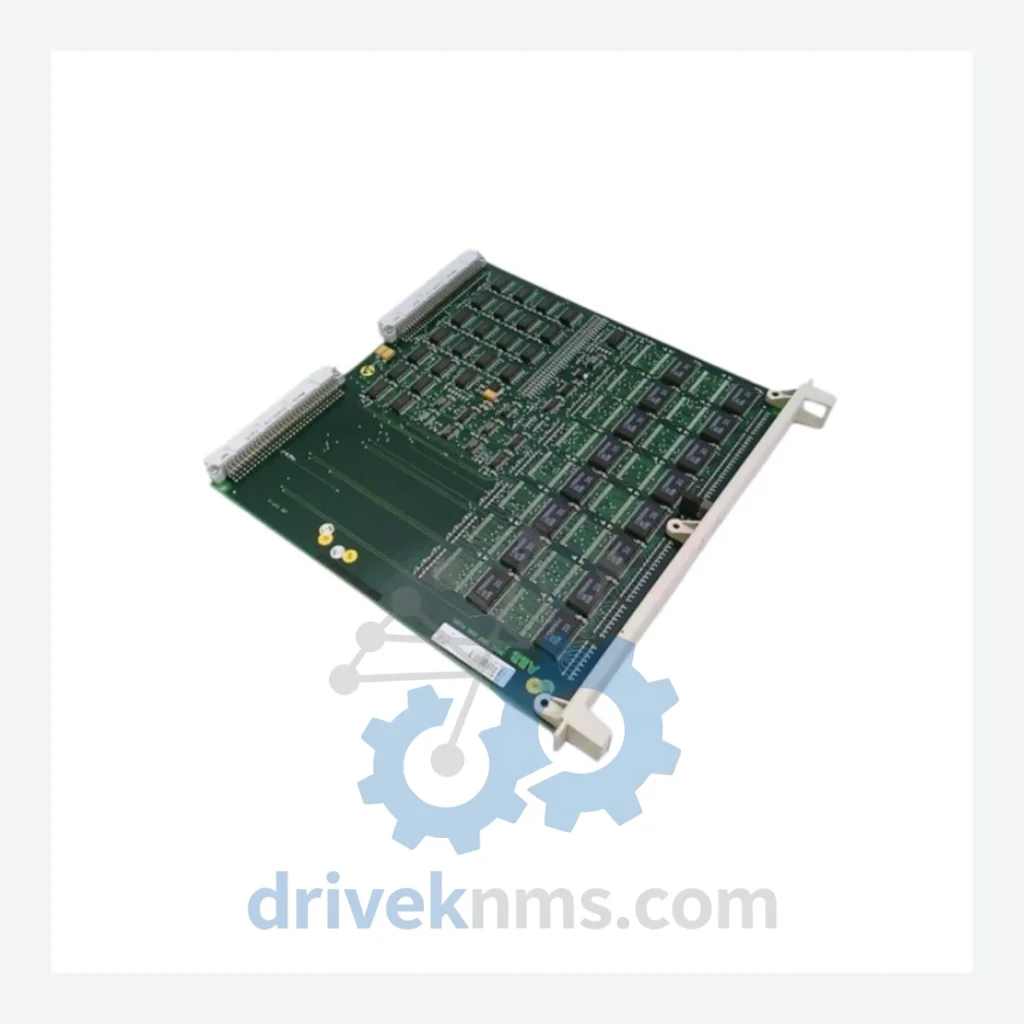

ABB HESG Series Modules – HESG447398R0020

Technical Dossier

Product Details And Specifications

ABB HESG Series Technical Notes

The ABB HESG series represents a core family of distributed control system (DCS) I/O and processing modules deployed across global heavy industry installations, including petrochemical refineries, nuclear power facilities, offshore platforms, and large-scale chemical processing plants. Originally developed as part of ABB's Advant and Master series DCS architecture, HESG modules operate within the ABB Master Bus 300 (MB300) and Advant Controller 400 (AC400) ecosystems. These modules are characterized by their rugged backplane design, deterministic scan cycle performance, and long-term field reliability under continuous 24/7 industrial operation. The HESG447398R0020, specifically, is a precision analog input module designed for process variable acquisition in high-density I/O configurations.

Due to the extended lifecycle of ABB Advant/Master installations — many of which have been in continuous operation since the 1980s and 1990s — HESG series modules remain in active demand for system maintenance, emergency replacement, and lifecycle extension programs at facilities that have not yet migrated to ABB's current 800xA platform.

The Evolution of HESG Architecture

The HESG module family was introduced as part of ABB's Advant OCS (Open Control System) and Master series platforms during the late 1980s. The architecture is built around the Master Bus 300 serial communication protocol, which provides deterministic, token-passing communication between I/O modules and the central processing unit. Early HESG modules used parallel backplane addressing; later revisions introduced enhanced diagnostics, improved EMC shielding, and extended temperature tolerance for harsh environment deployment.

Compatibility across HESG sub-generations is constrained by firmware revision and backplane slot addressing. Modules from the R0001–R0010 revision range may require firmware alignment before substitution with R0020 or later variants. The transition from Advant Controller 110 (AC110) to AC400 introduced changes in module addressing that affect direct substitution. Engineers performing maintenance replacements must verify the hardware revision suffix (e.g., R0020) against the system's hardware configuration database (HCD) before installation.

ABB has officially declared the Advant and Master series as end-of-life (EOL), with no new production of HESG modules. Support has transitioned to third-party MRO suppliers and authorized repair centers. Migration paths lead to the ABB System 800xA with S800 I/O modules, but full migration is capital-intensive, making long-term spare parts sourcing the preferred strategy for most existing installations.

HESG Full Catalog & Functionalities (SKU List)

Analog Input Modules (AI)

• HESG447398R0020: Analog input module, multi-channel, 4–20 mA / 0–10 V process signal acquisition, MB300 bus interface.
• HESG447398R0001: Early-revision analog input module, compatible with AC110/AC400, requires firmware verification before substitution.
• HESG447398R0010: Mid-revision analog input, improved EMC filtering over R0001, direct field replacement for most AC400 installations.
• HESG447399R0001: High-density analog input module, 16-channel configuration, used in high I/O count process units.
• HESG447399R0020: Revised high-density AI module, enhanced diagnostics, extended operating temperature range.

Analog Output Modules (AO)

• HESG447400R0001: Analog output module, 4–20 mA current output, used for control valve and actuator positioning signals.
• HESG447400R0020: Revised analog output, improved output stability and short-circuit protection, direct replacement for R0001 in most configurations.

Digital Input Modules (DI)

• HESG447401R0001: Digital input module, 24 VDC, 16-channel, used for discrete process status signals and limit switch monitoring.
• HESG447401R0020: Revised DI module, enhanced optical isolation, improved noise immunity for field wiring environments.
• HESG447402R0001: Digital input module, 120 VAC input compatible, used in legacy panel interface applications.

Digital Output Modules (DO)

• HESG447403R0001: Digital output module, relay output type, 16-channel, used for solenoid valve and motor starter control.
• HESG447403R0020: Revised relay output module, increased contact rating, improved arc suppression.
• HESG447404R0001: Digital output module, transistor (solid-state) output, 24 VDC, high-speed switching applications.

Communication & Processor Modules (CPU / COMM)

• HESG447405R0001: MB300 bus communication adapter module, interfaces I/O clusters to the AC400 controller backplane.
• HESG447406R0001: Processor/controller module for local I/O cluster management, handles scan cycle coordination and diagnostics reporting.
• HESG447407R0001: Power supply interface module, distributes 24 VDC backplane power across the I/O rack, includes overcurrent protection.
