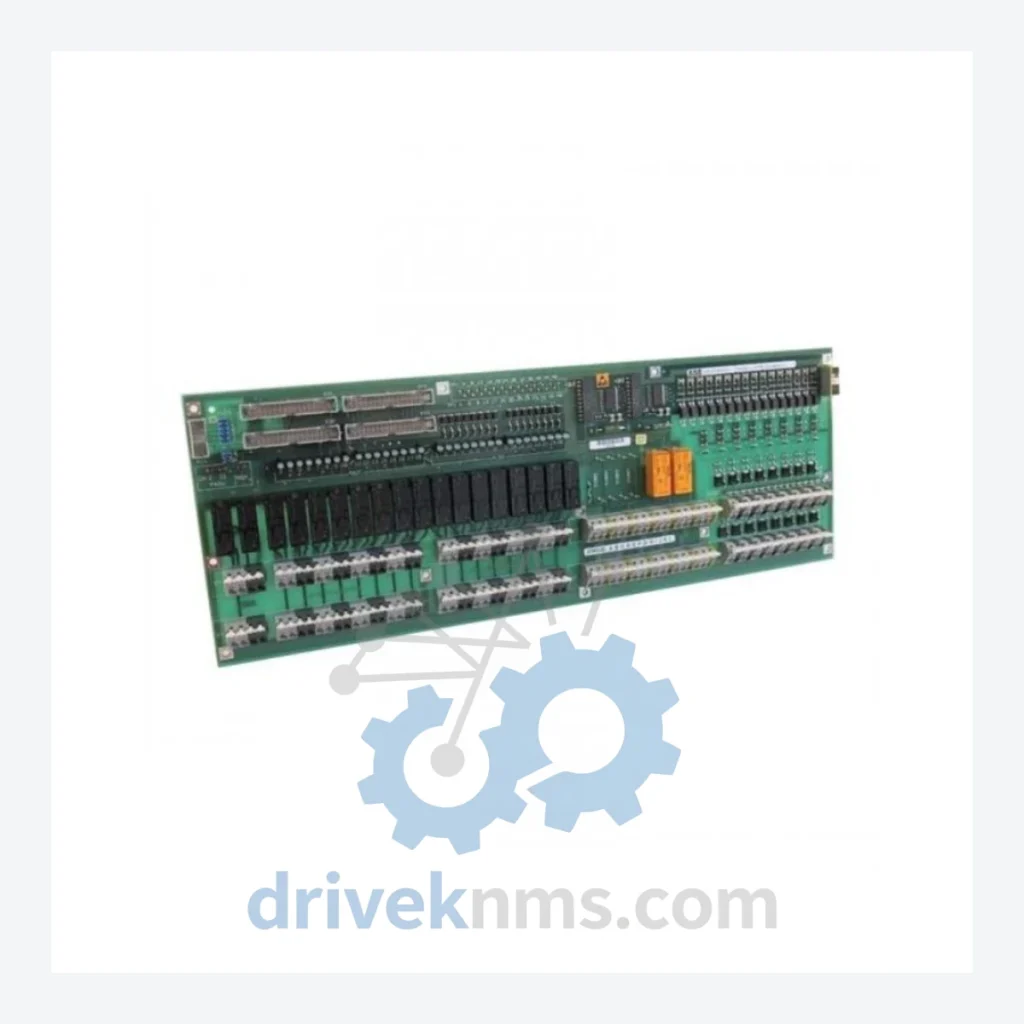

ABB UNITROL F Modules: HIEE405246R0001 UNS0867a-P V1

Technical Dossier

Product Details And Specifications

ABB UNITROL F Series Technical Notes

The Evolution of UNITROL F Architecture

ABB's excitation control product line evolved through several distinct generations. The earliest analog regulators (UNITROL 1000, UNITROL 2000) used discrete analog circuitry with limited diagnostic capability and no fieldbus integration. The transition to the UNITROL D series introduced microprocessor-based control but retained hybrid analog/digital signal paths. The UNITROL F generation, introduced in the mid-1990s and refined through the 2000s, represented a full migration to digital signal processing with a modular VME-style card-cage backplane. Key architectural features include a dedicated CPU card (UNS0880), a separate I/O extension bus, isolated analog input conditioning, and a serial communication interface for SCADA integration via MODBUS or proprietary ABB protocols.

Compatibility across UNITROL F sub-generations is governed by the UNS08xx card family numbering. Cards sharing the same UNS08xx base designation are generally backward-compatible within the same chassis generation, but hardware revision suffixes (e.g., -P, V1, V2) indicate PCB layout or firmware changes that may affect interchangeability. Integrators must verify the revision matrix before substituting cards. The UNITROL F has entered the mature/end-of-active-production phase; ABB's current platform is the UNITROL 6800/6080 series. However, the UNITROL F remains in active service at thousands of sites globally, and long-term maintenance support — including spare card sourcing, repair, and functional testing — remains a critical operational requirement for asset owners committed to extended service life beyond OEM support windows.

UNITROL F Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the ABB UNITROL F excitation system platform. Each entry reflects a distinct functional card or assembly within the UNS08xx module family.

Controllers & CPU Cards

• UNS0880a-P: Main CPU card; digital AVR control processor with real-time regulation loop.
• UNS0880b-P: Revised CPU card; updated firmware ROM and expanded diagnostic register set.
• UNS0881a-P: Redundant CPU module; hot-standby configuration for high-availability excitation systems.

I/O Extension & Signal Conditioning Cards

• HIEE405246R0001 UNS0867a-P V1: I/O extension card; expands analog and digital I/O capacity on the UNITROL F backplane.
• UNS0867b-P: Revised I/O extension card; updated isolation barrier and improved EMC performance.
• UNS0868a-P: Analog input card; 8-channel isolated voltage/current measurement for generator feedback signals.
• UNS0869a-P: Analog output card; 4-channel isolated DAC for field current reference and limiter outputs.
• UNS0870a-P: Digital input card; 16-channel optocoupler-isolated DI for protection relay and breaker status.
• UNS0871a-P: Digital output card; 16-channel relay output for AVR mode switching and alarm annunciation.

Communication & Interface Adapters

• UNS0875a-P: Serial communication card; MODBUS RTU/ASCII interface for DCS/SCADA integration.
• UNS0876a-P: Fieldbus adapter card; PROFIBUS DP slave interface for plant automation networks.
• UNS0877a-P: Ethernet communication card; TCP/IP interface for remote monitoring and parameter access.

Power Supply Modules

• UNS0860a-P: Primary power supply card; AC/DC conversion for UNITROL F card-cage internal bus.
• UNS0861a-P: Redundant power supply card; hot-swap secondary PSU for uninterrupted excitation control.
• UNS0862a-P: Auxiliary power card; isolated 24 VDC output for external transducer and relay coil supply.

Measurement & Protection Cards

• UNS0872a-P: PT/CT measurement card; high-accuracy RMS measurement of generator terminal voltage and current.
• UNS0873a-P: Limiter and protection card; under-excitation limiter (UEL), over-excitation limiter (OEL), and V/Hz protection.
• UNS0874a-P: PSS (Power System Stabilizer) card; supplementary stabilizing signal injection for grid damping improvement.

Quality Control for the UNITROL F Range

The UNITROL F card-cage uses a proprietary backplane bus for inter-card communication. Standard bench power-up testing is insufficient to validate card functionality in isolation. DriveKNMS applies a dedicated test protocol for UNITROL F modules:

• Backplane bus simulation: Each card is tested under a hardware backplane emulator that replicates the UNITROL F internal bus timing and voltage levels, confirming correct card initialization and register communication.
• Analog channel calibration verification: For measurement and I/O cards (UNS0867, UNS0868, UNS0872), all analog channels are verified against NIST-traceable reference standards at the rated input range.
• Isolation resistance test: Channel-to-channel and channel-to-chassis isolation is measured at 500 VDC to confirm integrity of optocoupler and transformer isolation barriers.
• Thermal soak: Cards are operated at 55°C ambient for a minimum of 4 hours to screen for latent component failures consistent with field operating conditions in generator excitation panels.
• Firmware version logging: CPU and communication cards are read for firmware version and logged against the shipment record to allow the end-user to assess compatibility with their installed UNITROL F system revision.
